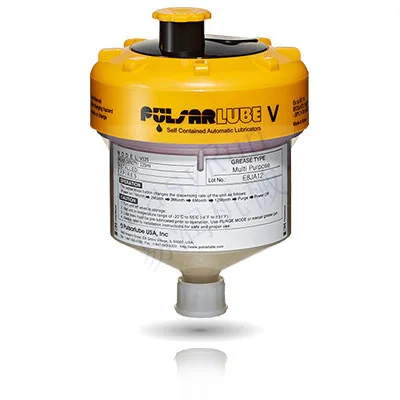

125cc & 250cc Electro Chemical type Single point Automatic Grease Lubricator Pulsarlube V ( Variable Timer LCD Unit ) |

125cc & 250cc Electro Chemical type Single point Automatic Grease Lubricator Pulsarlube V ( Variable Timer LCD Unit )

Specifications

Non flammable Nitrogen gas used
Easy to change setting periods
User friendly LCD display
Oil can be filled
Transparent body

Lubricator type

Electro chemical type single point automatic lubricator for industrial use.
( Variable timer LCD unit )

Overviw

For lubrication maintenance, Pulsarlube V is most easy single point automatic grease lubricator operated by electro chemical reaction.
The Pulsarlube V's pro-logic microprocessor chip control allows for programming
of the unit to be as simple as pressing a single button. The Pulsarlube V operates on the principle of
inert Nitrogen (N2) gas generation through the use of an electrolyte and electrical energy.
Pressure is generated intermittently above the piston which delivers a fresh and precise
amount of lubricant to your critical rotating equipment. The Pulsarlube V is also certified for
"intrinsic safety" Ex ia IIC T4 for use in hazardous areas.

Specifications
Gas Type: Nitrogen (N2) Gas
Gas Generating Method: Electrochemical
Housing Design: Transparent Plastic
Capacity: 125 & 250cc
Remote Installation Distance: Max. 1m (3ft) with 8mm (5/16”) O.D. tube
Operating Indicator: “OPER” blinks on LCD
Available Dispensing Periods: 1, 2, 3, 6, 12 months & Purge (P)
Operating Pressure: Max. 5kg/cm2 (70psi)
Operating Temperature Range: -20°C~55°C (-4°F~131°F)
Rating / IP Code: Ex ia IIC T4 / IP54
Packaging: 10 Units/Case

Benefits
Programmable from 1-12 months with the simple press of a button
Large user friendly LCD display
Microprocessor controlled to ensure the most accurate dispensing rate
Reprogrammable at any time if necessary
Reduced inventory, six dispensing rates available
Transparent for easy inspection at a glance
