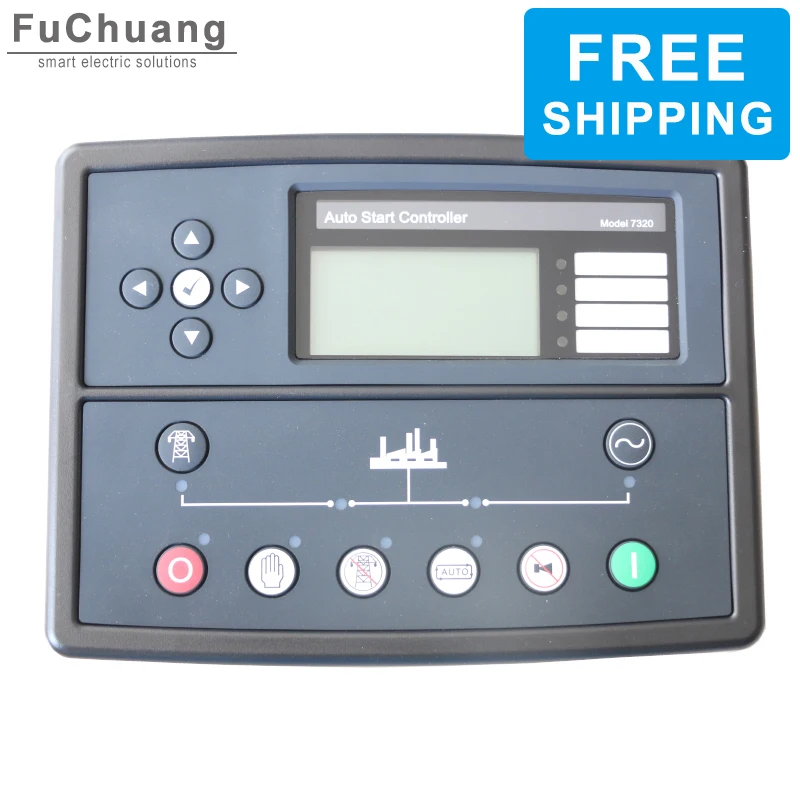

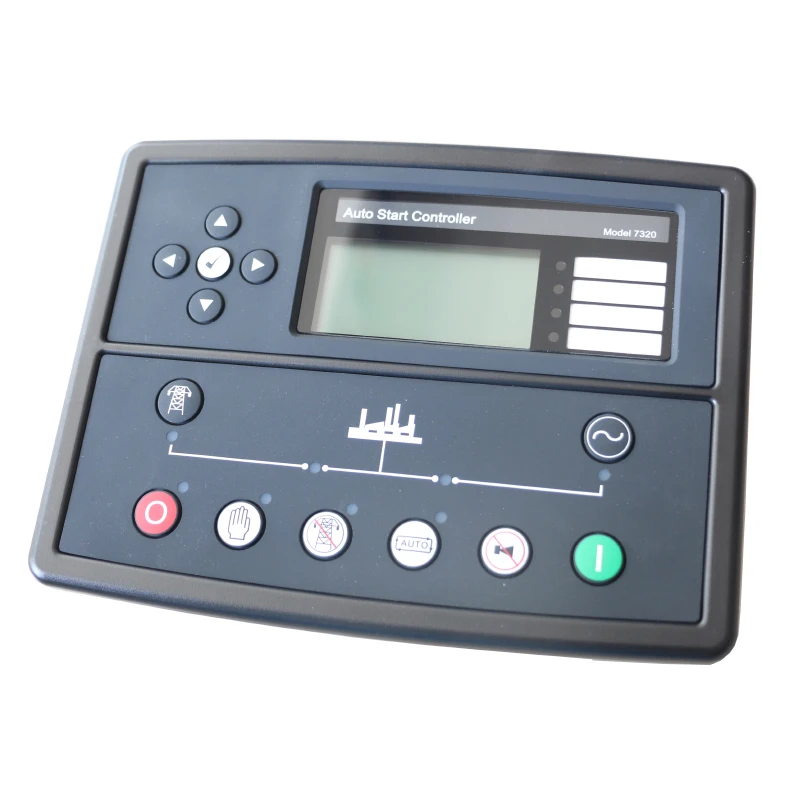

Free Shipping DSE7320 Generator Spare Parts ATS controller DSE 7320 Automatic Remote LCD Display Auto Generation Controller

1) Continuous voltage rating: 8 to 35 V Continuous.
2) Cranking Dropouts: Able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries. Leds and backlight will not be maintained during cranking.

3) Maximum operating current: 340mA at 12 v, 160mA at 24V
4) Maximum standby current: 160 ma at 12 V. 80mA at 24V
5) Charge Fail/ Excitation Range: 0 v to 35 v
(Mains utility)
6) Voltage Range: 15v- 333v ac (L-N)
7) Frequency Range: 3.5 Hz to 75Hz

OUTPUTS
8) Output A(fuel): 15A DC at supply Voltage
9) Output B (Start): 15A DC at supply Voltage
10) Output C & D: 8A 250V ( Volt free)
11) Auxiliary outputs e,f,g,h: 2A DC at supply voltage

Generator
12) Voltage Range: 15 v -333v 72Hz
13) Frequency Range: 3.5 Hz to 75Hz

Magnetic Pick up
14) Voltage Range: ± 0.5v to 70v
15) Frequency Range: 10000 Hz (max)
