Huepar 5 Lines 2D Cross Line Red Beam 360 Self-leveling Manuel Mode Laser Level Indoor Outdoor Tool With Horizontal and Vertical

Huepar 5 Lines 2D Cross Line Red Beam 360 Self-leveling Manuel Mode Laser Level Indoor Outdoor Tool With Horizontal and Vertical

Specifications:

Laser Beam Color:Red
Type:5 Lines
Laser Class:Class 2(IEC/EN60825-1/2014), output power <1mW
Laser Wavelength: 635 nm
Leveling Accuracy: ±3mm/10m
Leveling/Compensation Range:4°±1°
Working Distance (Line):30m,up to 50m with laser reveiver
Operating Time:10-12 hourswith all laser beams on
Spread Coverage: H360°/ V130°
Power Source: 4×˝AA˝ , >1500mA (do not include)
IP Rating:IP54, waterproof, dustproof and shockproof,reliable and tough.
Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)
Storage Temperature Range: -4℉- 158℉(-20℃-＋70℃

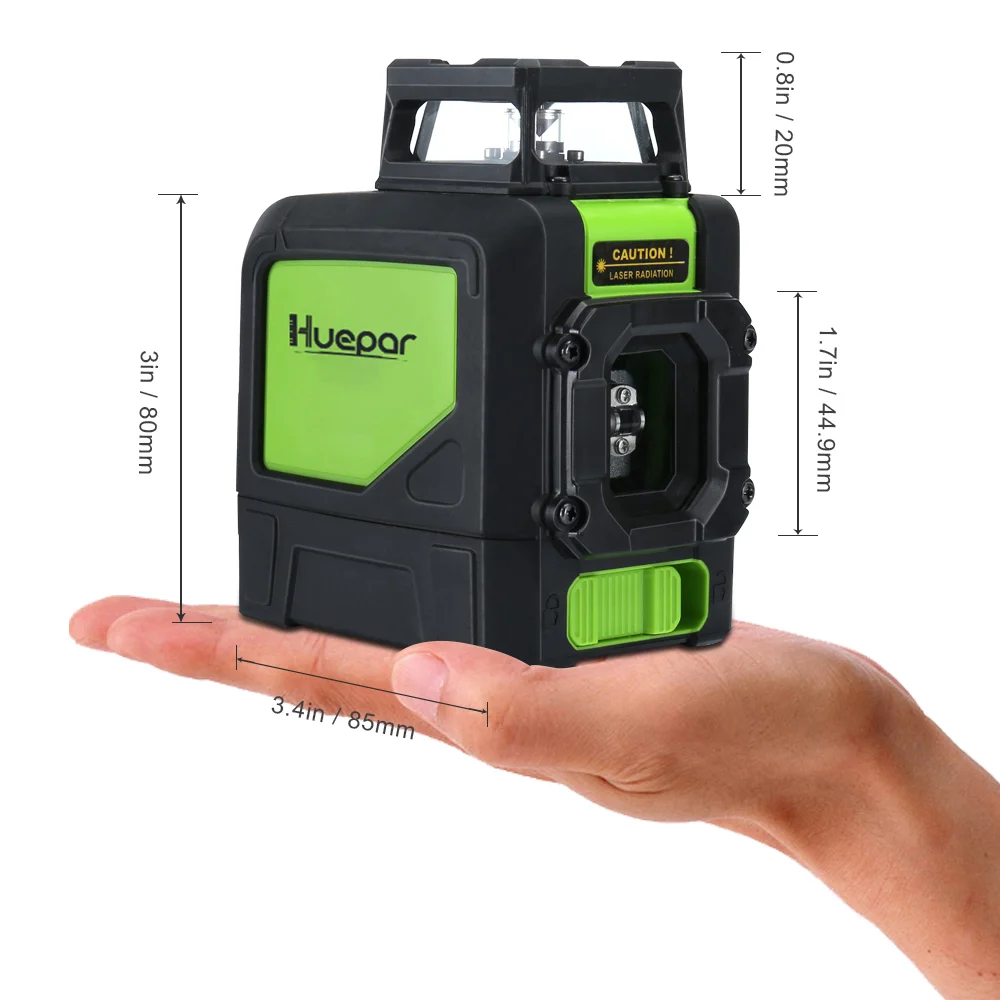

Size: 8.5x10 cm(3.4"x3.8")

Warning:
Avoid direct exposure of the laser beam to the eyes.

The laser would be affected by strong sun light when work outside

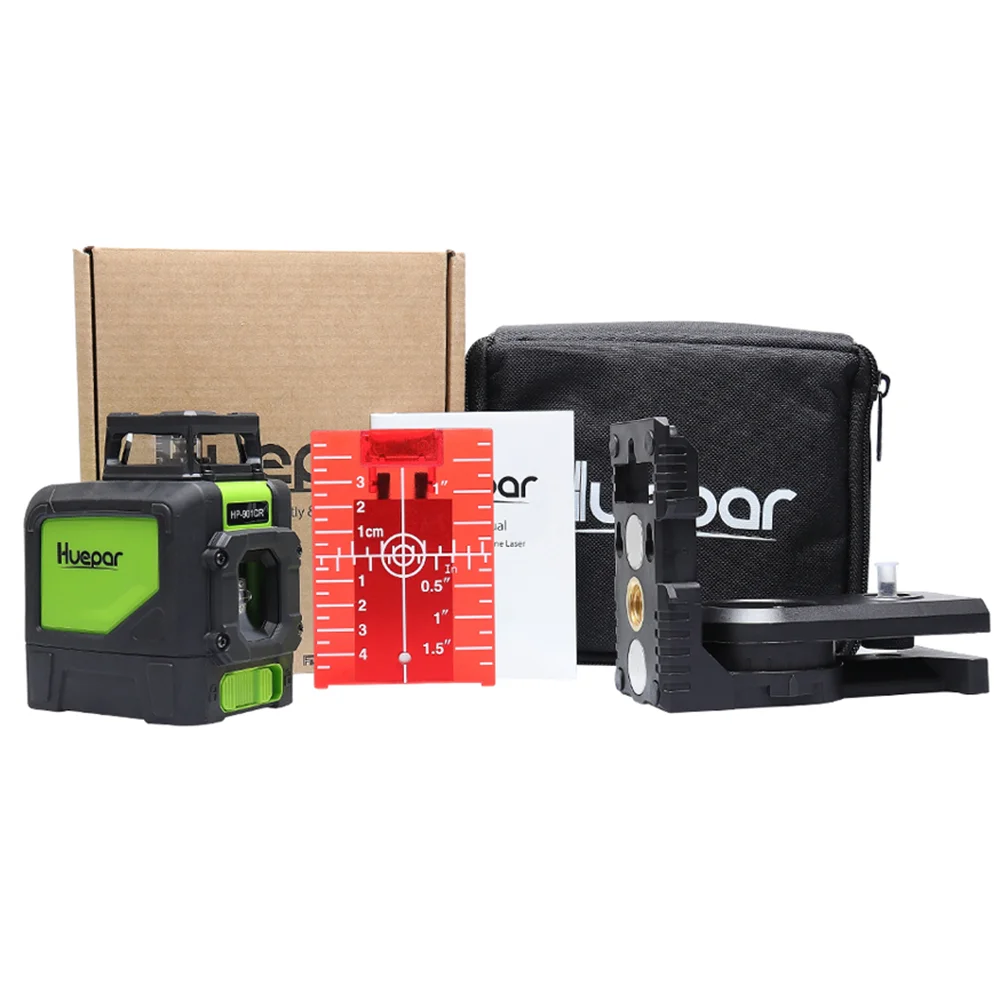

Items in the Package:

1 X Huepar 901CR laser level( No including battery )

1 X Magnetic pivoting Base
1 X Laser target
1 X Cloth case
1 X English User's Manual

Features:

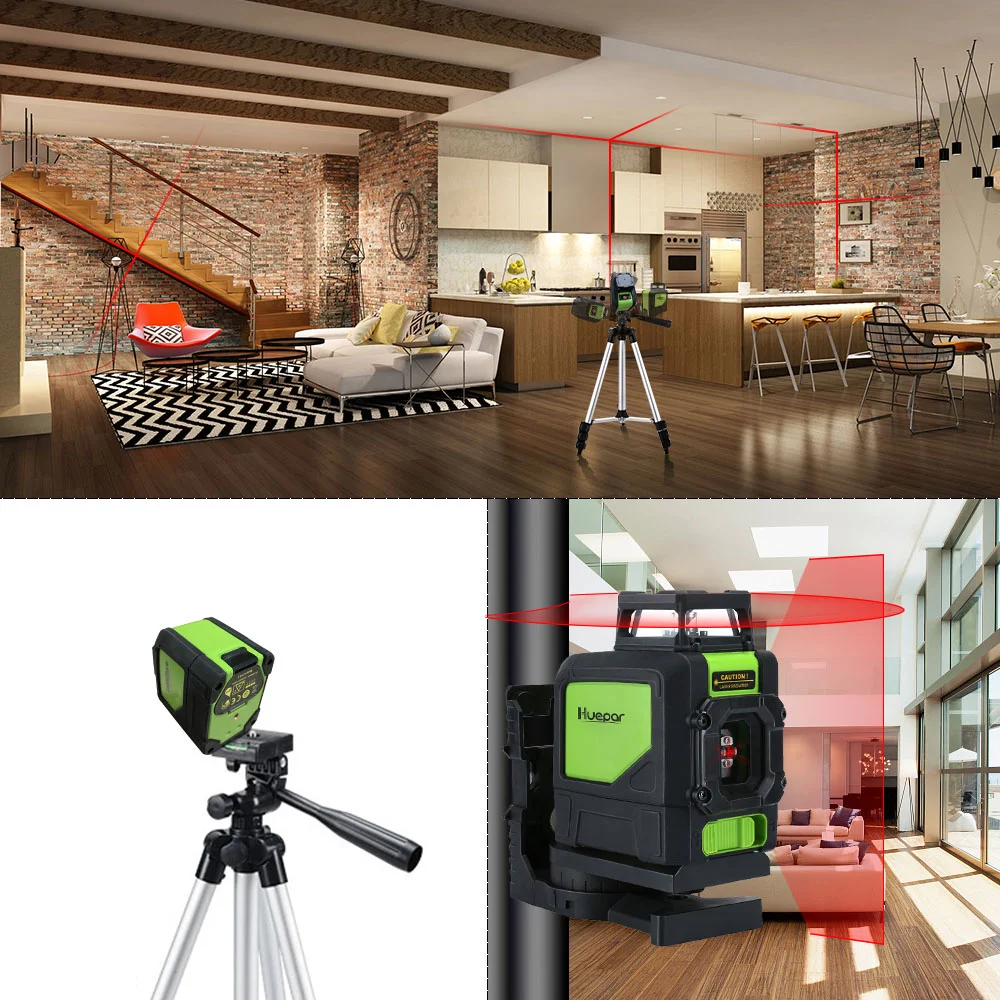

✿Precisely project vertical bright red laser line, 360 °horizontal line and cross lines. A professional positioning tool for house fittings, Doors and windows installation, Wall design, House building.

✿Equipped with 360 magnetic pivot bracket mounts for easily fixing on metal surfaces, Which meets your various measuring jobs

✿IP45 protective design and TPR soft plastic surrounded the item body make it more durable and robust, dust-proof, water-proof and splash-resistant

✿Laser line visible within 30M with 2-Pulse mode for both indoor and outdoor use.

• Accurate Positioning - In addition to providing precise and flexible alignment of vertical, horizontal and cross lines, this cross-line laser with tilting magnetic mount can project a 360 ° horizontal line to satisfy your various survey needs

• Fast Switch Between 2-Pulse Mode - Simply turn it on to enter the 1-pulse mode which is better for indoor use for it is characterized by the bright and clear laser. Press and hold the switch under the unlocked state to enter the 2-pulse mode which is suitable for outdoor use, the laser brightness varies with the intensity of the sun light

• High Precision and Self-leveling - Horizontal / Vertical Accuracy: ± 0.3mm /1m. Leveling and self-leveling Compensation Range: 4 °± 1 °, which is under such situation that when it's tilted to less than 4 degrees; If it's tilted to more than 4 degrees, the laser will flash to indicate an out-of-level condition and it need to be leveled manually

• User-friendly Design - Covered with TPR soft plastic to be durable and robust IP54 protective design, dust-proof and splash-resistant, which can be proved in harsh work environment. Thanks to the powerful laser diode the laser line is clearly visible

• Integrated 1/4 inch Thread & Easy Operation- Fits all conventional tripods for hands free leveling and soft grip for high and more comfortable hold; one button operation for ease of use, idea for experts and beginners

Two modes of use, with lock design, reduce losses and lock the movement.

Self-leveling mode:

Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

Manual mode:

Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

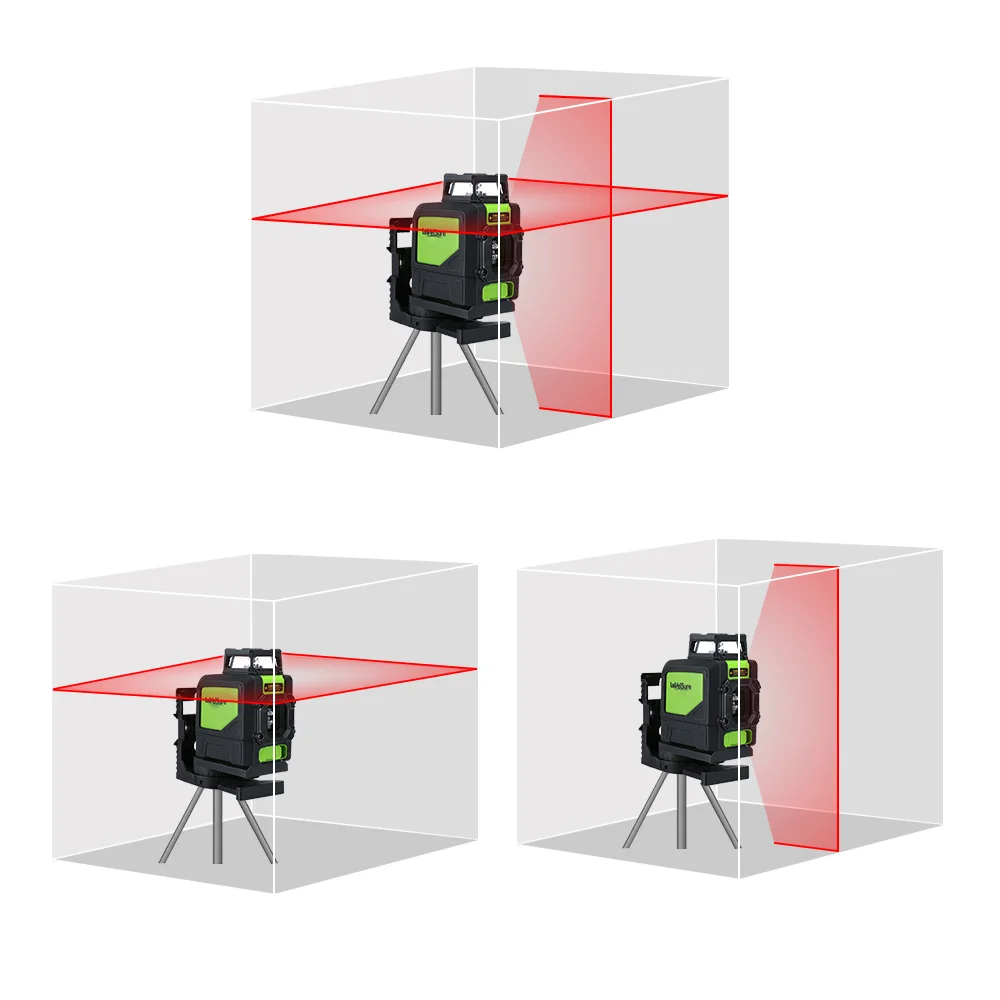

Three line switching function
Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence
360° cover horizontal line and 130° vertical line (H360°/V130°)

Pulse Mode：
Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.
When outdoor work is required (the receiver needs to be purchased separately,  the laser receiver LR510 can receive pulses
The receiver frequency is 10khz and the Huepar brand is the best pairing.

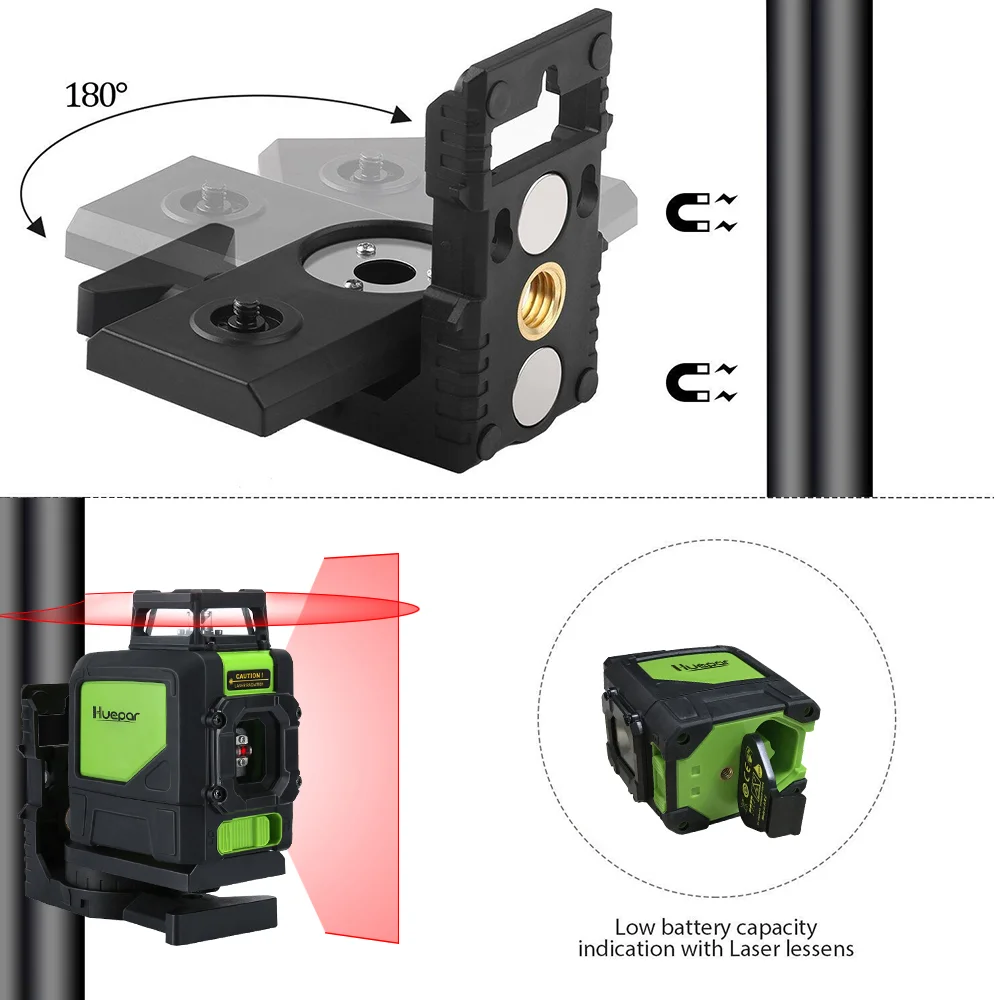

Various kinds of fixing method:

Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 180-degree as you like.
It can also accepts a standard tripod screw to do height adjustment.

How to power ON:Short press the power key or slide locking switch to turn the laser tool ON.

How to switch the line :After power on, short press the power switch once a time,the laser tool will project horizontal line,vertical line and cross line in turn.

How to turn the pulse mode ON:After power on,long press the the power key,when the blue light is on,the pulse mode is on.

How to power OFF:Lock the pendulum before short pressing the power button to turn the laser tool OFF.
