Features:

1. The lightest 1s 75mm brushless whoop, powerful and efficiency.

2. VTX power switchable 25mw~200mw.

3. The lightest 1s AIO 5IN1 F4 flight controller. Low profile canopy design.

4. The new EX0802 motor adopts an integrated outer rotor design, which is compact in structure and more durable.

5. The newly designed highly integrated Diamond F4 flight controller, integrated OSD, Dshoot ESC, 2.4G SPI receiver (support external reception), galvanometer, 5.8G VTX (25-200mw switchable), etc.

Description:

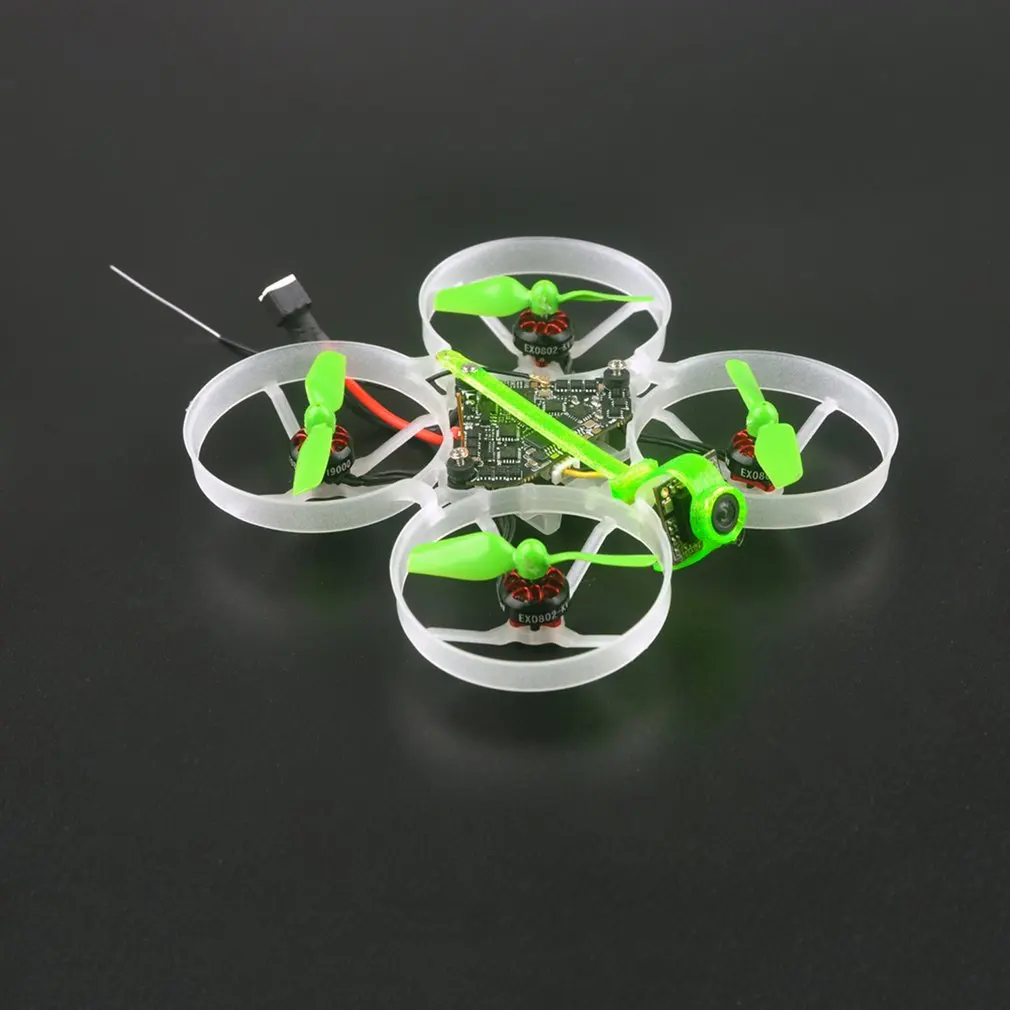

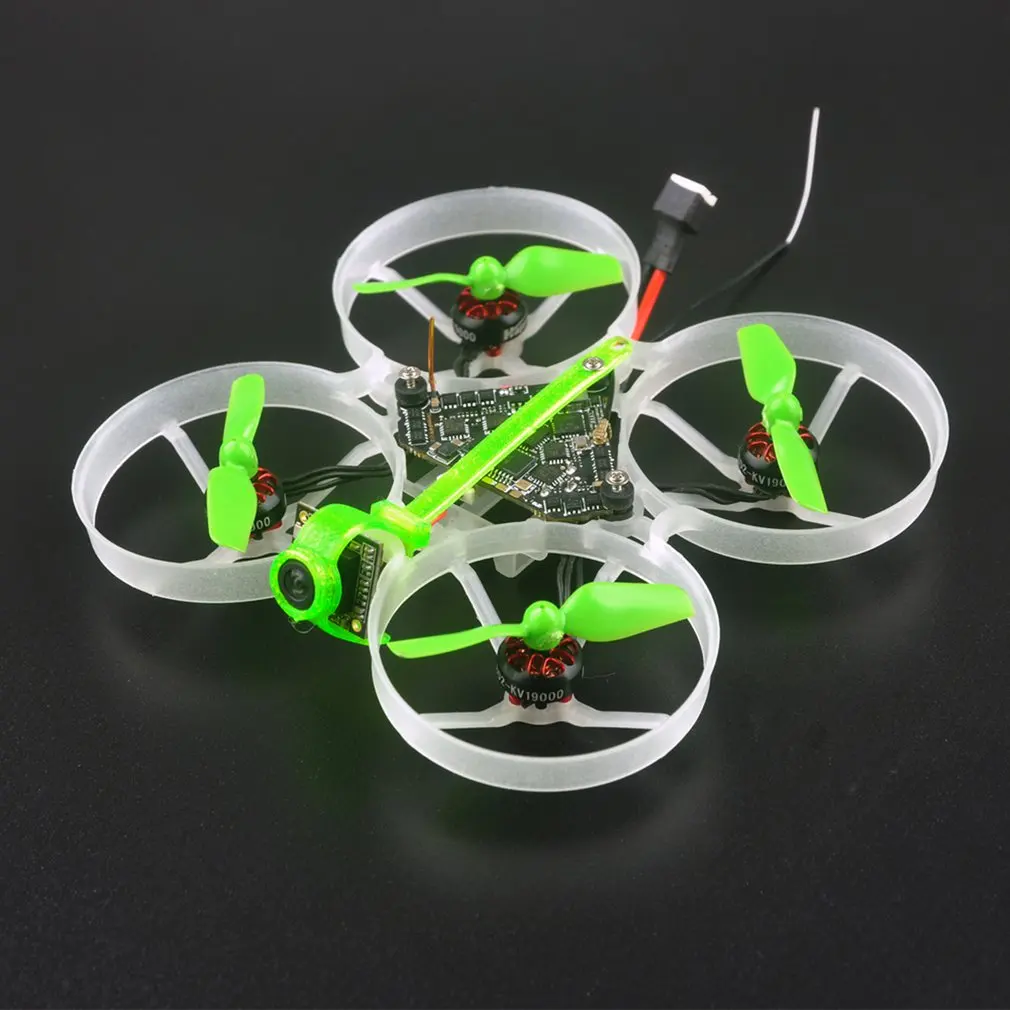

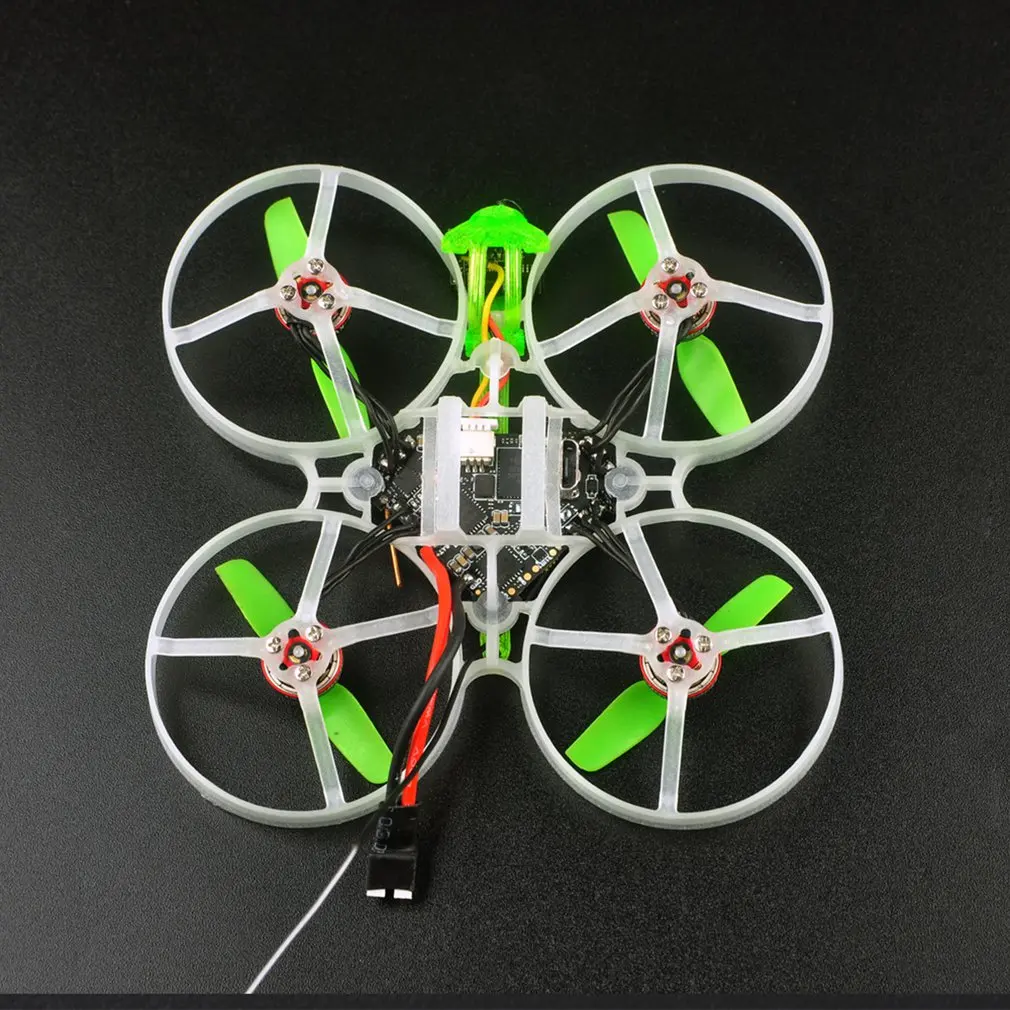

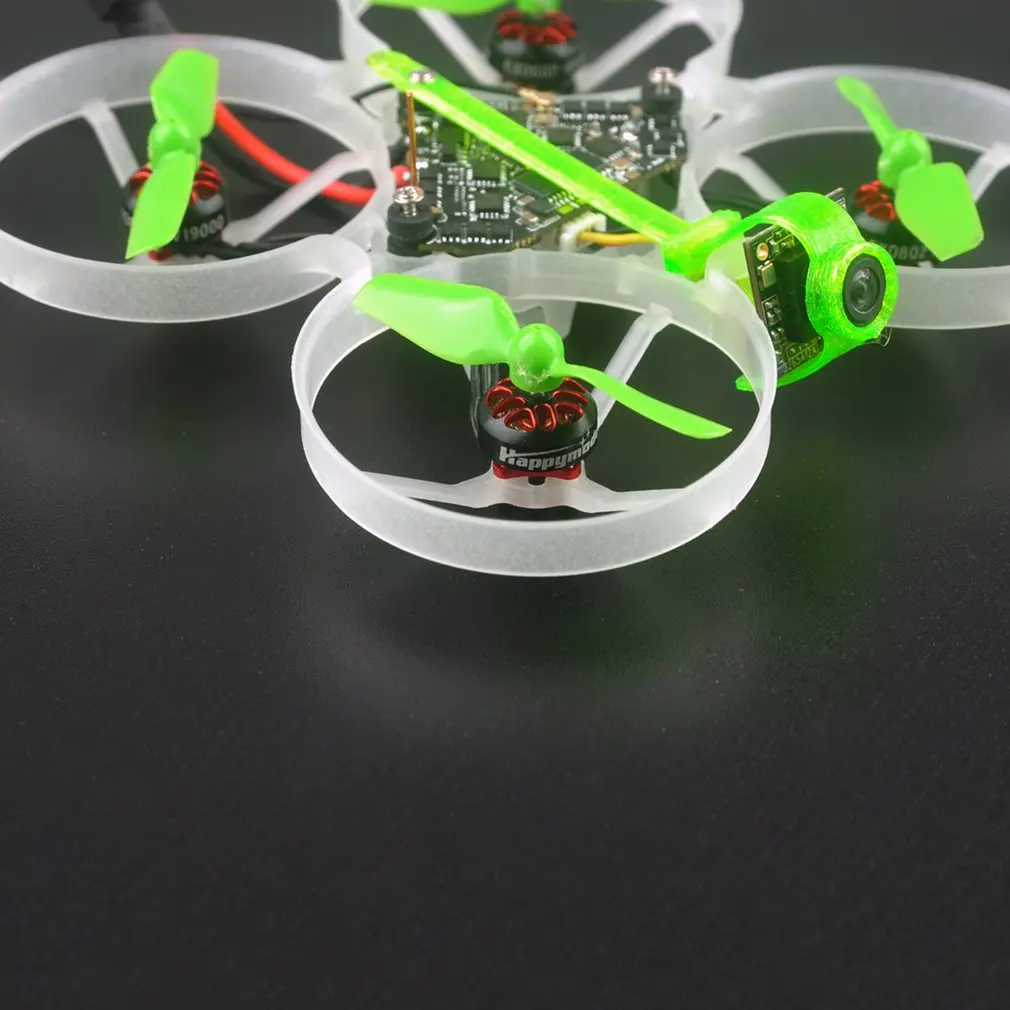

Moblite7 is an ultra-light 1s 75mm wheelbase indoor Whoop traversing machine, and with 1s 650mah lithium battery, it can last up to 8 minutes.

Specifications:

Brand: Happymodel

Item Name: Moblite7 1S 75mm ultra light brushless whoop

Wheelbase: 75mm

Size: 97mm*97mm*25mm

Weight: 19.5g (without battery)

Weight: 36g(with Original 1s 650mah Lipo battery)

Motor:

Mode: EX0802 19000KV

Configu-ration:9N12P

Stator Diamter: 8mm

Stator Length: 2mm

Shaft Diameter:Φ1mm

Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm

Weight(g): 1.7g

No.of Cells(Lipo):1S only

Flight controller:

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR

(Flysky SPI RX version) DiamondF4 FS FC Firmware target: CrazybeeF4FS

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Original whoop size compatible

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Onboard 4in1 ESC:

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_50_REV16_8.HEX

Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version:

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model

Channels: 8ch

Failsafe support

No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky SPI receiver Version:

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference (Transmitter and receiver 1 m from the ground): 200~300m

Failsafe support

Onboard 5.8g VTX:

Output power: 25mw~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels(include Race band)

Smartaudio ready

Runcam Nano4 Lite:

Model: RunCam Nano4 Lite

Image Sensor: 1/3" CMOS

Horizontal Resolution: 800TVL

Lens: 2.1mm(M8) FOV 160°

Signal System: PAL/NTSC Non Switchable

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 170mA@5V 180mA@3.3V

Housing Material: ABS

Net Weight: 1.0g

Dimensions: L14mm*W12mm*H9mm

Lipo Battery:

Capacity:650mAh

Voltage:3.8v

Continuous Discharge Rate: 30C

Instantaneous discharge rate: 60C

Size: 60mmx18mmx8mm

Weight: 16g

Connector: PH2.0

Package Included:

1* 75mm Frame

1* DiamondF4 FR built-in SPI receiver (Frsky / Flysky optional)

4* EX0802 KV19000 Unibell brushless motor

1* HQPROP 40MMX2 propeller(4cw+4ccw)

1* Runcam Nano4 Lite

1* Built-in 5.8G 40ch 25mw-200mw VTX

2* 1s 650mah Lipo battery

1* Propeller disassemble tool

1* Screwdriver

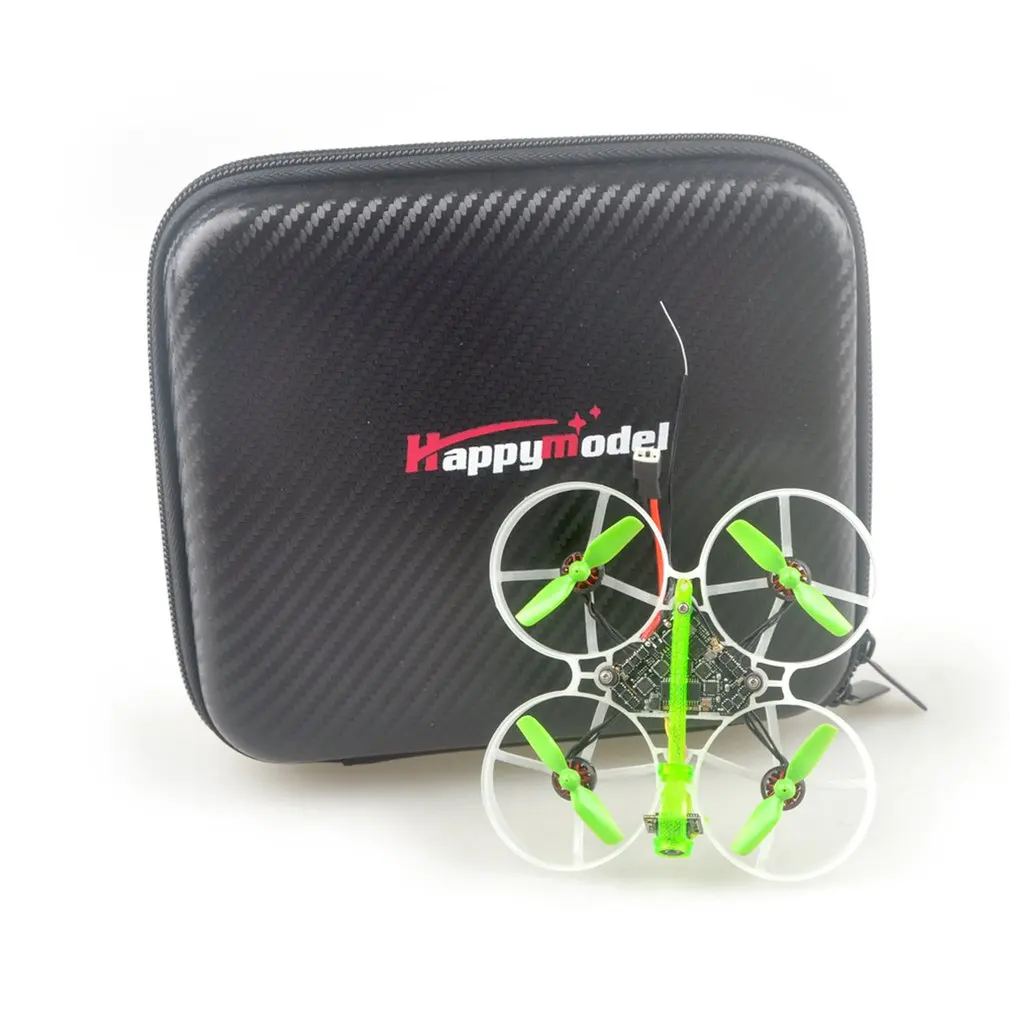

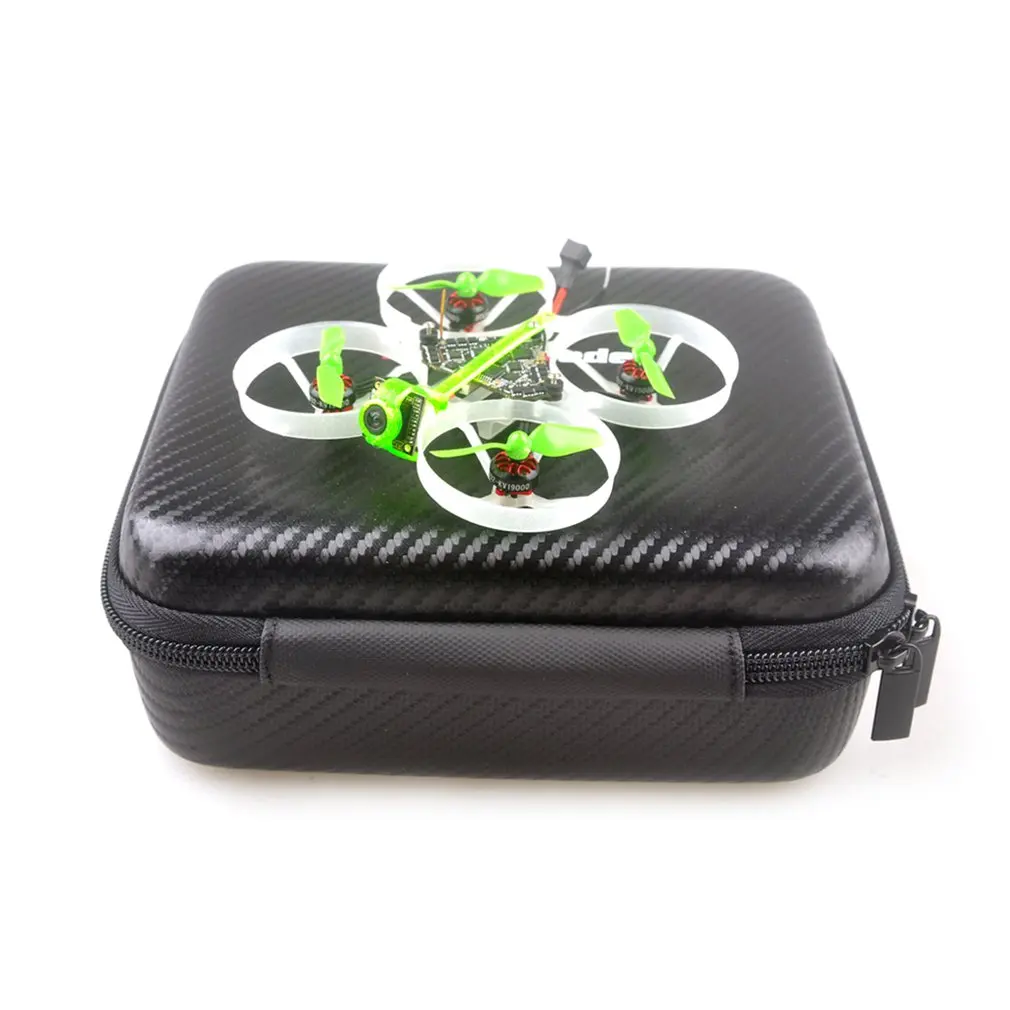

1* Happymodel Carry case

Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
