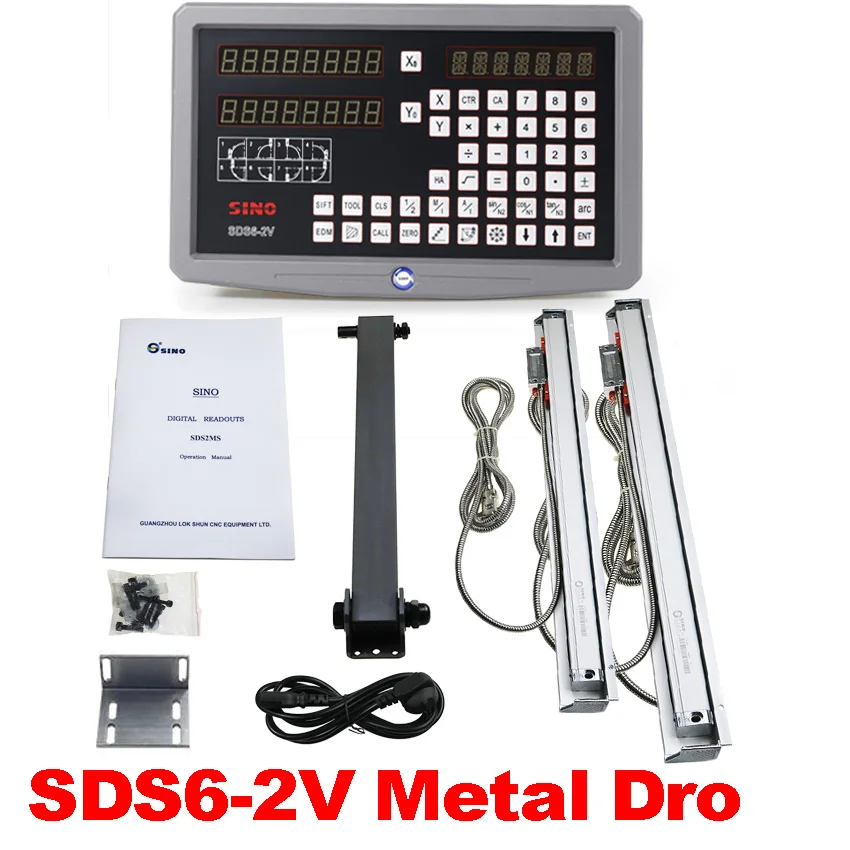

SINO Dro Digital Readout Metal SDS6-2V Set with 2PCS KA300 5U Linear Scales 120 170 220 270 320 370 420 470 520 570 620 670 720
Описание товара
2 Axis Dro Set Digital Readout System Display Metal SDS6-2V and 2 PCS 5u linear optical ruler dimension 70-1020 for lathe/mill machine
Welcome to the Manufacturer of Digital Readout Linear Scales Store
Dear buyer, please note:
1. The order are one new dro/digital readout Metal SDS6-2V(2021),smaller, better performance. And 2 pcs 5u KA300 linear scales/encoder/sensor 50-1000mm dimensions. For example: 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm. Choose 2 pcs among them, thanks, when you choose, leave the message, thanks.
2. We can offer you other styles, contact with us, please.
3.The price is not included the duty/tax/Customs clearance fees, hoping you can know it, thanks. We are factory, we can offer good price, good quality.If you order only one 2 axis dro, please confirm your linear scales can work with our 2 axis dro, thanks.
Metal SDS6-2V Dro digital readout display system functions
1:Zero clearing2:Reset3:mm/inch mode4:ABS/INC coordinate conversion5:200sets sub datum6:Power off Memory;7:Center of1/28:Liner error compensation9:Sleepping mode10:Clear 200 sets Sdm datum;11:ABS/INC mode12:Calculator13:Drilling of circumference14:Drilling of oblique line15:Machining of inclined plane16:Machining of circular arc17:Lathe function(match)18:Rectangular lumen gradual processing19:Digital filtering20:Vibration filtering21:Radius /Diameter fucntion22:Lathe function23: Metal SDS6-2VMetal SDS6-2V Dro digital readout display system Parameter1.Voltage Range: AC 80V~250V/50HZ~60HZ2.Acceptable Signal: TTL3. Plug: DB94.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um2 Axis Dro Metal SDS6-2V Advantage1. It is new 2 axis dro Metal SDS6-2V(2021),smaller, better performance. Take less space on your machines.2. We are factory, price and quality are good, can quick solve your problem, saving much tims.3. can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.4. We offer different type plug suite for different countries if need.5. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.
5U KA300 Linear scals/Linear encoder/Linear sensor/Linear ruler Parameters1. Travel (measuring) length: 0-1020mm2. Plug: DB93. Resolution: 0.005mm(5u)4. Input voltage: 5V5. Grating pitch: 0.02mm (50LP/min)
6. Cable length: 3 Meter
7. Normal size: About 34.5*25
8. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm.9. Moving speed: high speed ruler 120 m/min, Ordinary ruler 60m/min.10. Power supply: +5V + 5%, 80mA.11. Working temperature: 0~45The Signal of KA300 Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor
Pin 2 Black 0VPin 6 Green APin 7 Red 5VPin 8 White B
Installation instructions, just to show
FAQ
Question: How to make payment?Answer: You can make payment by Credit card asVisa, Mastercard, Paypal etc. In Aliexpress, there aremany ways to pay, do not worry about it.Question: If I need 589mm, 780mm, Can I?Answer: Yes, you can, we can offer you, we aremanufacturer, we can customize.Question: I need 1u(0.001mm) and 1200mm, Can I?Answer: Yes, you can, we can offer 1u(0.001mm) and50-3000mm linear scales, please contact us first. Needextra fee.Question: If the goods damaged in delivery, howshould I do ?Answer: When we send you, we checked carefully.If damaged, do not make dispute or negative feedback.Please contact us first, send pictures or video. Wewill help you fix this problem, helpyou repar or sendreplacement. We will help you when the order finished.Question: How to install DRO or Linear scales?Answer: We will send you English user manual inpackage.Anyway, if you have any questions, contact us first.Please. You are satisfied with our products, please leave the5 stars, thanks, if not, we will do our best.
