Miboxer 2.4G DMX512 Master Touch Pane Remote X1/X2/X3/X4/X5 1/2/3/4/5 CH DMX512&RDM Decoder |

Description

Product Parameters: Product Name:  1-Channel Constant Voltage DMX512 & RDM Decoder
Model No.:  D1-CX
Input Voltage: DC12~24V
Output Current: 20A/Channel
Total Output Current: Max 20A
Input Signal: Dmx512, RDM
Occupy 1 DMX Address
Working Temp.: -20~60℃

Product Name:  2-Channel Constant Voltage DMX512 & RDM Decoder
Model No.:  D2-CX
Input Voltage: DC12~24V
Output Current: 10A/Channel
Total Output Current: Max 20A
Input Signal: Dmx512, RDM
Occupy 2 DMX Address
Working Temp.: -20~60℃

Product Name:  3-Channel Constant Voltage DMX512 & RDM Decoder
Model No.:  D3-CX
Input Voltage: DC12~24V
Output Current: 6A/Channel
Total Output Current: Max 18A
Input Signal: Dmx512, RDM
Occupy 3 DMX Address
Working Temp.: -20~60℃

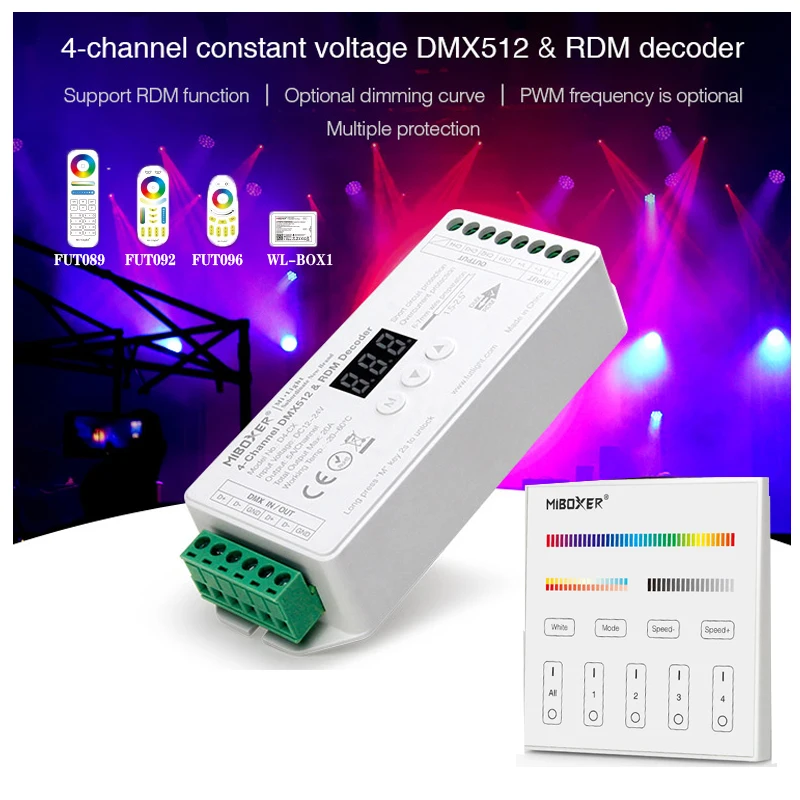

Product Name:  4-Channel Constant Voltage DMX512 & RDM Decoder
Model No.:  D4-CX
Input Voltage: DC12~24V
Output Current: 5A/Channel
Total Output Current: Max 20A
Input Signal: Dmx512, RDM
Occupy 4 DMX Address
Working Temp.: -20~60℃

Product Name:  5-Channel Constant Voltage DMX512 & RDM Decoder
Model No.:  D5-CX
Input Voltage: DC12~24V
Output Current: 4A/Channel
Total Output Current: Max 20A
Input Signal: Dmx512, RDM
Occupy 5 DMX Address
Working Temp.: -20~60℃

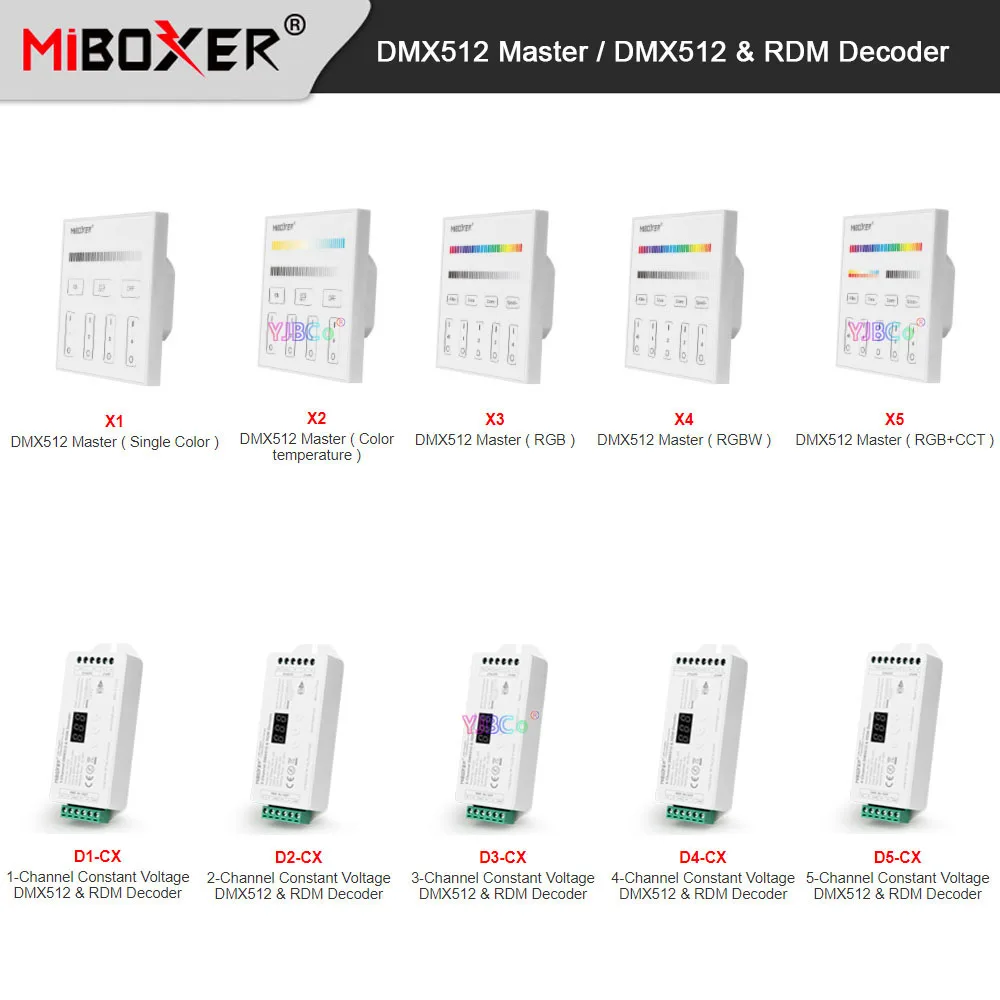

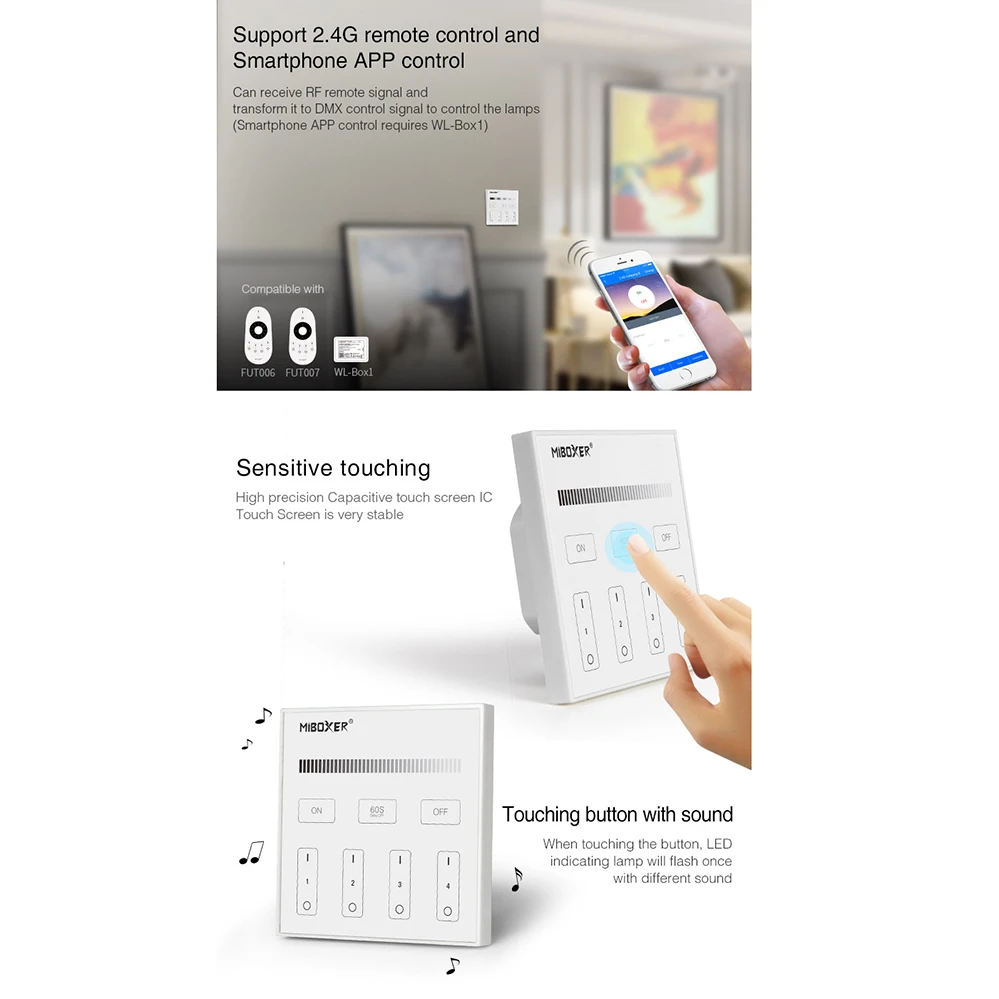

Product Name: DMX512 Master
Model No. :   X1  (Single Color) /  X2  (Color Tempertature) /  X3  (RGB) /  X4  (RGBW) /  X5  (RGB+CCT)
Input Voltage: AC100~240V 50/60Hz
Output: DMX512 + 2.4G Wireless
RF Transmitting Power: 6dBm
RF Control Distance: 30m
Working Temp.: -20~45°C



Package included:
       1pcs Constant Voltage DMX512 & RDM Decoder  OR DMX512 Master (AS your choose)



D1-CX / D2-CX / D3-CX / D4-CX / D5-CX



---
