Technical Parameter:                    Pressure Range                    0-10KG/CM2                    Voltage Supply                    220Vac(You require a 3 phase AC contactor with 380V pump)                    Technical Parameter:                    Pressure Range                    0-10KG/CM2                    Voltage Supply                    220Vac(You require a 3 phase AC contactor with 380V pump)                    Connection                    G1/2(Standard),it also can be customized                    Overload Capacity                    220V,10A; Pump(≤1.5KW) can be started directly                    Product Feature:                     environment-friendly:silent design                    Safe: IP65,water-proof case,water-shortage protection                    Intelligent: Preventing the pump automatically restart frequently                     Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibration                    Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.                    Description of Using:                    Water Supply from Upstairs to Downstairs                    Pressure relief valve                    The position of device                    Height                    the lowest outlet of water                    The Upper Value=The Max. Pressure of Pump -0.5KG                    The lower value=0.5KG                    Water shortage protection value=0.2KG                    Water Supply from Downstairs to Upstairs:                    the highest outlet of water                    The Upper Value=The Max. Pressure of Pump -0.5KG                    The lower value=H*0.1KG+0.5KG                    Water shortage protection value  ≤H*0.1KG



Immersible pump automatic control                    The position of device                    Height                    the highest outlet of water                    the surface location of water                    The Upper Value=(The Max. Pressure of Pump-H )*0.1KG-0.5KG                    The lower value=H1*0.1KG+0.5KG                    Water shortage protection value  ≤H1*0.1KG



REAR THE CODE                    CODE                    MEANING                    HOW TO USE                    H2.9                    Upper value,stop 2.9KG                    You can set it as instruction                    L1.5                    Lower Value,stop 1.5KG                    You can set it as instruction                    F0.2                    Water shortage protection  0.2KG                    You can set it as instruction                    E-F                    Water shortage protection                     Press ON/OFF to restart or waiting for restart automatically                    E-H                    Error,over the pressure range or the sensor damaged                    Check the pressure source

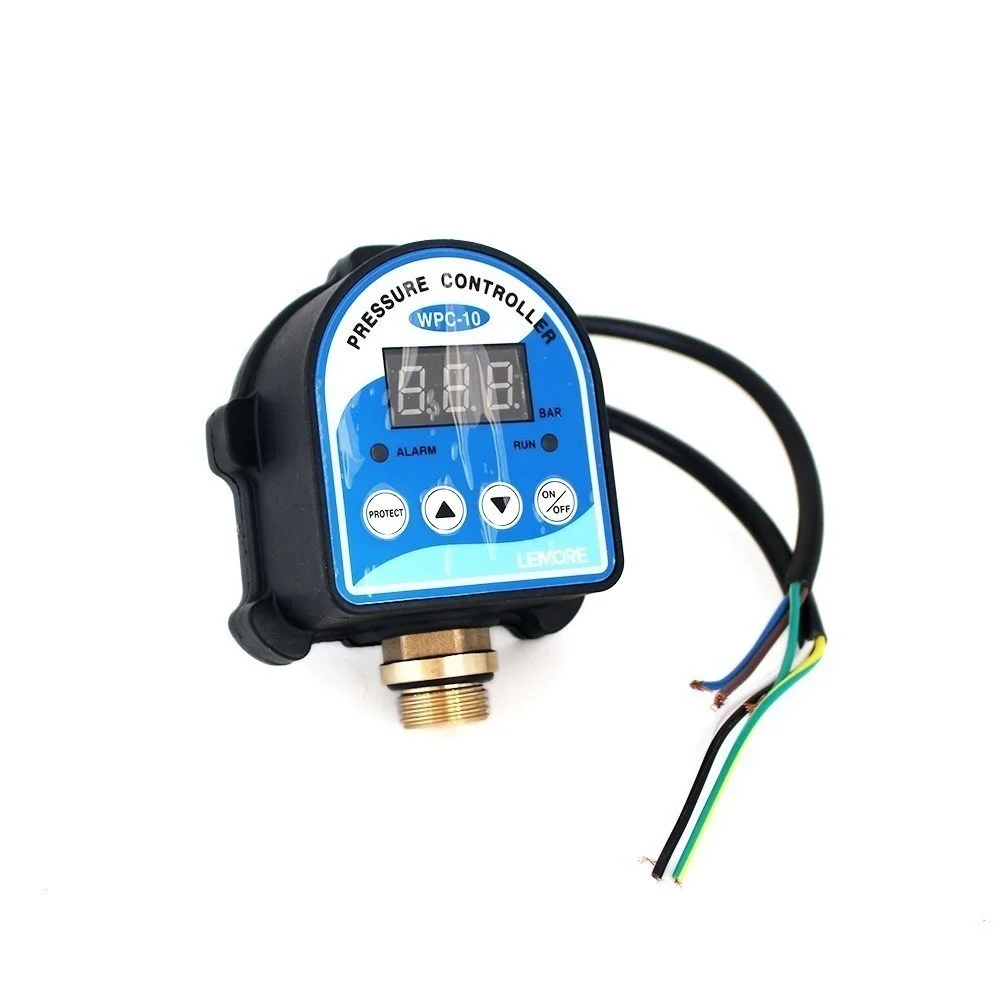

The wiring                    Please see the back of the WPC-10 pressure control, the left is Chinese word "power", you can supply 220Vac from here, the right is Chinese word "motor", please connect it with the pump 220Vac supply terminal.

Description Of Using



Water Supply from Upstairs to Downstairs    Immersible pump automatic control



The Upper Value=                           The Upper Value=

The Max. Pressure of Pump -0.5KG            (The Max. Pressure of Pump-H )*0.1KG-0.5KG

The lower value=0.5KG                       The lower value=H1*0.1KG+0.5KG

Water shortage protection value=0.2KG         Water shortage protection value≤H1*0.1KG











Water Supply from Downstairs to Upstairs











The Upper Value=The Max. Pressure of Pump-0.5KG

The lower value=H*0.1KG+0.5KG

Water shortage protection value≤H*0.1KG





Technical Parameter
Pressure Range	0-10KG f/CM
Voltage Supply	220Vac(You require a 3 phase AC contactor with 380V pump)
Connection	G1/2(Standard),it also can be customized
Overload Capacity	220V,10A; Pump(≤1.5KW) can be started directly





Read The Code
Code	Meaning	How To Use
H2.9	Upper value,stop2.9KG	You can set it as instruction
L1.5	Lower Value,stop1.5KG	You can set it as instruction
F0.2	Water shortage protection  0.2KG	You can set it as instruction
E-F	Water shortage protection	Press ON/OFF to restart or waiting for restart automatically
E-H	Error,over the pressure range	Check the pressure source





---
