Fmuser 15 Watt FM Professional Transmitter Radio Station 15W for Drive-in Church Car Threater Home Conference Light Show |

Fmuser 15 Watt FM Professional Transmitter Radio Station 15W for Drive-in Church Car Threater Home Conference Light Show

Descriptions:

This is the 15W transmitter cover range 3-5KM outside.It set for the people who want to build a little fm station,a home station.It is widely used on the meeting ,driving broadcasting,village broadcasting,Speech ,concert and Tourist guiding.And also schools,supermarkets, factories, railway stations, conferences.You can enjoy the broadcasting anywhere just with a radio.

This machine is small size and light weight.It is portable to carry if you need use it outside.

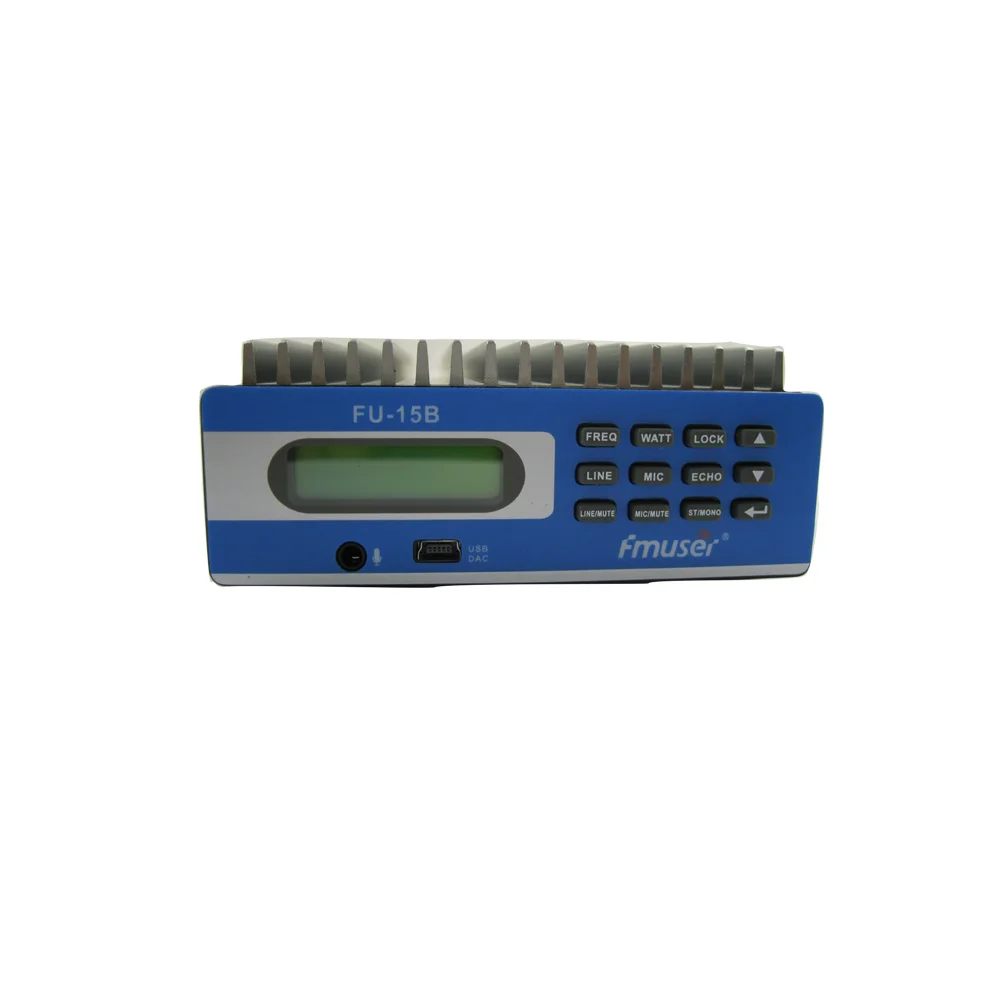

This machine is easy to control.You can see all the button which are very clear to remark with English.The LCD screen will show all the operation when you use it .The transmitter will come with the English instruction.

SDA-15B transmitter is a PC Control  FM transmitter .It will come with the PC control softwave.It can be set to Auto powered on and shutdown.   You don’t need to stay with the machine when you set the computer .

The machine is with the VSWR protection. It will come into automatic protection status when the antenna is not connected or does not match.

Transmit power continuously adjustable from 0W to 15W and transmit power automatically lock.It also can show the Temp of the machine.

Specification:
Operating voltage 12V ~ 16V (rated voltage 15V)
Current <3A
Frequency range of 87 ~ 108MHZ
Frequency stability ± 10PPM
Frequency step 100KHZ
Operating temperature range -10 ~ 45
Antenna impedance 50Ω
Transmit power range 0W ~ 15W
Harmonics, spurious radiation ≤-60dB
Audio Distortion 0.1%
Frequency Response 50HZ ~ 15000HZ
Separation>=35 dB
Input level -15 dBV (adjustable)
Frequency deviation ± 75KHZ
SNR>=60 dB
Machine size 173 mm (L) * 110 mm (W) * 48 mm (H)
Weight about 700G

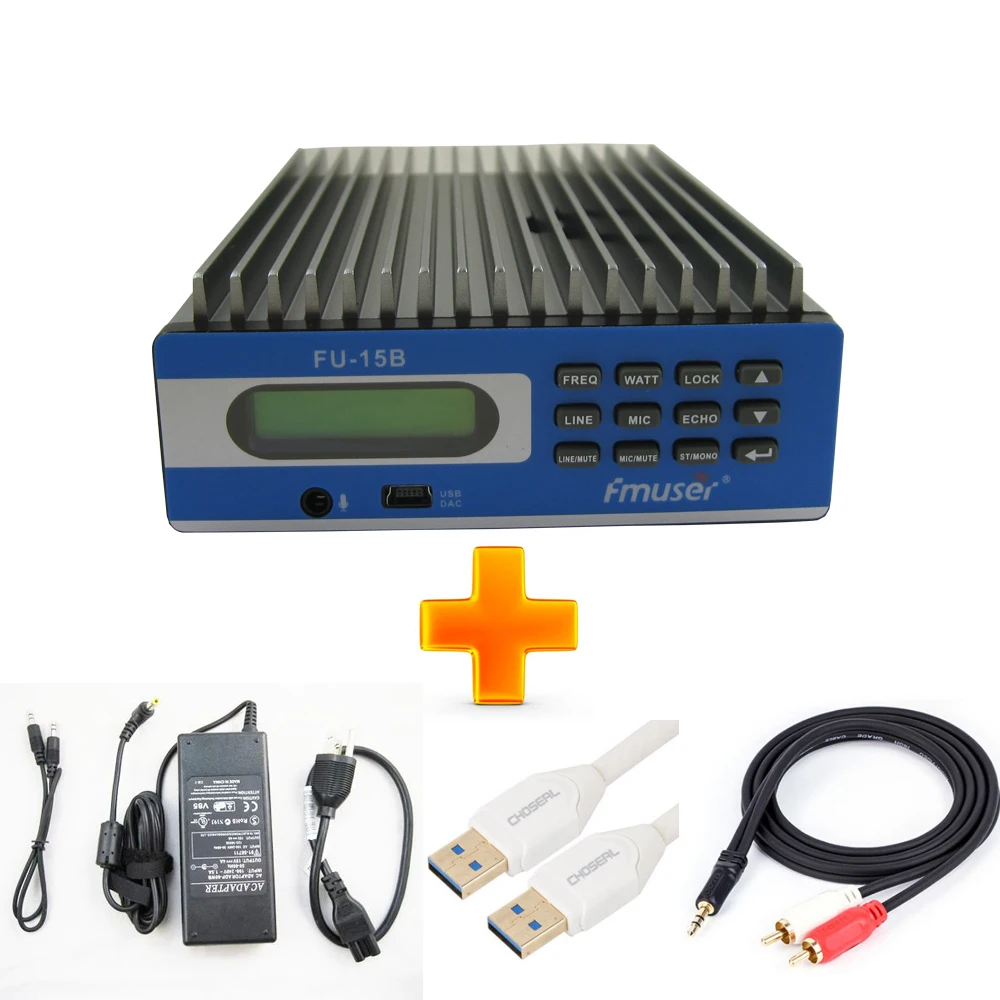

Package include:

1*FU-15B 15W FM transmitter

1*Power adapter

1* RCA audio cable

1* USB cable

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain,  using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter :  30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
