Free shipping 3 way DN15(reduce port) motorized ball valve electric valve( T Port ) MS-3-15-12V-T-R01-1 | Обустройство
Описание товара

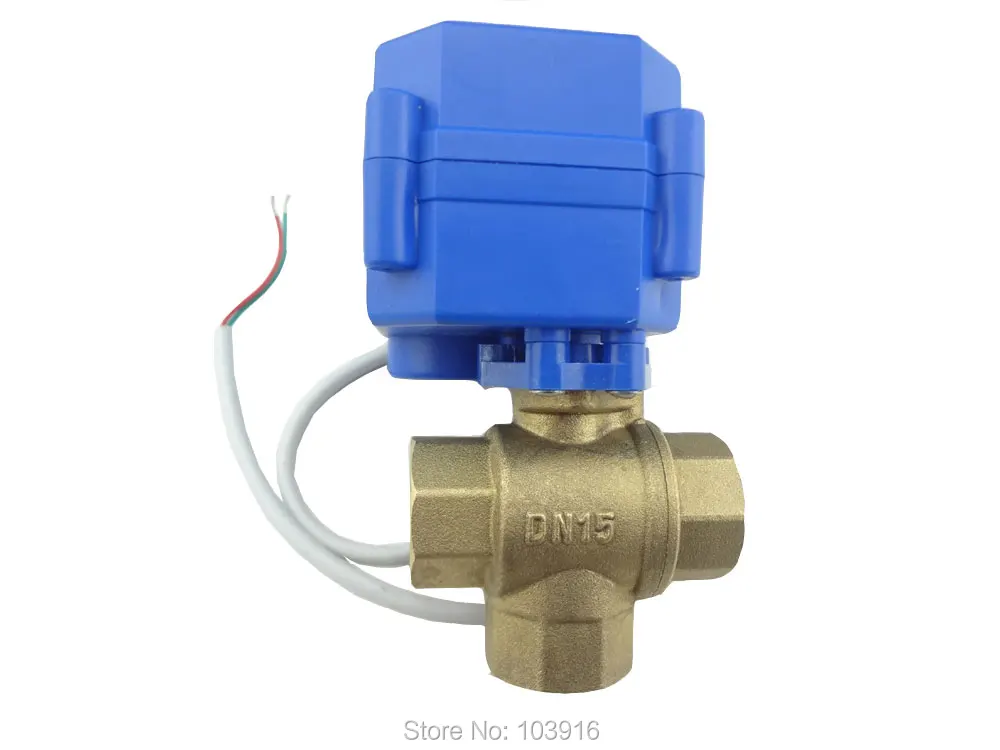

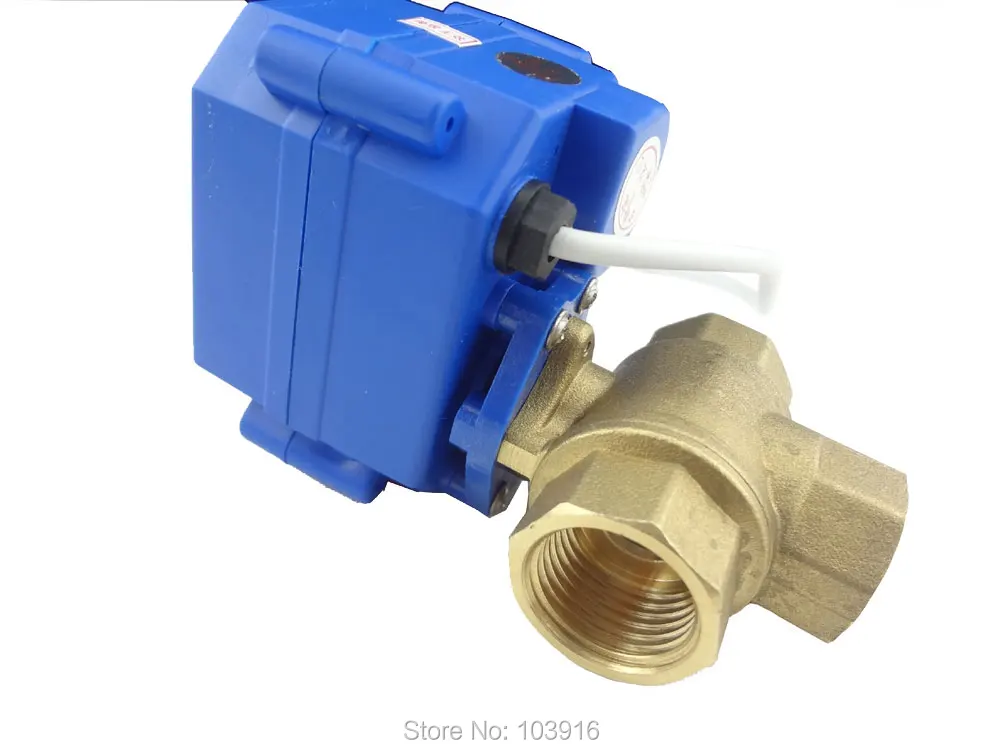

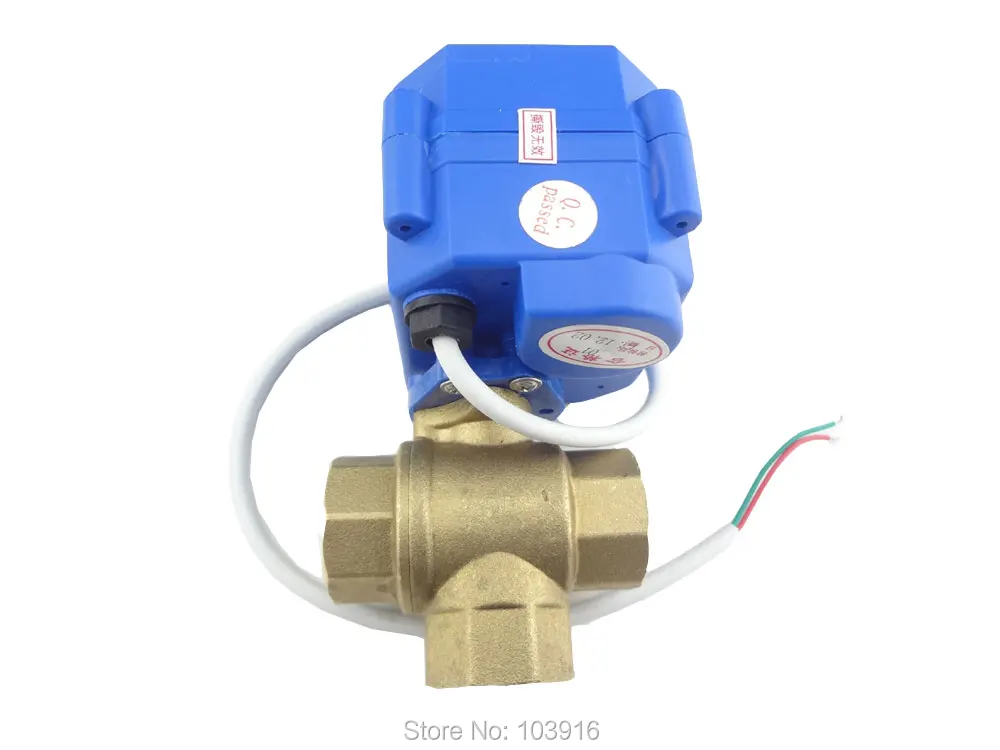

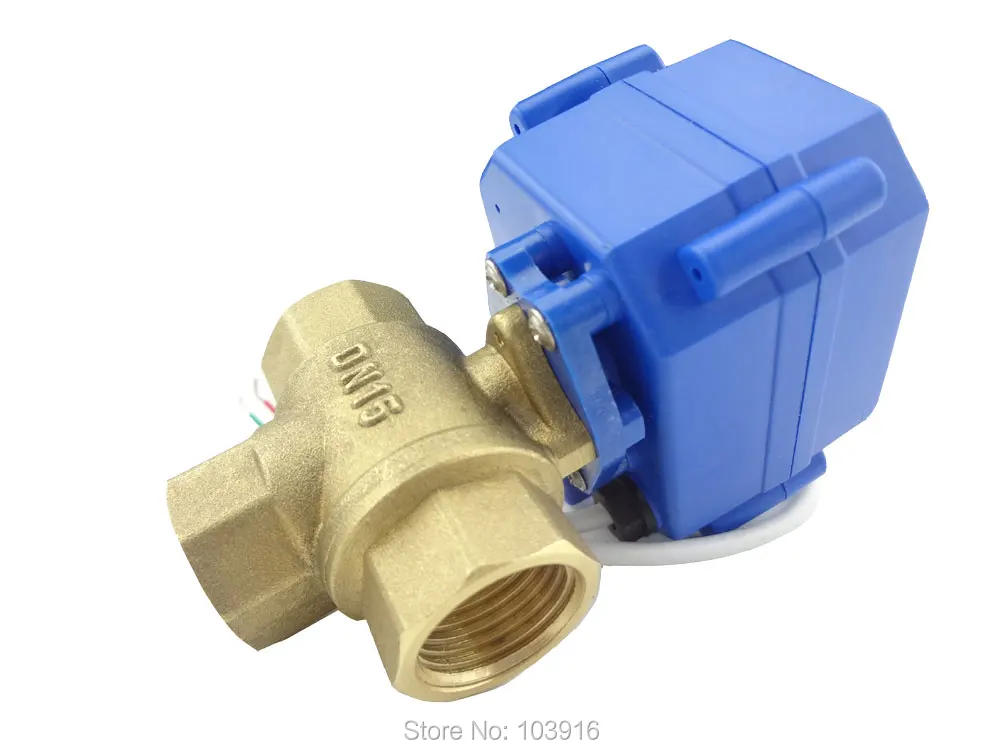

This listing includes 1 unit of motorized ball valve DN15(reduce port), T port, 12VDC
Thread size: DN15(G1/2", BSP), flow hole size: 12mm(position 1), flow hole size: 8mm (position 2)
(Regarding position 1 & position 2, please see the below diagram of flow direction.)
Features:
Mini dimension suits for small equipment
Metal gear
Long life time: 100000 times Min.
Low working current: less than 100mA
Protection: IP65
Application:
It is used for home water, solar water heater, smallautomatic control equipment
Technical Parameter:
| Nominal Size | Pressure | Body | Medium temperature | Enclosure |
| DN15(reduce port) | 0-1.0Mpa | Brass ball valve | 0- 90 Cel.degree | IP65 |
| Work voltage | Input power | Working current | Wiring type | 3way flow direction |
| DC12V | Max. 3W | 60-80mA | CR01(see below) | T type |
*Nominal Torque: 2N*M
*Open/Close time: 5 second
3 WAY flow direction as below picture:
*Wire type: CR01
1.Connecting SW and OPEN, the valve moves from the position 1 to position 2, automatically power off, the valve remain in position 2.
2.Connecting SW and CLOSE, the valve moves from the position 2 to position 1, automatically power off, the valve remain in position 1.
