Coil heater description:
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
D-NAIL/E-NAIL Coil SERIES:
| Name of product | Electric D-nail/Enail Heating unit |
| Inner Diameter of coiled heater | 8/10/14/16/18/20mm ( + 0.05mm) |
| Coil Height | 13.3mm/12.7mm ( + 0.05mm) |
| Flat Coil | ID9mm,OD26mm ID10mm,OD27mm ( + 0.05mm) |
| Voltage | 12v;24v;120v;220v |
| Wattage | 100w;120w;150w;250w |
| Cross-section | 3x3mm;2.2x4.2mm |
| Thermocouple | K or J type |
| Connector plug | Xlr female and male 5 pin |
| Sleeve material | kevlar/fiberglass(Fashional) |
| Sleeve color | red,black,yellow,green,blue,and black with yellow strip |
| PID Temperature controller | L130xW120xH70mm |
Coil Heater Photos:

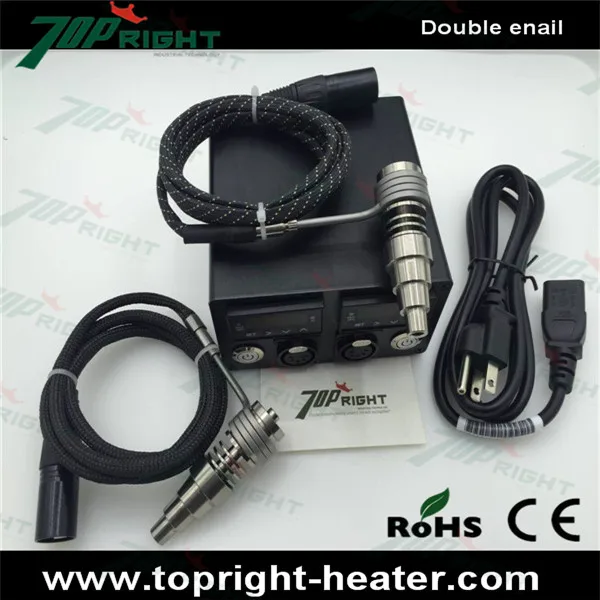

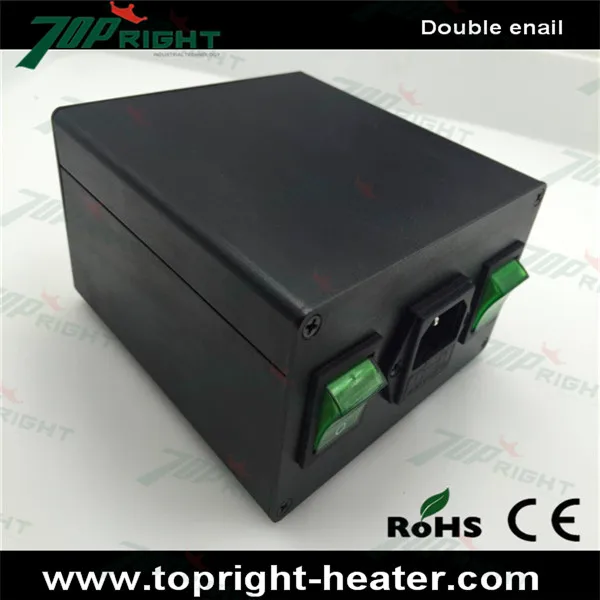

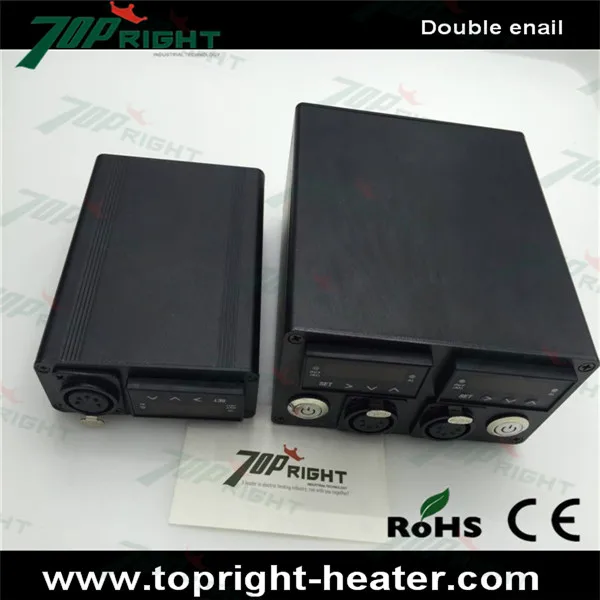

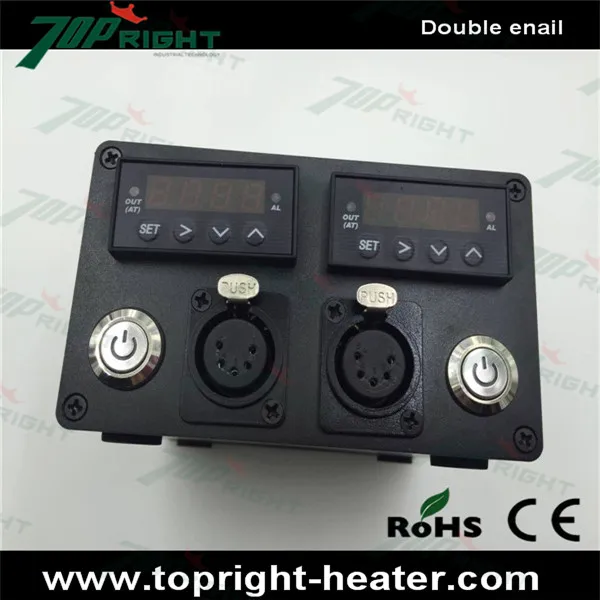

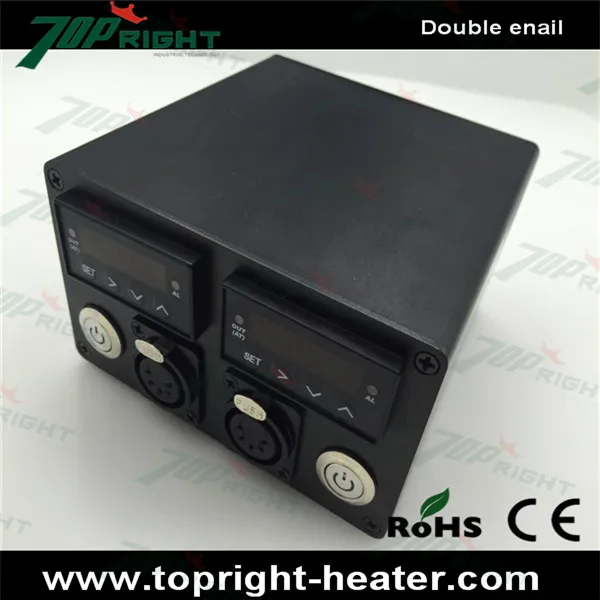

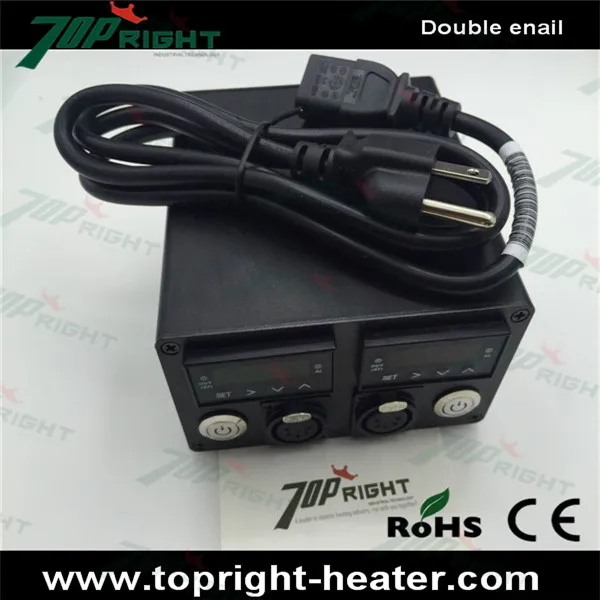

double control box
Hot Runner Heater packaging Photo:
Welcome to contact us for more details ,Thank you!
