STOEMI 6805 Series(F1-F8) 8X Portable Metal 8 LED Illuminated Focus Adjustable Cylindrical Loupe with Measure Scale Magnifier |
Характеристики
STOEMI 6805 Series(F1-F8) 8X Portable Metal 8 LED Illuminated Focus Adjustable Cylindrical Loupe with Measure Scale Magnifier
Описание товара

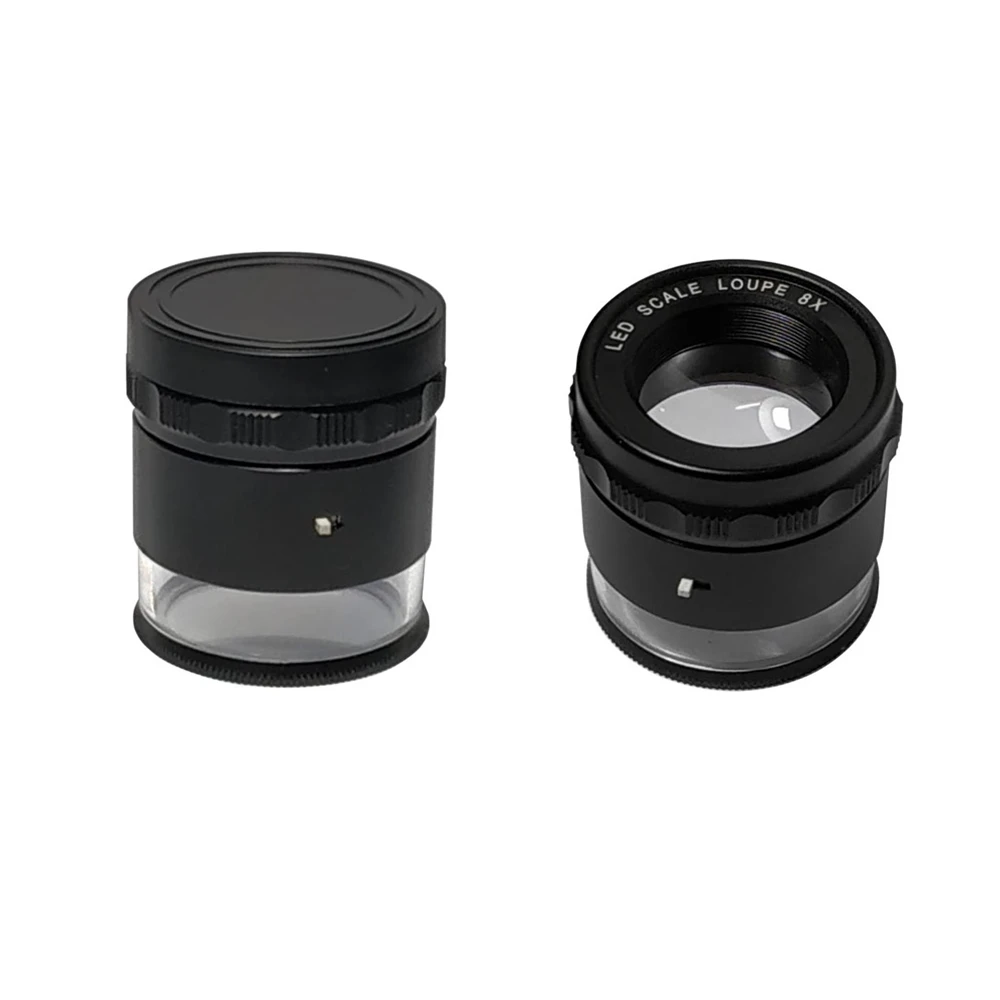

STOEMI 8X Portable Metal 8 LED Illuminated Focus Adjustable Cylindrical Loupe with Measure Scale Magnifier 6805 Series
（F1-F8） Avaliable
Technical parameters:
● Magnification：8X
● Optical structure：2 lenses 2 groups （harden with coating）
● Net weight：65g
● Accessories: lens cap, lens cleaning cloth, packaging box
● Reticle size：Ø 35×1.5mm
● 4 button batteries（Model AG12）(Not include in the magnifier due to shipment policy)
The magnifying glass consists of two lenses with aberrance, the image is clear and undistorted; the transparent base can enter more light.

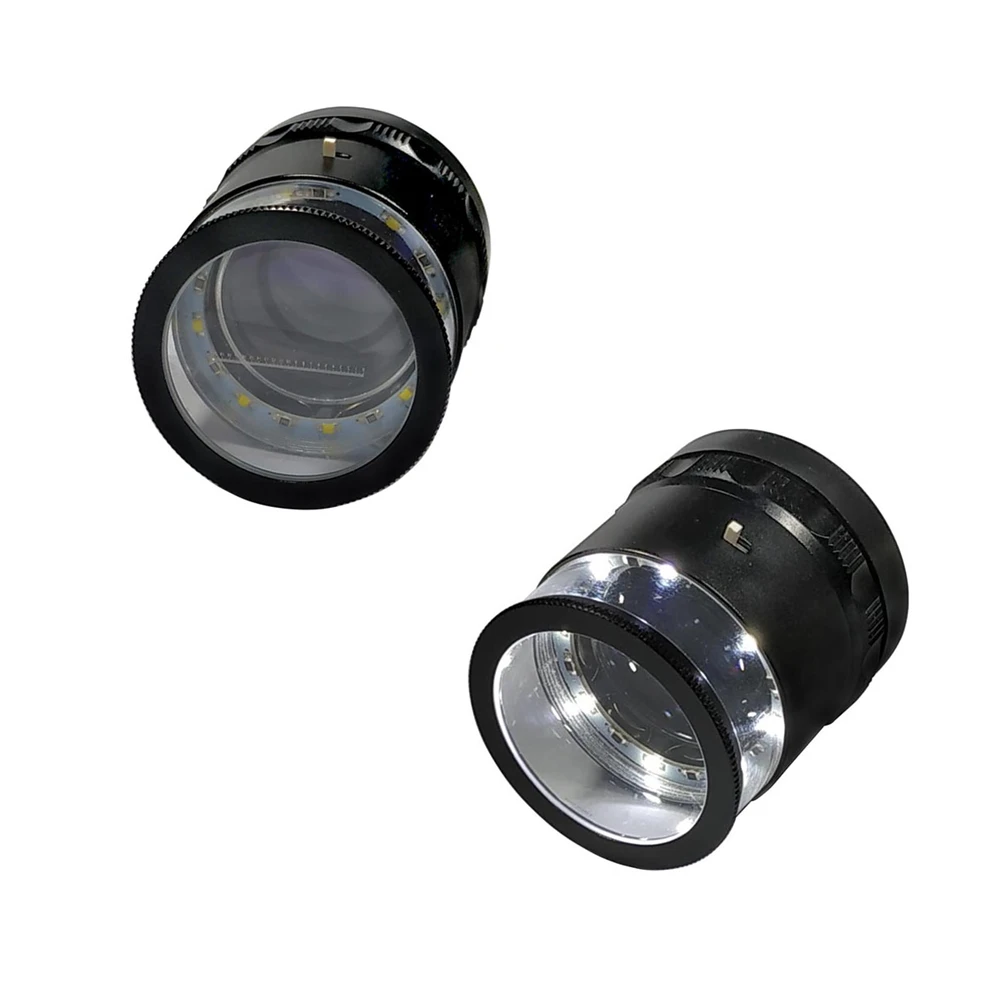

The magnifying glass has 8 LED lights distributed around the circumference of the magnifying glass. The light can be turned on by a toggle switch when there is insufficient light.

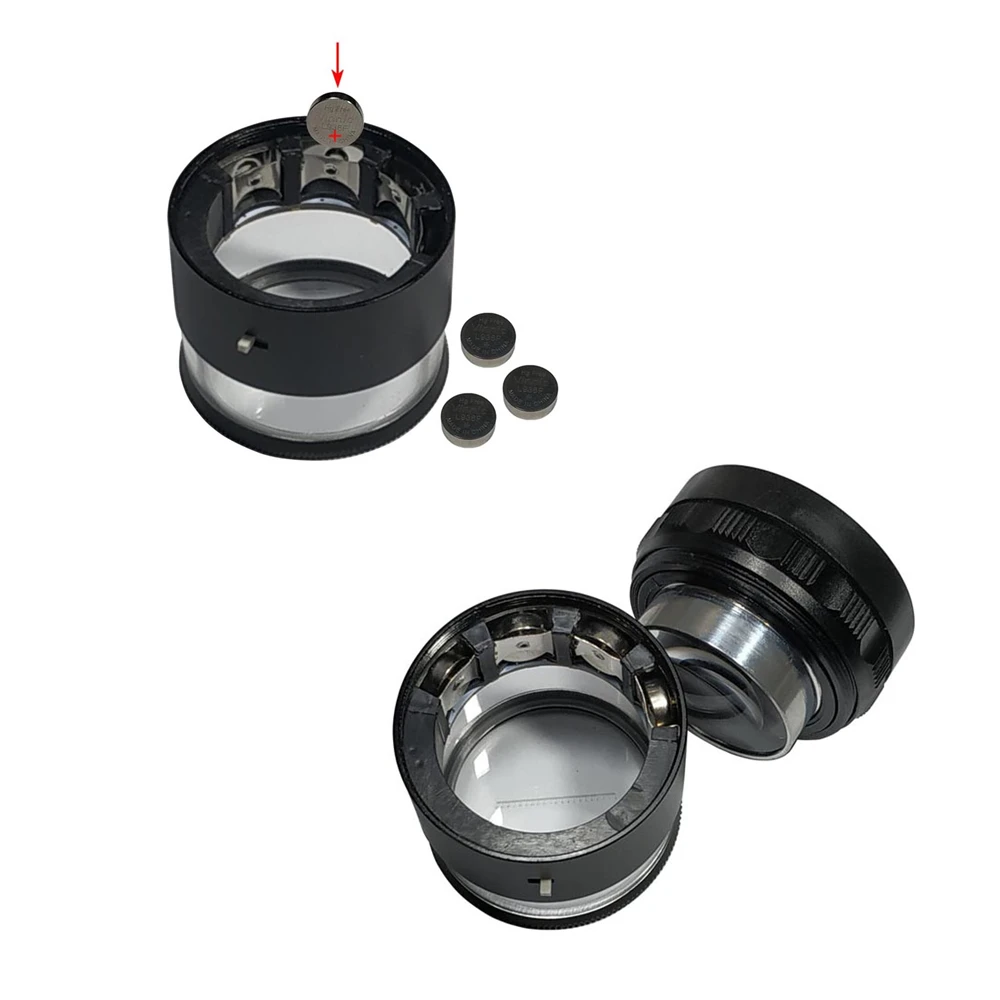

Battery replacement. Insert the four button batteries as shown below, paying attention to the positive and negative terminals of the battery.

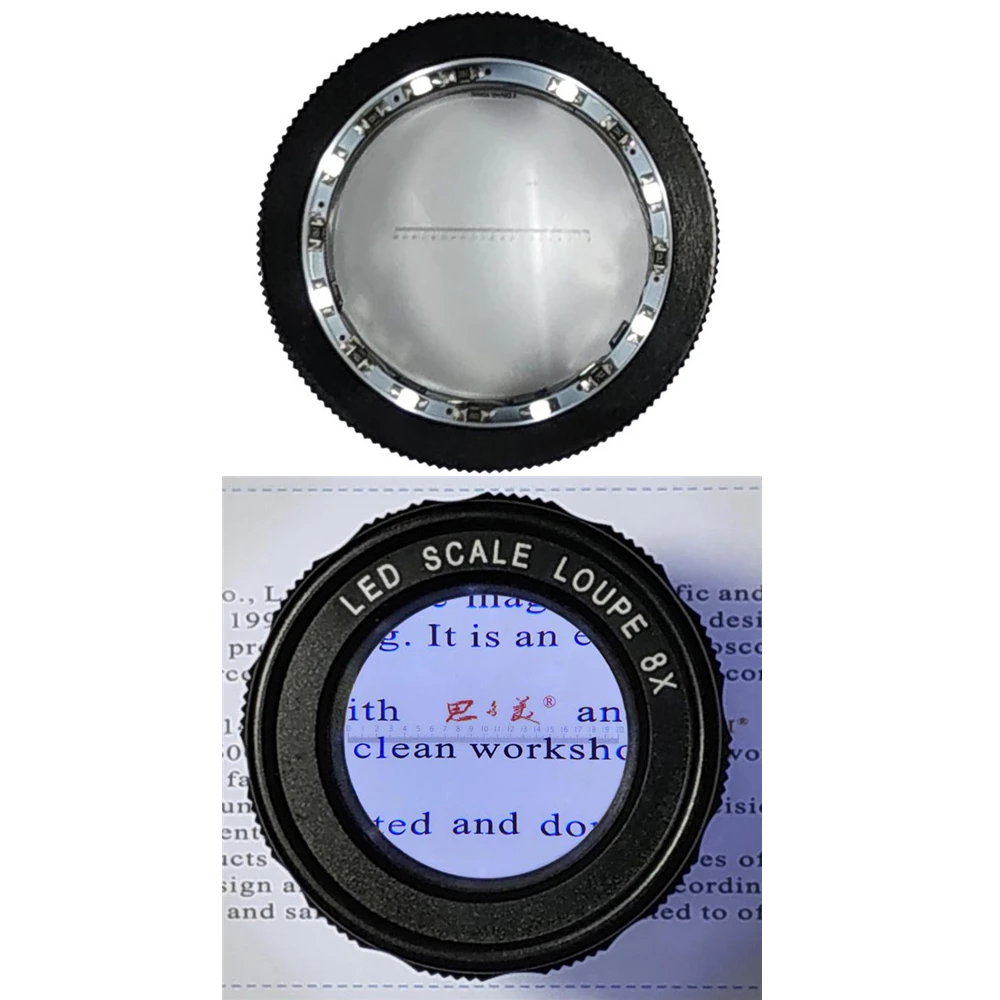

The bottom of the magnifier is equipped with a glass differentiation plate with a diameter of φ35mm for measurement.

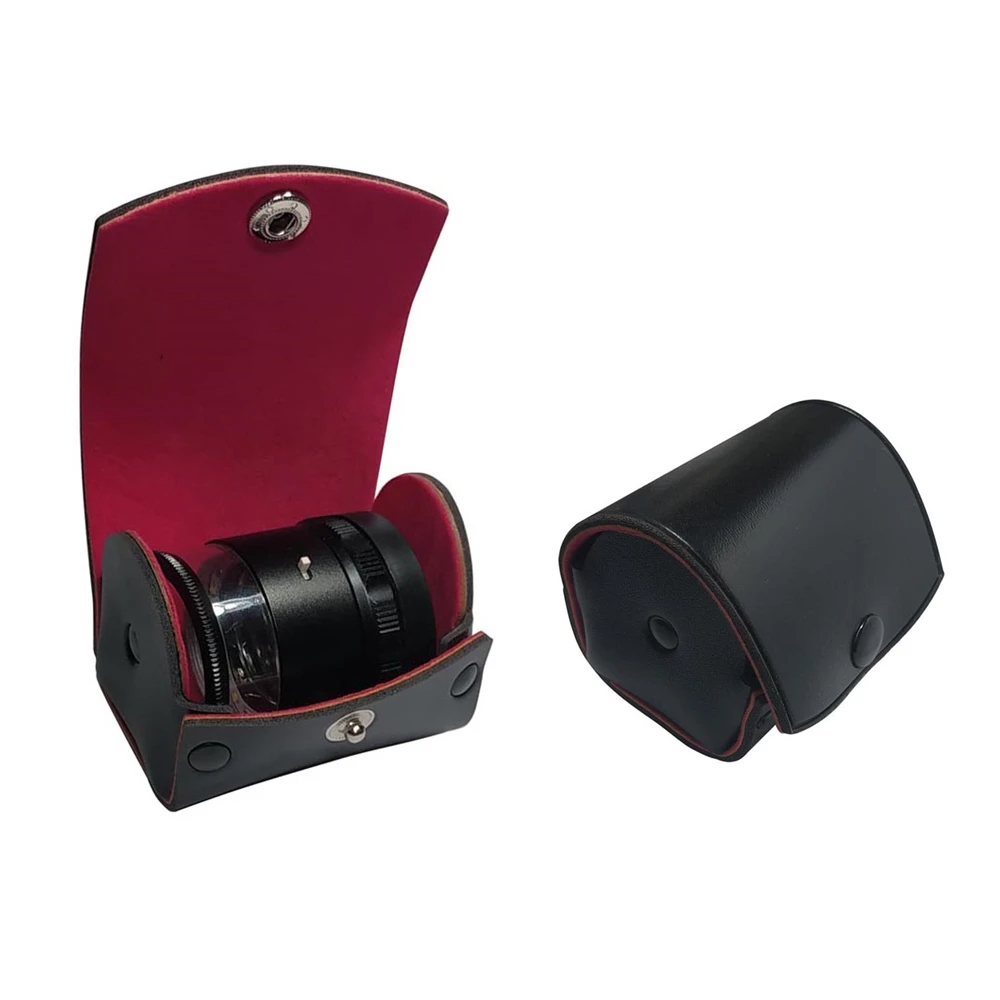

Exquisite packaging box
Glass differentiation plate: diameter φ35mm, available in 8 styles(F1,F2,F3,F4,F5,F6,F7,F8). 6805-F1:Multifunctional reticle is mainly used for an angle, radius, diameter, width, etc. that is measured in inches.
6805-F2:P rotractor scale is from 0°～360° in 1° increments.
6805-F3:C rosshairs scale reticle. For the metric and imperial divisions, the metric division has a grid value of 0.5 mm; the English division has a grid value of 1/64", and the maximum measurement length: metric 16 mm, imperial 0.6".
6805-F4:U niversal degrees plate reticle is mainly used for the measurement of angle, radius, diameter, width, etc. in millimeters.
6805-F5:C rosshair scale reticle, both metric and inch scales are on both sides of crosshairs scale respectively. Metric: 0.5mm divisions; Inch: 1/32", 1/64" divisions.
6805-F6:C rosshairs scale reticle, both metric and inch scales are on both sides of crosshairs scale respectively. Metric: 0.1mm divisions; Inch: 1/64" divisions.

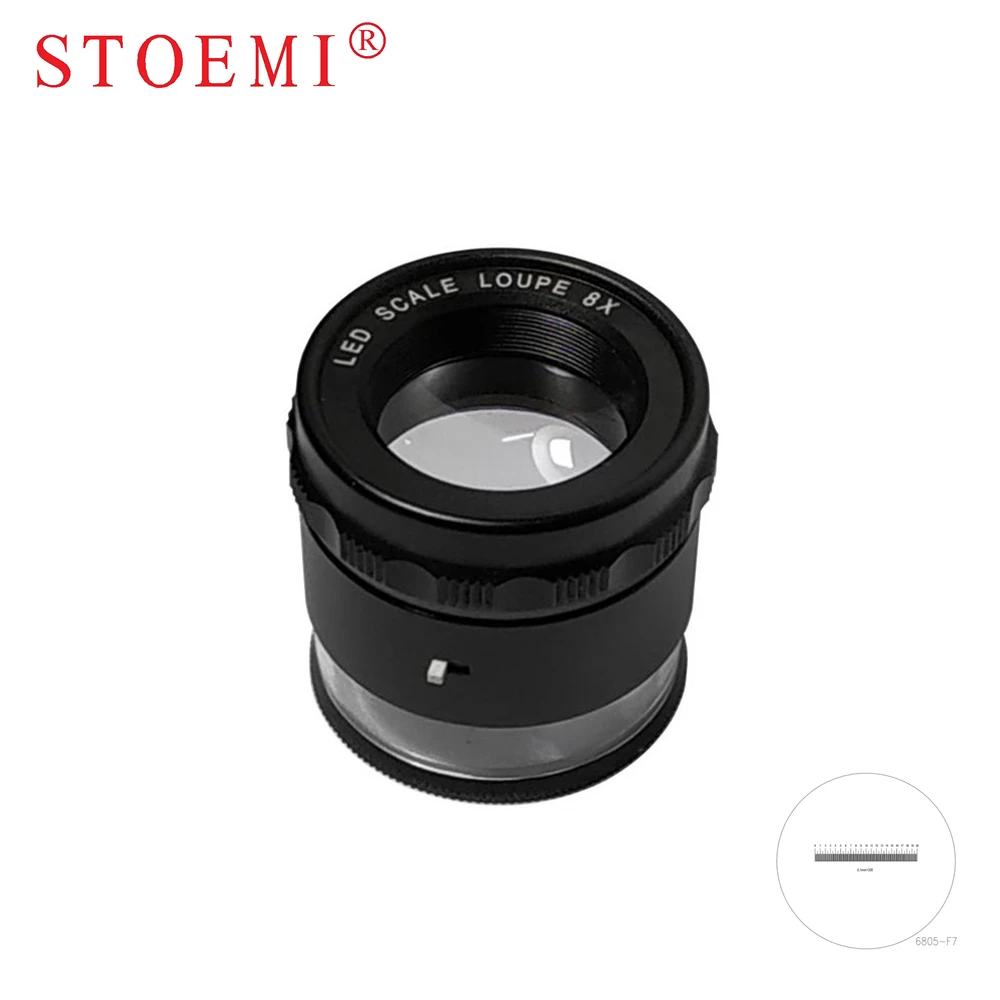

6805-F7:M etric scale reticle, 30mm long in total, 0.1mm divisions
6805-F8:M etric and inch scale reticle, Metric: 0.1mm(Min) divisions, 15mm long in total; Inch: 0.01 inch(Max) divisions, 0.6 inch long in total.
