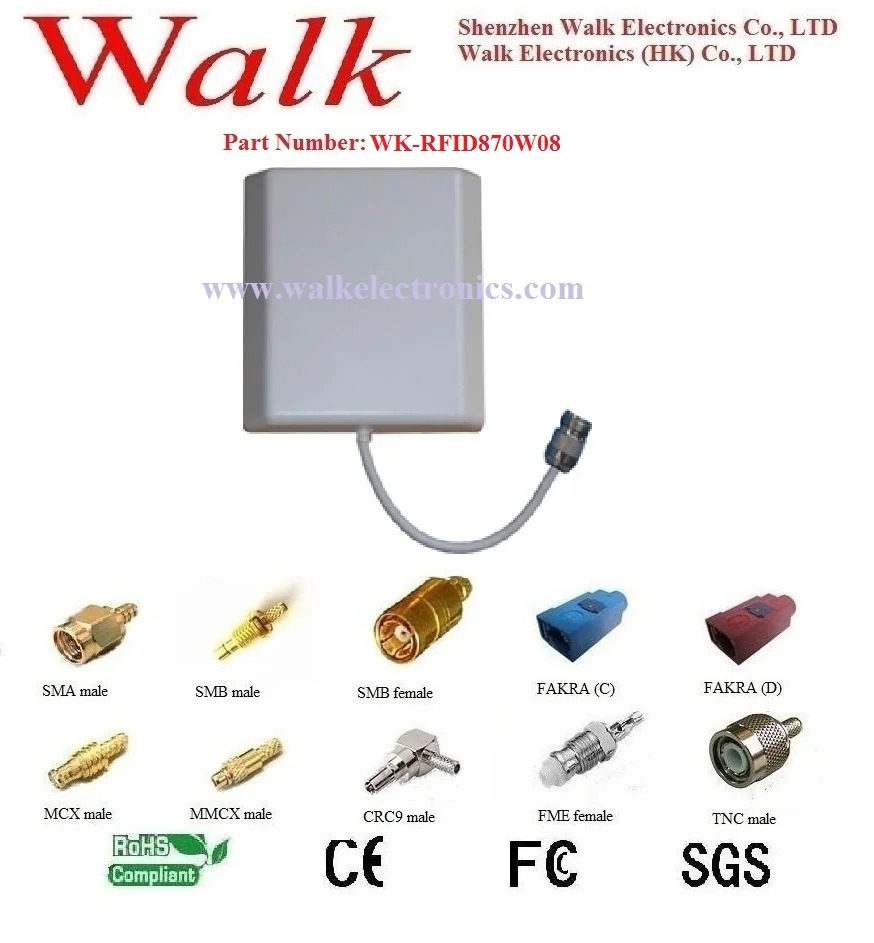

UHF RFID antenna: 865-875MHz 8dBi Linear or Circular Polarization | Мобильные телефоны и аксессуары

Part Number: WK-RFID870W08

UHF RFID Antenna Specification

Frequency Range

865-875MHz

V.S.W.R

1.5:1

Gain

8.0dBi

Bandwidth

10MHz

Horizontal Beam Width

60°

Vertical Beam Width

70°

Polarization Mode

Linear or Circular Polarization

Front-to-Rear Ratio

≥20dB

Max Input power(W)

100

Impedance

50 ohm

Mechanical Specifications

Size

140×120×40mm

Weight

2.9kg

Connector

N female straight

Cable

30cm RG58

Mounting

Hang and mount(Pole)

Diameter of Derrick

Ø30~Ø50 mm

Housing

White ABS

Environmental Specification

Working Temp

-40℃~+85℃

Maximum Wind Resistance

241Km/h

Lightning Protection

Grounding

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

MTBF=1×10-6/pc.hr

40℃±5℃, 2000pcs  For 480h
