280mm 230V 280*280mm axial fan Stand Air-Ventilation Fan (FJ28082MAB) | Бытовая
Описание товара

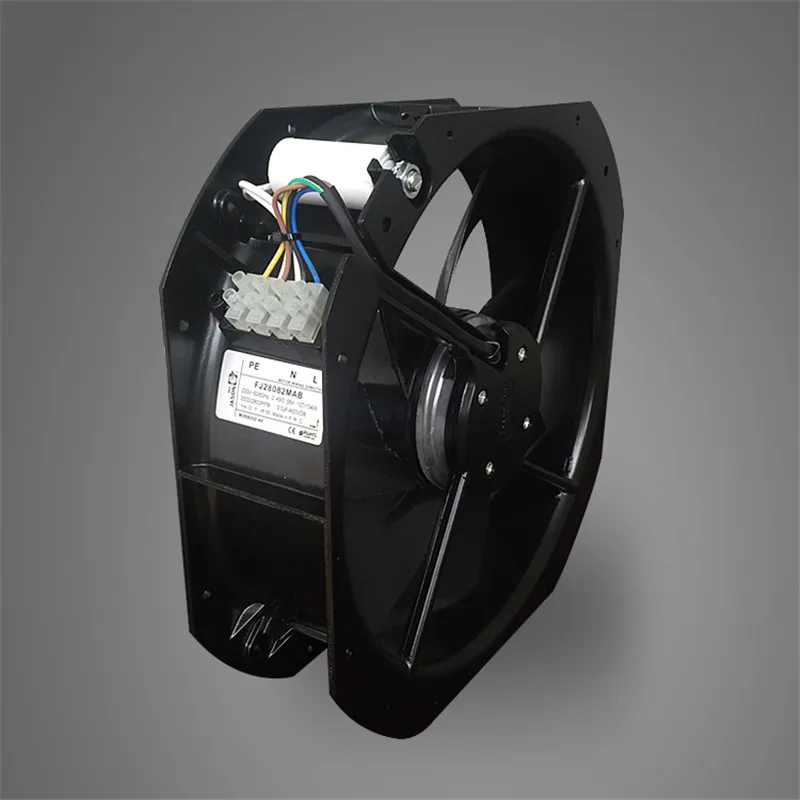

Stand Air-Ventilation Fan (FJ28082MAB)
Frame
Aluminum die-casting, surface is finished by anti-corrosion
treatment with primary color or black electrophorsis
anti-corrosion treatment
Impeller
Metal impellers are welded to motor rotor, and surface is
finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity
Temperature -30ºC ~ +75ºC Humidity 0% ~ 95%
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade F,
Protection Grade
IP44
Quick Details:
| Type | Axial Flow Fan |
| Frame Material | Aluminum die-casting |
| Impeller | Metal |
| Motor Structure | External rotor motor |
| Protection | Automatic recovery thermal protector |
| Temperature & Humidity | -30ºC ~ +75ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | PA-10(Terminal block connection) |
| Protection Grade | IP44 |
| Insulation Systerm | F |
| Model Number8 | FJ28082MAB |
| Voltage | 115VAC / 230VAC / 380VAC |
| Power: | 50/60Hz |
| Air Volume | 1097-1204CFM |
| Speed | 2550-2800RPM,Singel speed or 3-speed |
| Certification | CE, ROHS UL, CSA |
| Unit weight | 2.8KG |
| Color | Black or Grey |
Packaging & Delivery:
Packaging Details: 5 PCS/CTN
Weight: 13KGS/CTN
Size: 53.5 x 27.5 x 27.5cm
Delivery Detail (sample): Shipped in 3-8 days after payment
