Warm Prompt:

1. This product requires a certain DIY ability and common sense of robot installation and commissioning. It requires patience as well.We will provide certain technical support, but does not accept returns for non-product quality issues.

2. To protect the environment and save resources, we are not sending paper documents, please leave your e-mail, we will send the documents to you

3.For the shipping convenience, the product is unassembled.

Product Introduction

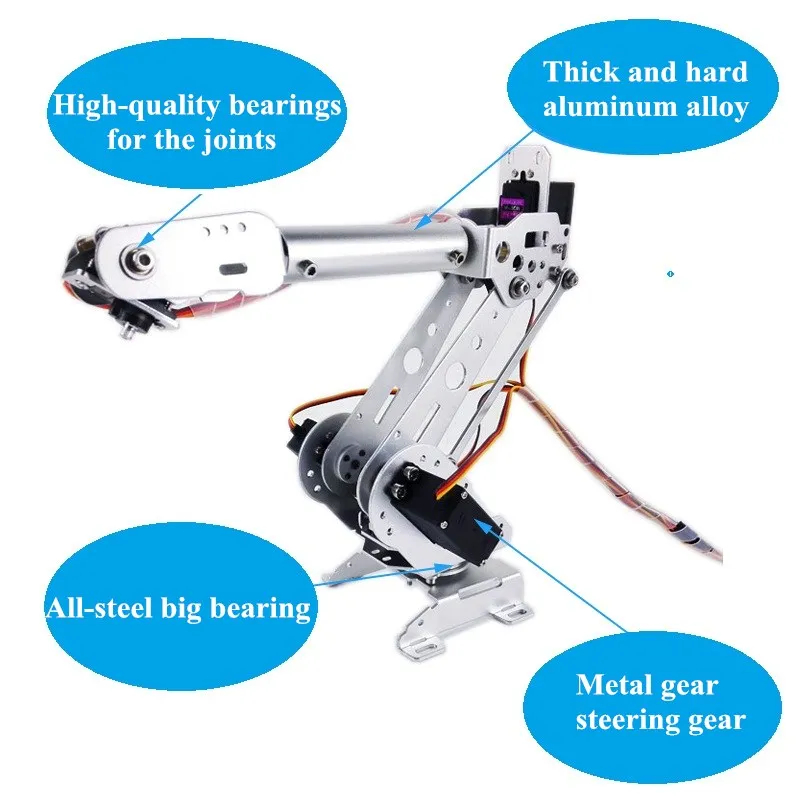

• *This is a 6 DOF All metal mechanical arm

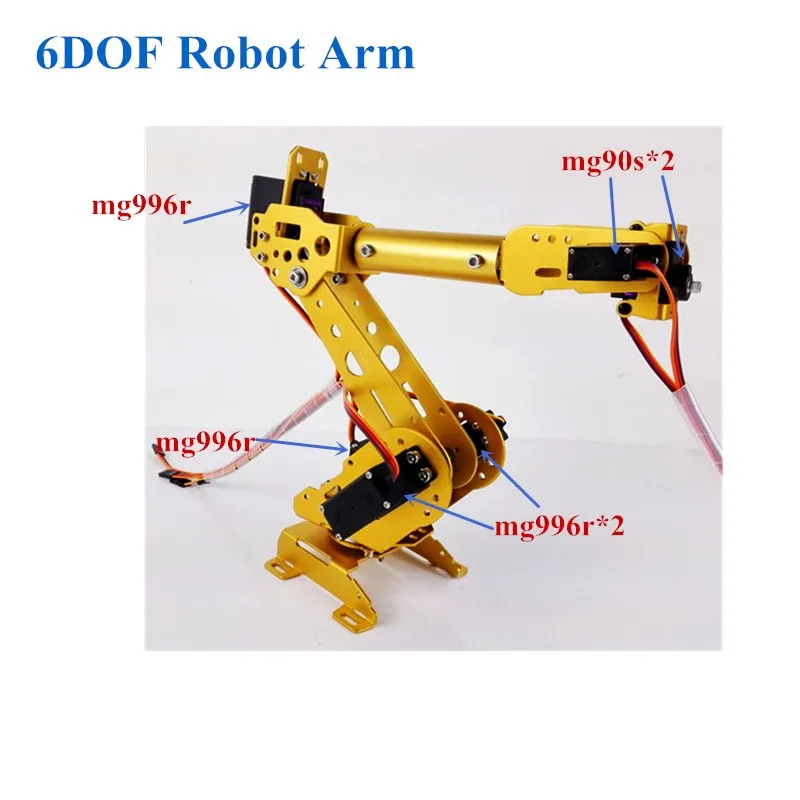

• *The joints at the bottom are made of metal gear servos MG996R

• *Highly strong, practical structure

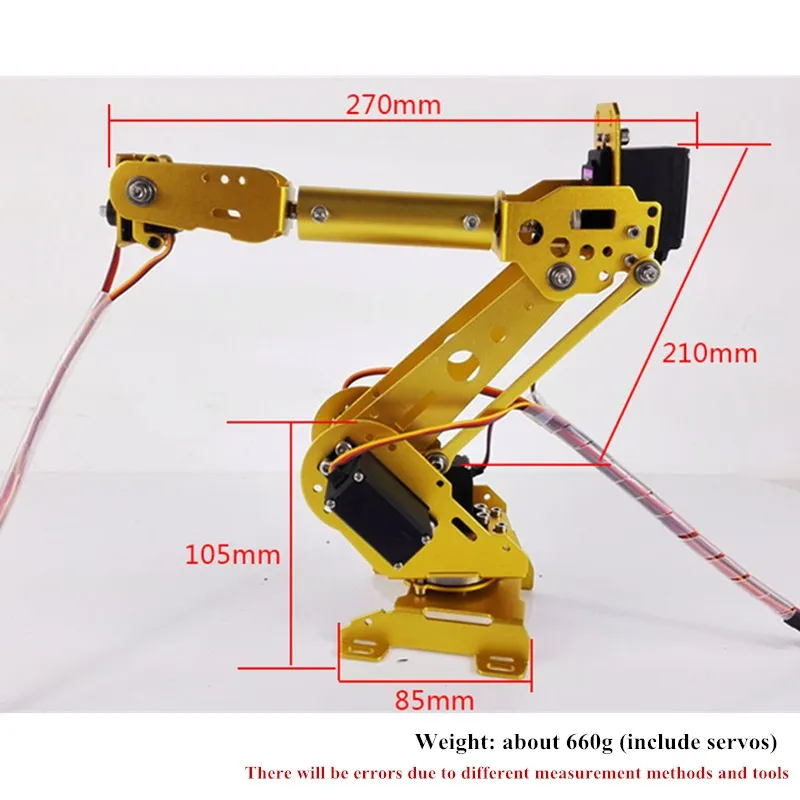

• *The general size as in the picture.

• More details, please visit: //github.com/SmartArduino/SZDOITWiKi/wiki

Product Parameters

Robot Arm Parameters

MG996 servo parameters:

Product name: MG996R

Product net weight: 55g

Product size: 40.7 * 19.7 * 42.9mm

Product tension: 9.4kg / cm (4.8V), 11kg / cm (6V)

Response speed: 0.17sec / 60degree (4.8v), 0.14sec / 60degree (6v)

Working voltage: 4.8-7.2V

Working temperature: 0 ℃ -55 ℃

Gear form: metal gear

Working dead zone: 5us (microseconds)

MG90S Parameters

Product model: MG90s

Product weight: 13.6g

Product size: 22.8 * 12.2 * 28.5mm

Product torque: 2.0kg (4.8v)

Product speed: 0.11s (4.8v)

Rotation angle: up to 90-180 °

Servo Type: Digital Servo

Operating temperature: 0 ° -55 °

Deadband setting: 5 microseconds

Plug type: JR, FUTABA universal

Product structure material: copper metal teeth, hollow cup motor, double ball bearing

Attachments include: steering wheel, cable length 30CM, fixing screws, vibration-damping rubber sleeve and aluminum sleeve, etc.

Scope of application: 450 electric swashplate servo fixed-wing aeroplane remote control aircraft

Shipping List

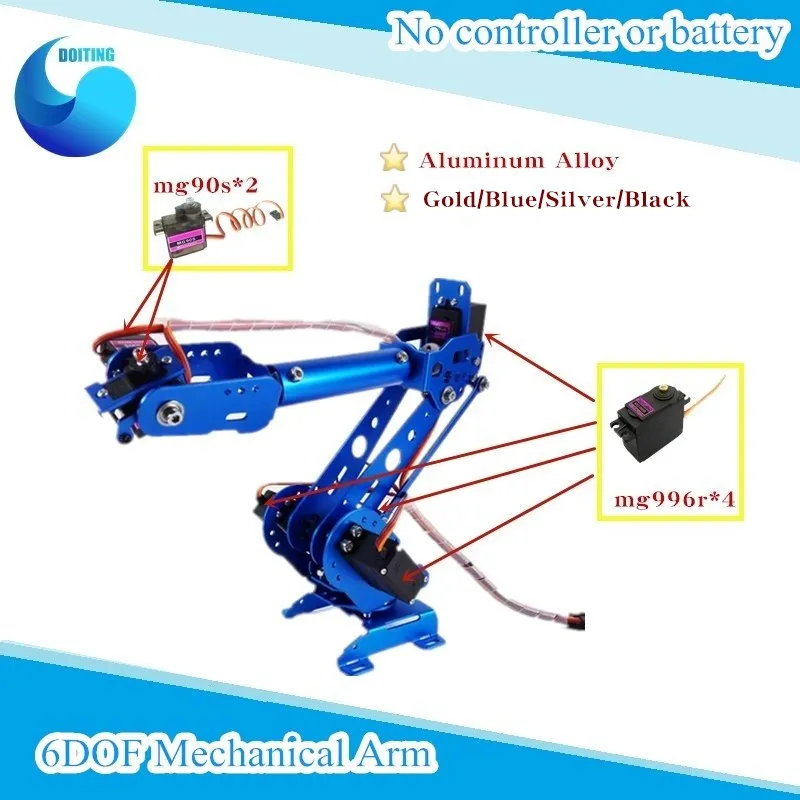

• List 1: Gold/Blue/Black/Silver with servos: robot arm parts+mg996s*4pc+mg90s*2pcs

• List 2: Just robot arm parts( no servos)

•

• Note:

• The robot arm is not include controller and battery.

  For the shipping convenience, the product is unassembled.

Product Images
