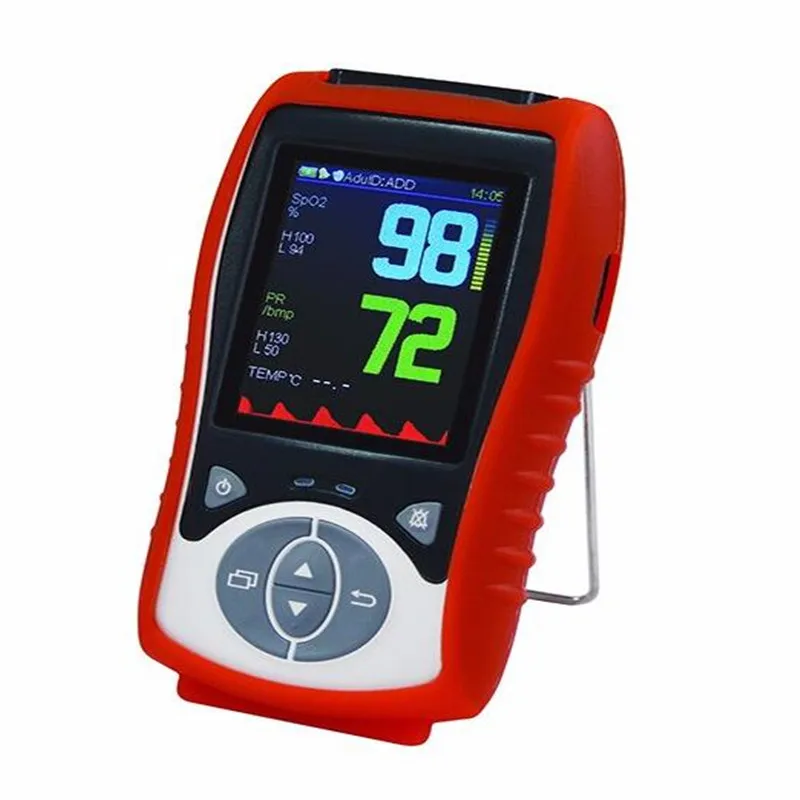

Handheld Pulse Oximeter Adult Fingerclip Spo2 Sensor,Temperature Probe,Measuring Spo2 and Temperature Pulse Oximeter Monitor

Features:

1.Lightweightfor carrying and easy to use.

2.Silicon rubber shellprotection and stable bracket.

3. DB9 type connerctor compatible withNellcor Spo2 sensor.

4. Support the oximeter probe for adult, neonate and infant.

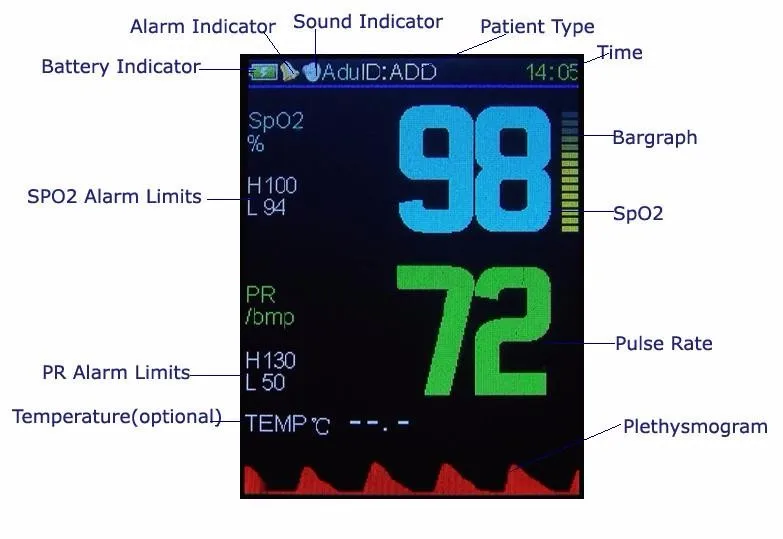

5.2.8" color TFTfor SpO2/ PR/Pulse bargraph/ plethysmogram.

6. Visual and sound alarm function.

7. Adjust the parameters in friendly menu.

8. Low battery voltage indicator.

9. Auto switch off on signal with 3 minutes.

10.Inner memory for 360 hours.

11.USB interface upload the data to PC and review.

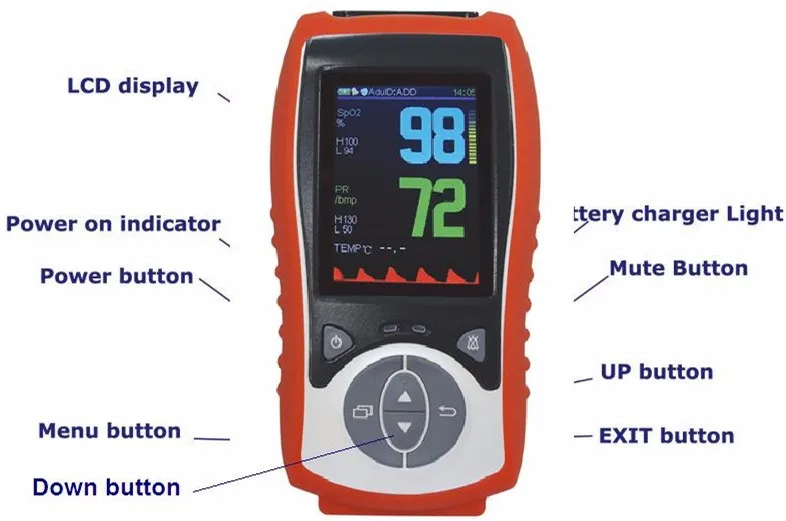

1.Appearance

2. Performance Specifications

Modes: Neonatal, pediatric and adult patients
Language: English/ Chinese

Block adudios:

Power: 220V/50 Hz

Display: 2.8" color TFT

Resolution: 320*240

Multi display selectable: standard scteen display; waveform display

Trace: 1 plethysmogram waveform

Indicator: Alarm indicator light.

Power indicator light;

Pulse tone;

Alarm sound, button tones

Interface: one dual-purpose socket for connecting;

SpO2 sensor and communication cable;

Zigbee link allows downloading.

3. Parameter

SpO2

Patient: adult, child

Hemoglobin saturation display: 35%-99%

Resolution: 1%

Accuracy: ±2%(70%-99%) uspecified(0%-69%)

Pulse Rate

Range: 0-250bpm

Resolution: 1bpm

Accuracy:±1bpm

Power consumptio: Smaller than 80mA (Normal )

Low perfusion condition≤0.3%

Temperature

Channel: 1

Measuring and alarm range: 18-45℃

Resolution: 0.1℃

Accuracy: 0.1℃

Actualization interval about 1 sec.

Average time constant <10 sec.

Standard Packing List

Pulse oximeter mai unit 1 pc

Adult finger SpO2 sensor 1pc

USB line 1 pc

CD Software
