Touch Key 7" Color RFID Video Door Phone Doorbell Intercom System 5 ID Card 2 Monitor Wholesale | Безопасность и защита

Touch Key 7" Color RFID Video Door Phone Doorbell Intercom System 5 ID Card 2 Monitor Wholesale | Безопасность и

Touch Key 7" Lcd RFID Password Video Door Phone Intercom System Wth IR Camera 1000 TV Line Remote Access Control System

Features:

MJIDS Access Controller :

The MJIDS  is a standalone access control, they use the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure.

All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

Support 125KHz EM card.

Low power consumption (standby input current: <20mA).

3 access modes: Card, Card or PIN, Card with PIN.

Can work as a standalone keypad (PIN code length: 4-6 digits).

Relay output load can be 3A max.

Antistatic Interference: 12KV.

Operating temperature: -20°c~60°c

Specifications:

Intput Voltage:12VDC

Input current: <60 mA

User Capacity: 500 User Card,  1 Password

Card Type: RFID compatible card

Frequency: 125Khz

Read range: 10-50mm

Wiring connections: Electric Lock, Exit Button

Remote Control:

This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 6-20 meters

125KHz RFID Cards :

These are 5pcs 125KHz RFID Proximity ID Card, they can work with the product which has 125Khz RFID card reader.

Water resistant

Detecting distance: 3-10cm

Operation frequency: 125Khz

Each comes with Key ring included

Compatible with all RFID ID card reader to gain access

Each token pre-programmed with unique ID which is printed on it

Video door phone:

Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

Indoor monitor: ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.

7 inch TFT color LCD display screen, without radiation, low power consumption, high definition and with sensitive touch key press control.

Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.

With a rain shield, waterproof, antioxidant and durable to use.

16 kinds of different melodies for your choices.

Volume, brightness and contrast are adjustable.

Supplied with connection cable and adapter, users can install it according to operating instruction.

Can be widely used in single-family houses, villas, offices, hotels and so on.

This product can meet different requirements: one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.

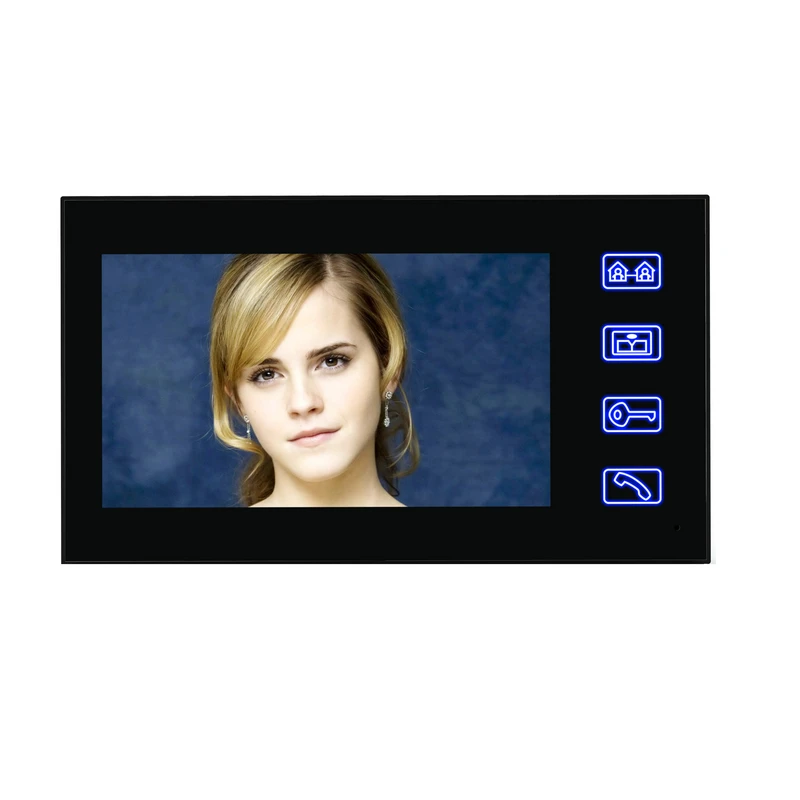

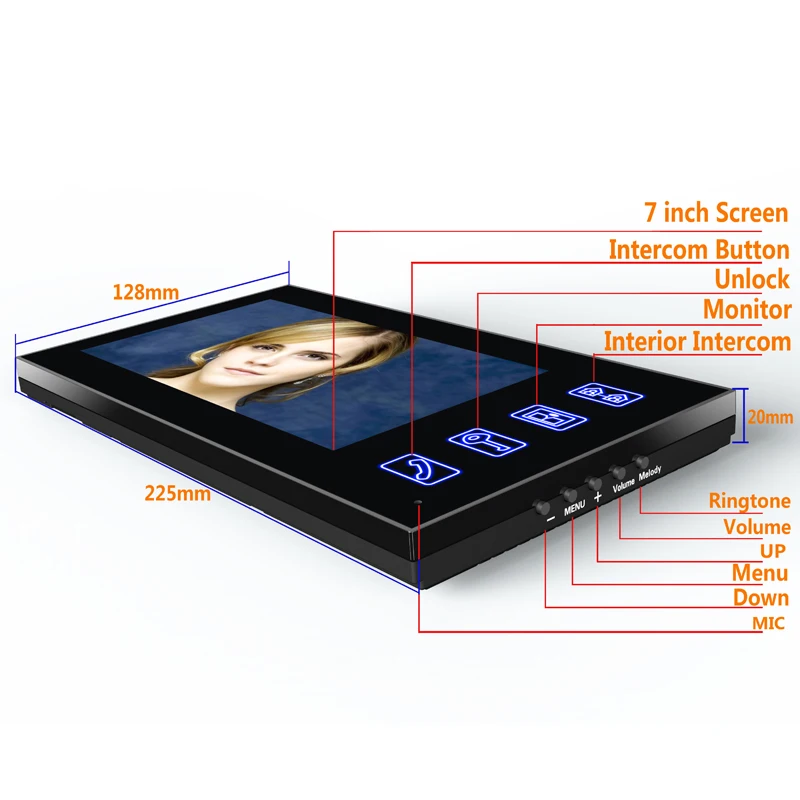

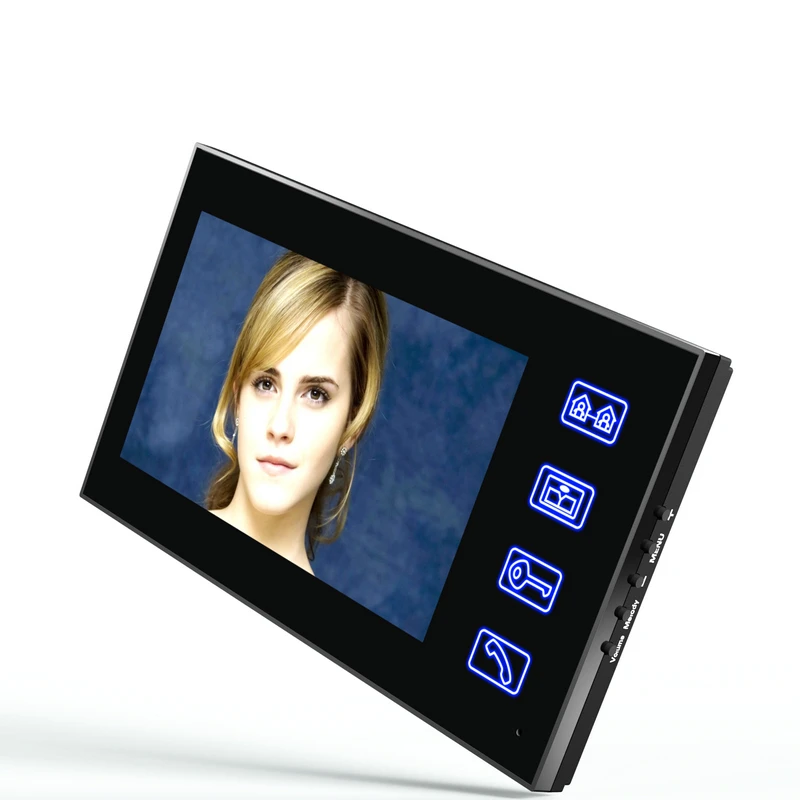

Specifications of indoor monitor:

Screen: 7" TFT LCD (16:9 display)

Resolution: 960 * 480

Power supplied by: power adapter

Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA

Adapter type: US EU AU UK plug

Adapter cable length: 1.45m/ 4.75ft

Consumption: working state: 8W, standby state: 0.5W

Call duration time: approx. 120 seconds

Monitor duration time: approx. 60 seconds

Material: plastic

Dimensions: 22.5 * 12.8 * 2.4cm

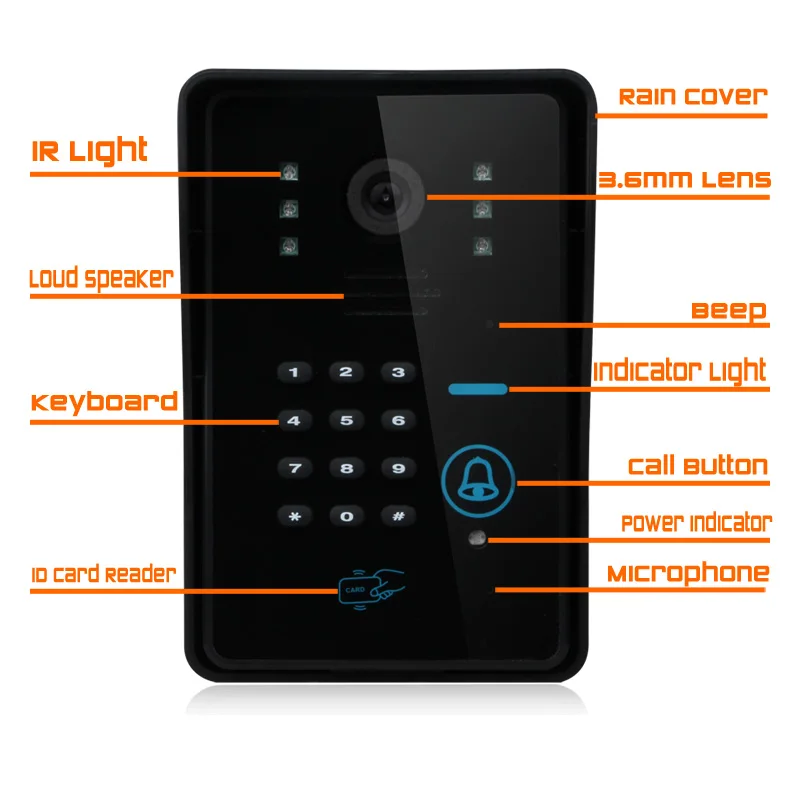

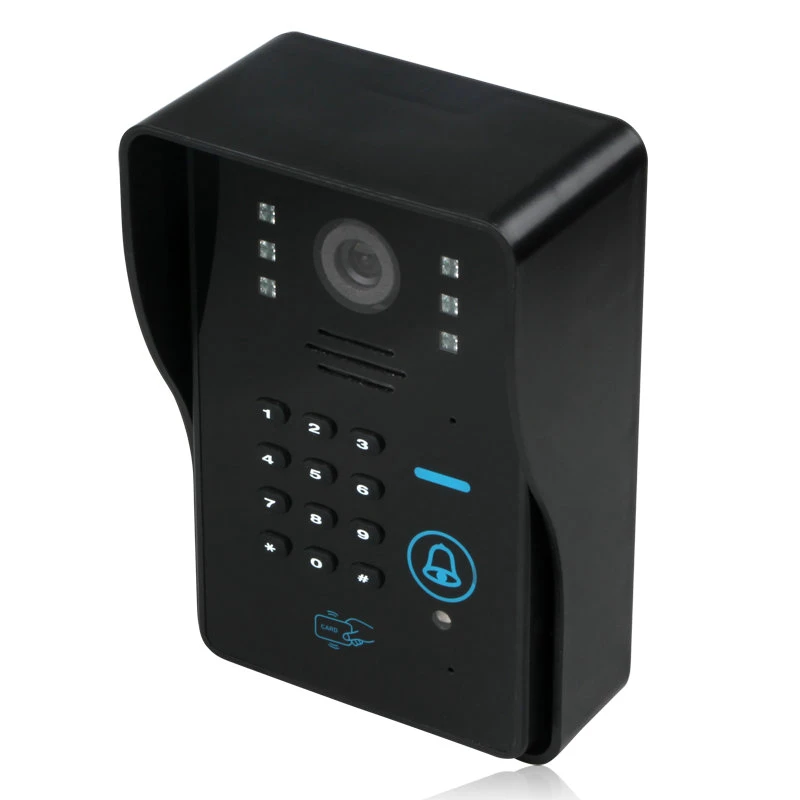

Specifications of outdoor unit:

Material: plastic & metal

LED: 6 * infrared LED lights

Camera: 1/3 CMOS  1000 TV Line

Viewing angle: 92 degrees

Consumption: calling state: 12W, standby state: 0.1W

Valid distance (6 * 0.75mm⊃2; copper wires): 80m/ 262.4ft

Dimensions: 16.8 *11.2 * 6.6cm

Working temperature: -10 degrees centigrade to +50 degrees centigrade

Working humidity: ≤85%

Package size: 28.5 * 18.5 * 12cm

Packing list:

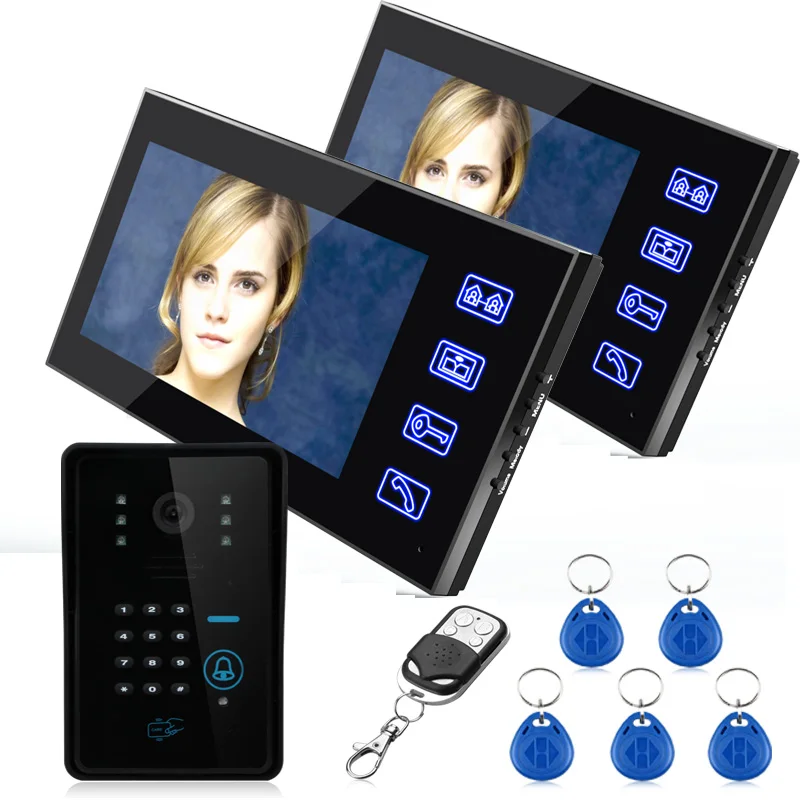

1 * Outdoor unit with rain shield with Access Control System

2 * Indoor Unit

2 * Power adapter (us/au/eu/uk plug)

2 * 6 pin cable (5m)

1 * 2 pin cable

1 * 3 pin cable

1 * Mounting plate

1 * Bag of screws

1 * User manual

5 *125KHz RFID Cards

1 * Remote Control
