Стартовал на 1,3 м бело-оранжево-зеленом магнитном подвесе ветрогенератор 400Вт500Вт600Вт 12В24В вертикальный с MPPT контроллером повышения низкого напряжения включен.
Характеристики
Стартовал на 1 3 м бело-оранжево-зеленом магнитном подвесе ветрогенератор 400Вт500Вт600Вт 12В24В вертикальный с MPPT
Описание товара
Description
Feature
1.meglev generator
2.2 blades
3.20years use life and 1 year for warranty
4.small ,light ,stable and safely
5.Certified with:CE
6.High efficiency, could be hybrid system with solar panels.
7. Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting..
Technical
| item |
FS-V-400 |
FS-V-500 |
FS-V-600 |
| Started wind speed (m/s) |
1.3 m/s |
1.3 m/s |
1.3 m/s |
| Cut-in wind speed (m/s) |
2.3 m/s |
2.3 m/s |
2.3 m/s |
| Rated Wind speed (m/s) |
12 m/s |
12 m/s |
12 m/s |
| Rated voltage（DC） |
12/24V |
12/24V |
12/24V |
| Rated power（W） |
400W |
500W |
600W |
| Max power（W） |
450W |
550W |
650W |
| Rotor Diameter of Blades（m) |
0.52 |
||
| Blades Height（m) |
1.3(no generator) |
||
| 1.5 (include generator and Flange) |
|||
| Safe wind speed (m/s) |
Max wind speed：≤40m/s，The instantaneous maximum wind speed≤45m/s |
||
| Blades quantity |
2 |
||
| Blade material |
glass/basalt |
||
| Generator |
Three phase permanent magnet suspension motor |
||
| Control System |
Electromagnet |
||
| Mount Height（m) |
7~12m （9m） |
||
| Generator protection grade |
IP54 |
||
| Work environment temperature |
VAWT -25~+45℃、 |
||
| controller -10~+45℃ |
|||
| Inverter 0~+40℃ |
|||
| Work environment humidity |
VAWT ≤90%、 |
||
| Controller and inverter≤80% |
|||
| Altitude： |
≤4500m |
||
| Product assembly weight (Kg) |
<24Kg |
||
| Overspeed protection |
Electromagnetic brake |
||
| Overload protection |
Electromagnetic brake and the unloading unit |
||

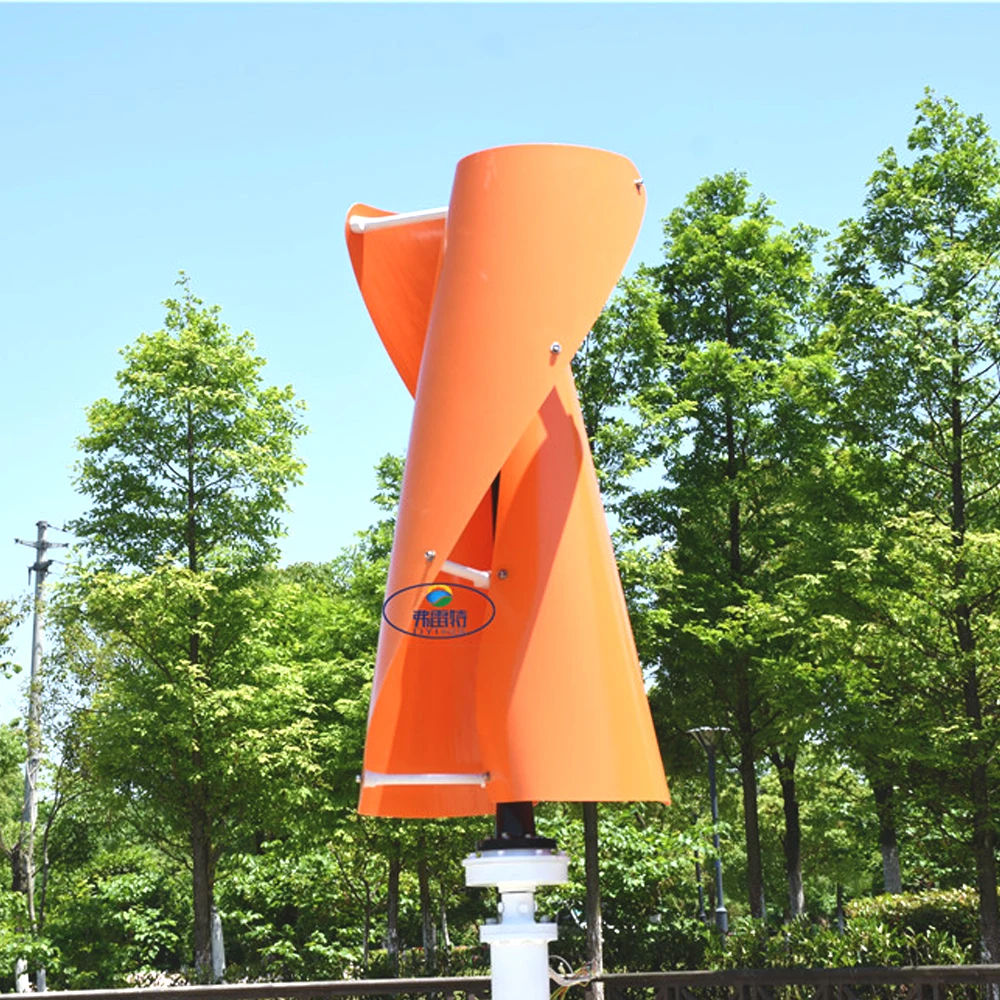

vertical wind turbine details

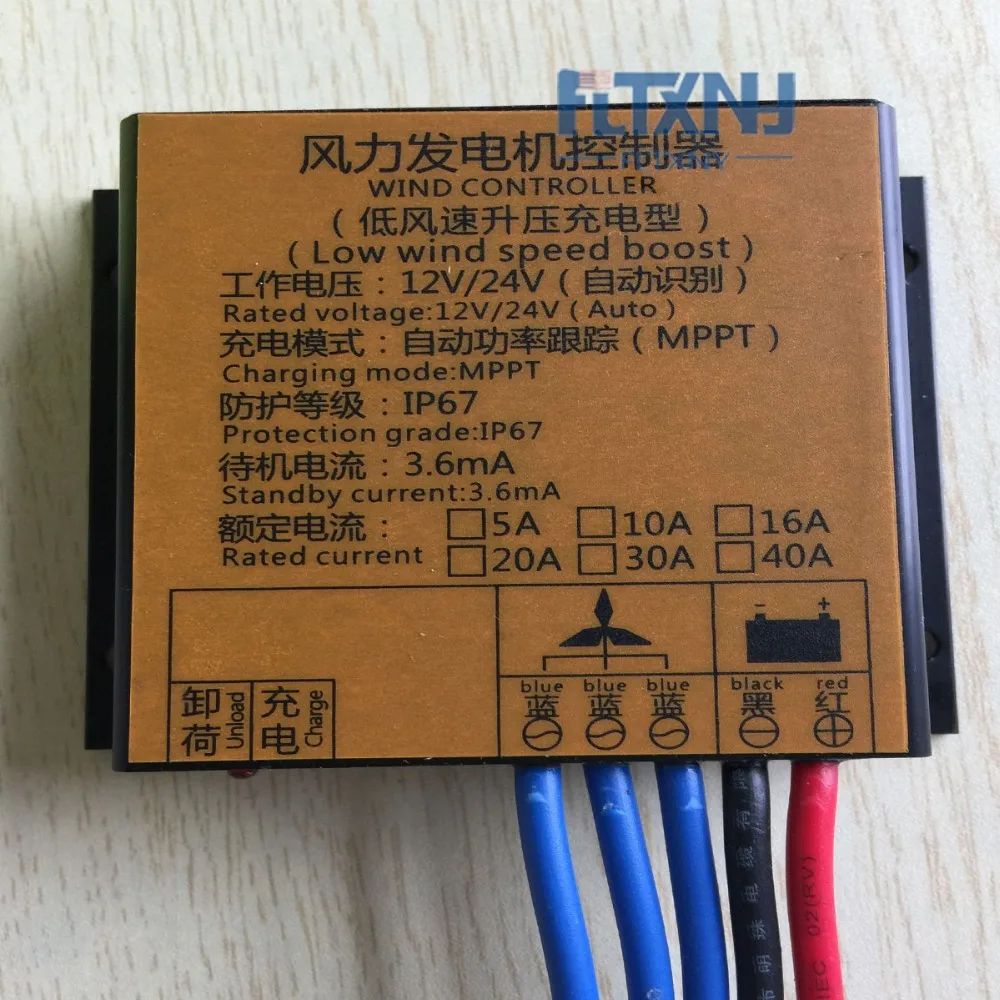

Controller information
| Items | CR-1224 |
| Rated Battery Voltage | 12V/24v |
| Rated Wind Generator Capacity（Max） | 300w/600W |
| start charging voltage | 6v/12v |
| Wind Generator Braking Voltage | 15V |
| Wind Generator Recover Voltage | 13.5V/25.8 |
| Wind Generator Braking Current | 30A |
| Display Mode | LED light |
| Ambient Temperature | -35~+75℃ |
| Dimensions(L x W x H) | 100mm×80mm×28mm |
| Quiescent Current | ≤20 mA |
| IP Protection Level | IP67 |
1.The price you paid for the item excludes any customs tax.We will not shoulder any duties in destination country.
2.We usually write the full value on the shipping/commercial invoice.if you have any requirements,leave us message, we could remark the goods as GIFT/SAMPLES on the Commercial Invoice to help you to minimize or avoid any GST or V.A.T or other Import Taxes, but we cannot guarantee no tax charges as it is depends on your country's policy.
3.Please check with your country customs office to determine what these additional costs will be prior to bidding/buying. Warranty & Return1.Refund or replacement request is available only the requests within 1 week after parcel received
& returning the item as the same condition as received.
2.Please contact us to request a return authorization. Your name, auction number, and reason for
return should be included in the email. All items returned must contain all original packaging materils.
3.Please repack the item carefully. Items returned will be tested and a new replacement will be
shipped to the buyer immediately when found defective.In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable.
4.If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.
Feedback
Your feedback is very important for us,so,please contact us directly before leaving a negative
feedback if there anything make you feel unhappy.We will try our best to work out a best solution.Thank you for your support.
Package list
1.2 pcs blades ,1 set generator and 1 set bolts &nuts.
2.main shaft 1 piece.
3. MPPT controller 1 piece.（option）
