Free Shipping 10pcs TNC female bulkhead soldering connector | Обустройство дома
Характеристики
Free Shipping 10pcs TNC female bulkhead soldering connector | Обустройство
Описание товара
Product Description
Electrical
| Impedance | 50Ω |
| Frequency range | 0~3GHz |
| Working Voltage | 500V max |
| Withstand Voltage | 1500V rms |
| VSWR | |
| Straight | ≤ 1.15 |
| Rigth Angle | ≤ 1.25 |
| Contact resistance | |
| -center contact | ≤1.5mΩ |
| -outer contact | ≤0.4mΩ |
| Insulation resistance | ≥5000MΩ |
Mechanical
Temperature range -55°C~+155°C
Durability(matings) >500 cycles
Material and plating
| Piece part | Material | plating |
| Body | Brass | Nickel plated |
| Center conductor | Brass or Phosphor Bronze | Gole or silver plated |
| Crimping suite | Copper alloy | Nickel plated |
| O-ring sealing | 6146 silastic |
|
| Insulator | PTFE |
|
Environmental
IEC 60169-16/MIL-C-39012/CECC22210
Free shipping 10pcs TNC female bulkhead soldering connector
N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
Lighthorse Technologies offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.

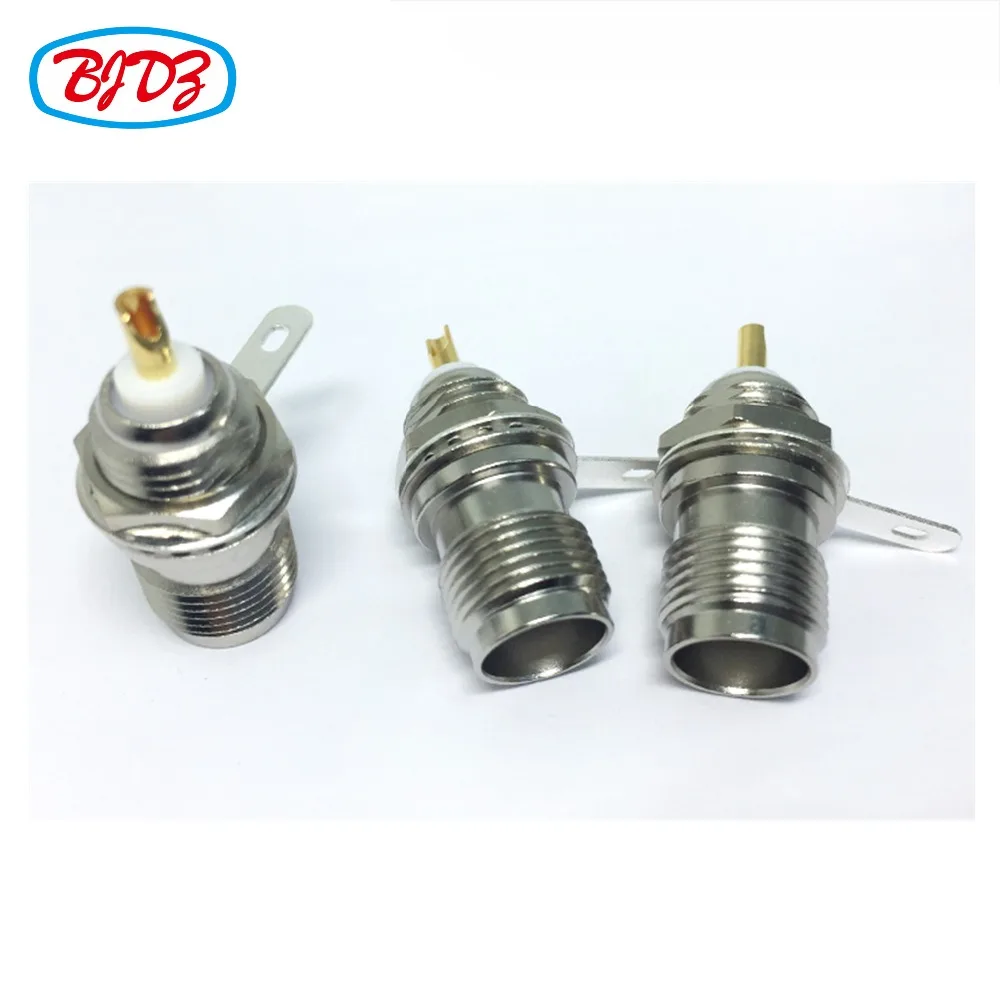

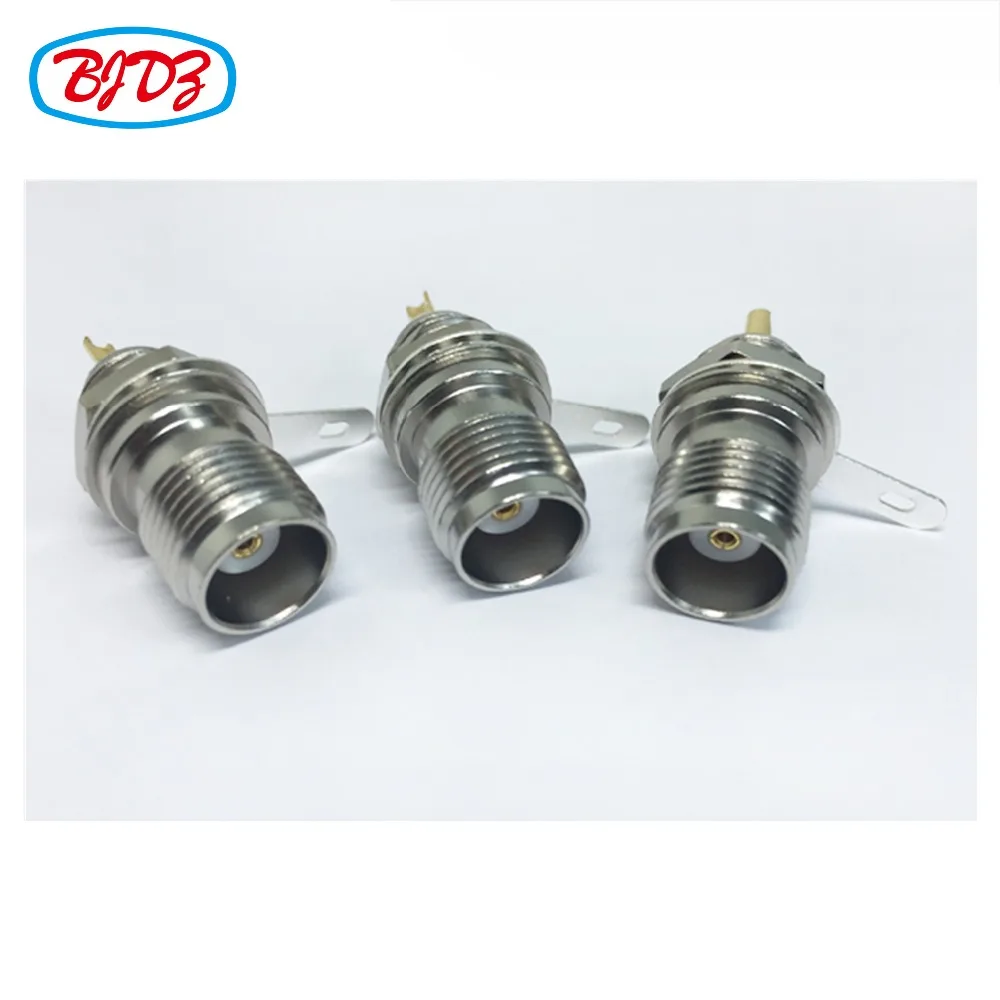

TNC female BH soldering connector
