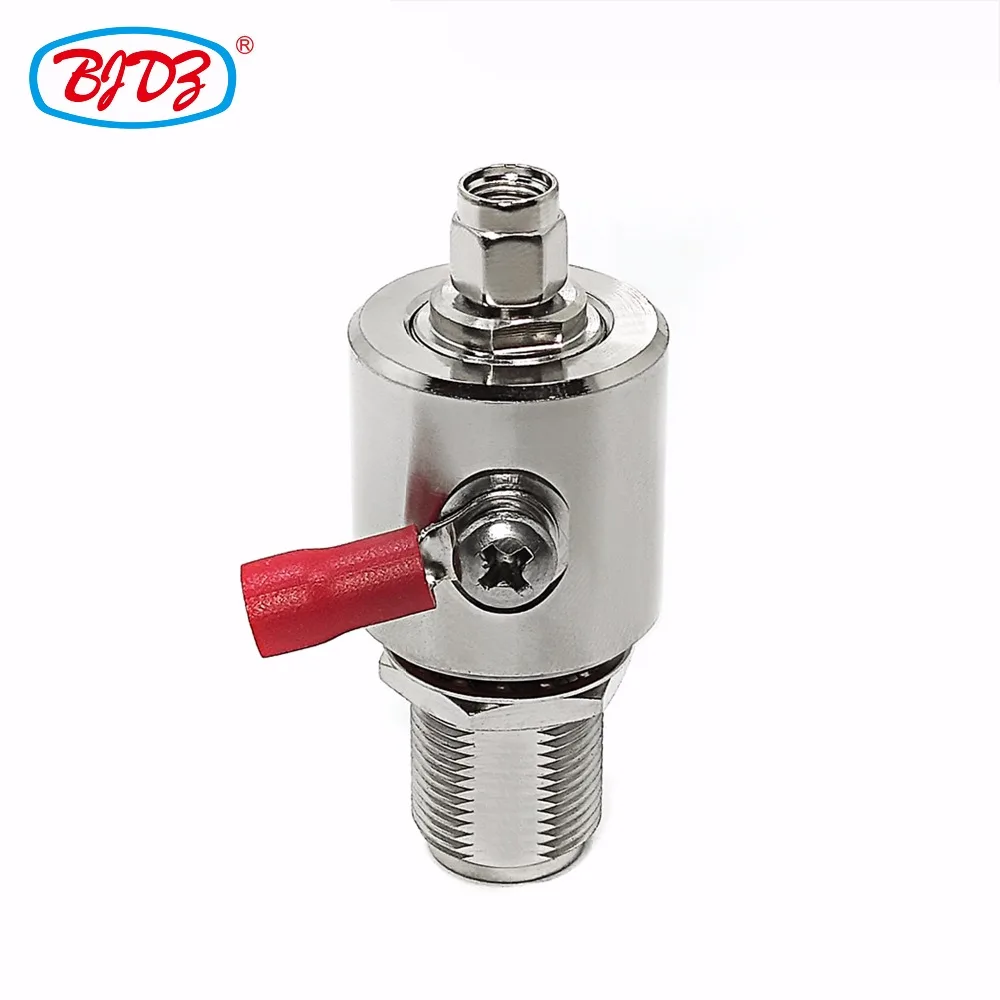

Product Description Free shipping suge arrester 0-3G N female bulkhead to RP SMA male lightening arrester
Electrical
| Impedance | 50Ω |
| Frequency range | 0~6GHz |
| Working Voltage | 2700V max |
| Withstand Voltage | 4000V rms |
| VSWR | |
| Straight | ≤ 1.2 |
| Rigth Angle | ≤ 1.3 |
| Contact resistance | |
| -center contact | ≤5mΩ |
| -outer contact | ≤5mΩ |
| Insulation resistance | ≥10000MΩ |
Mechanical
Temperature range -55°C~+155°C
Durability(matings) >500 cycles
Material and plating
| Piece part | Material | plating |
| Body | Brass | Nickel or Tri-Metal plated |
| Center conductor | Brass or Phosphor Bronze | Silver plated |
| Crimping suite | Copper alloy | Nickel plated |
| O-ring sealing | 6146 silastic |
|
| Insulator | PTFE |
|
Environmental
CECC22230/DIN47297
