Description:

Brand Name: Flight Controller

Model: F722-SE

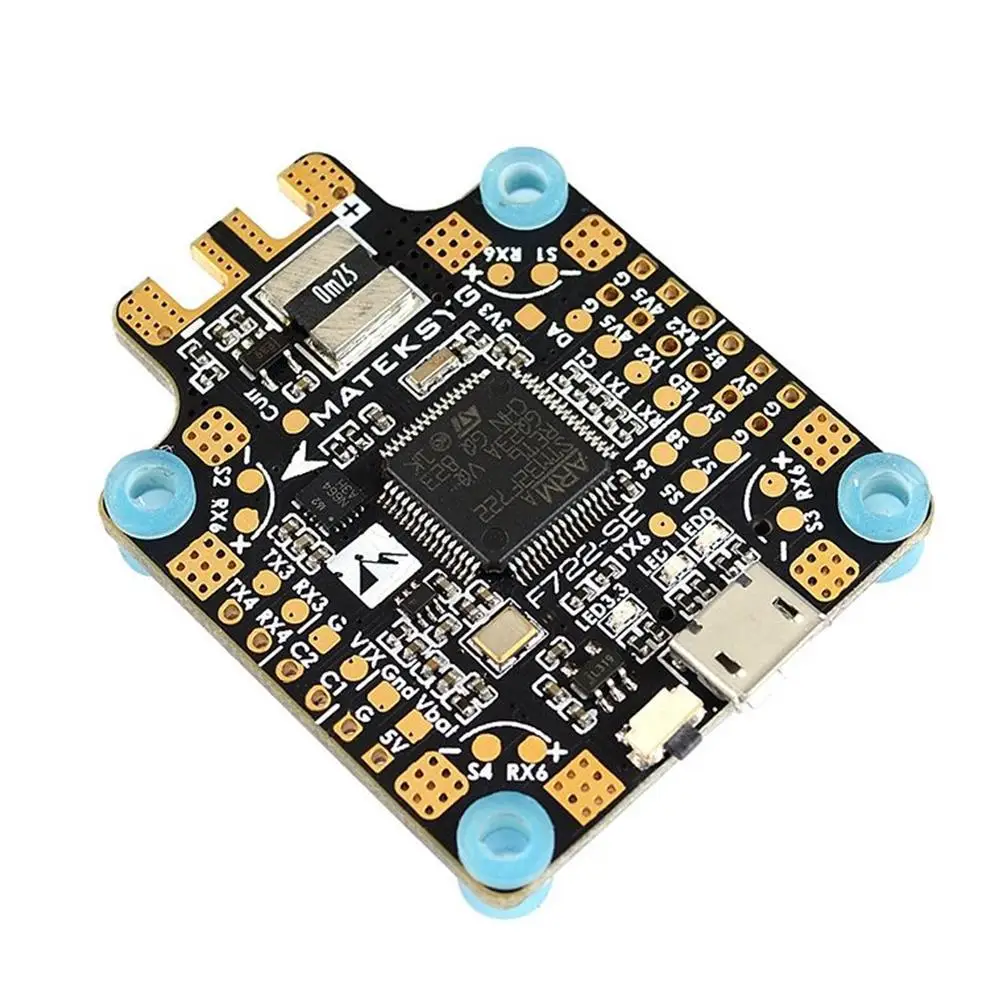

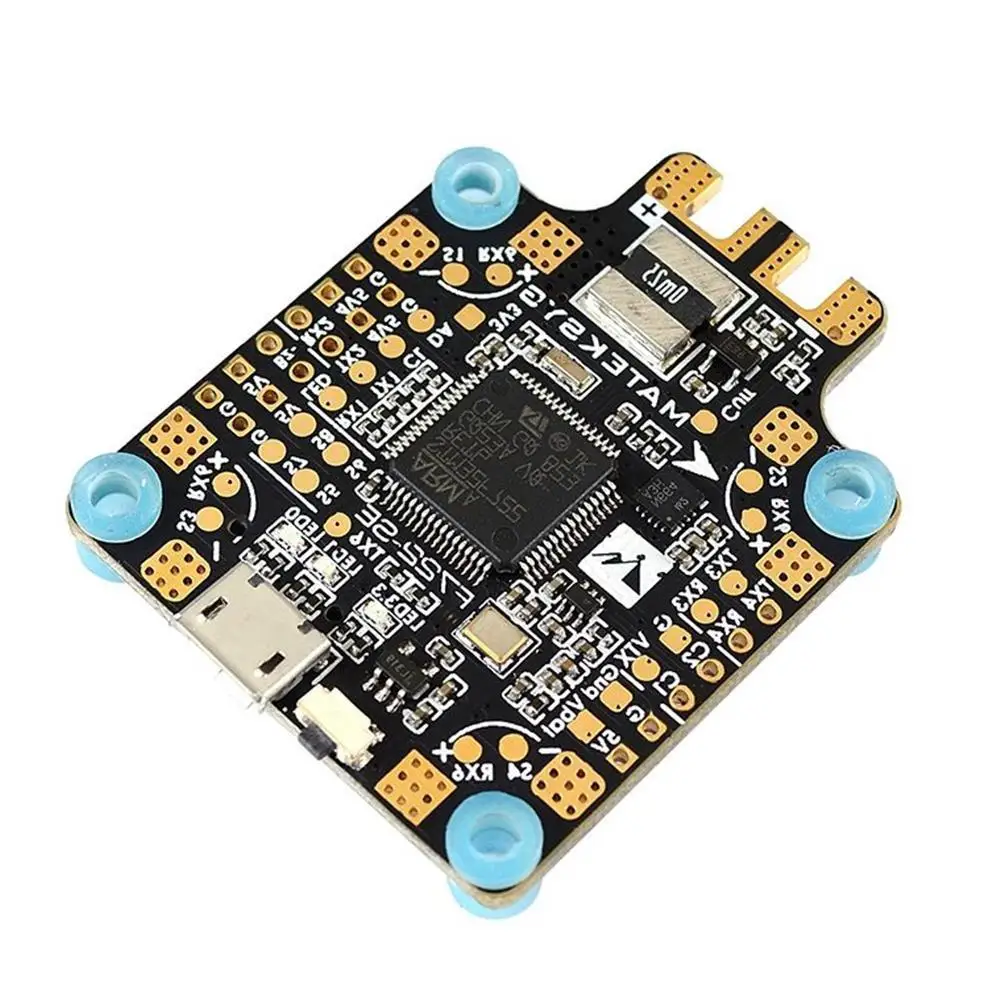

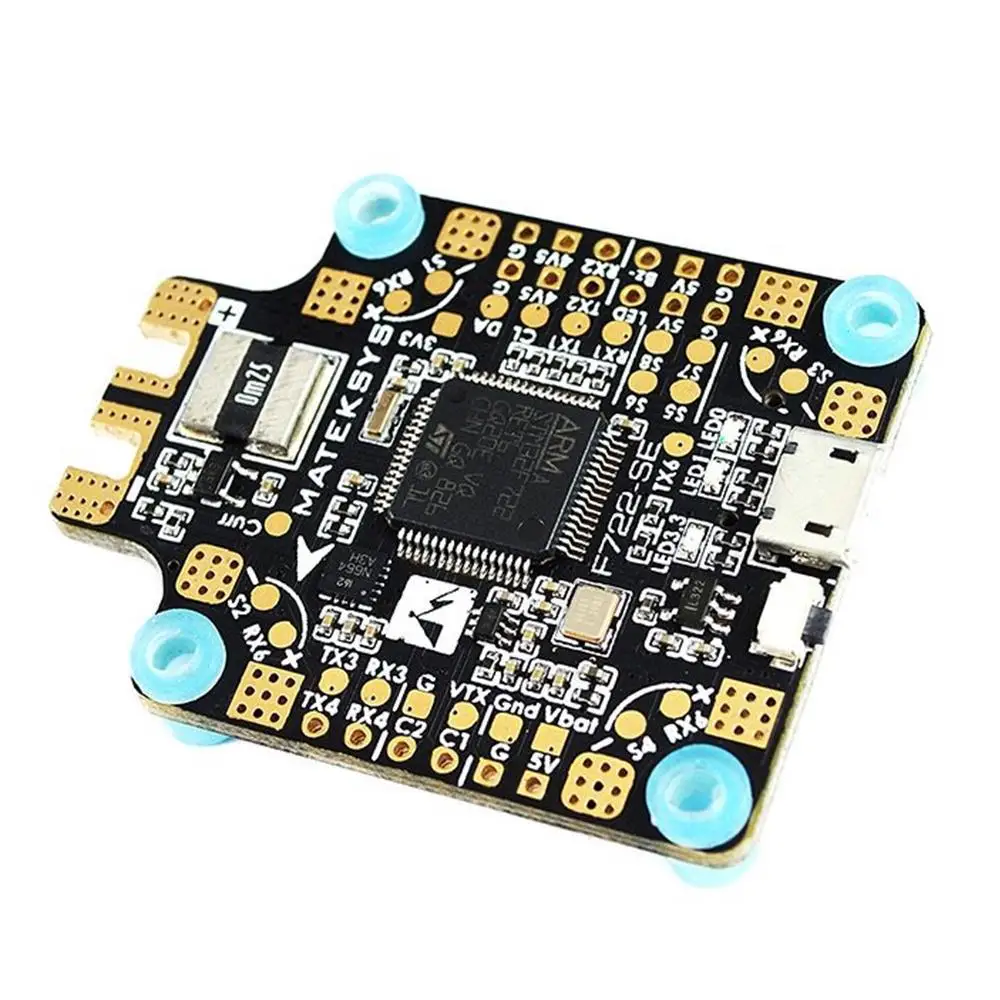

Item Name: F7 Dual Gyro / ACC Flight Controller Board

MCU: STM32F722RET6 216MHz

IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

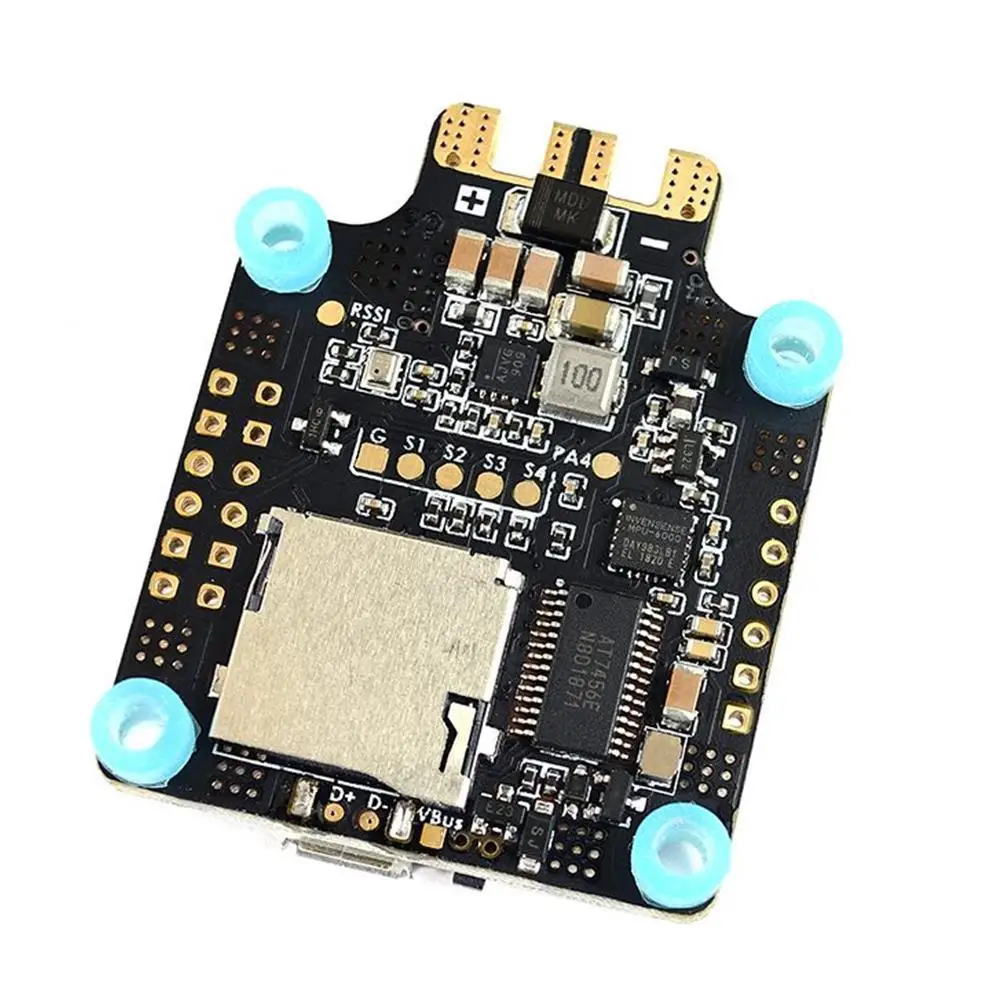

Blackbox: MicroSD card slot (SPI)

Firemware: BetaFlight / INAV

Target: MATEKF722SE

Size: 36x46mm

Mounting Hole: 30.5x30.5mm

Weight: 10g

PDB Specifications

Input: 6~36V (3~8S LiPo) w/TVS protection

PDB: 4x35A (Max.4x46A)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.200mA

Current Sensor 184A (Scale 179)

Battery Voltage Sensor: 1:10 (Scale 110)

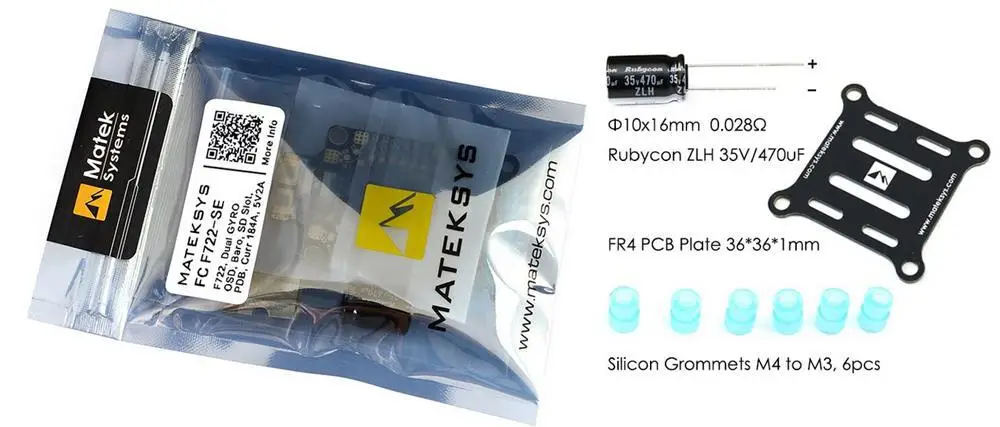

Packing list:

1x F722-SE F7 Flight Controller

1x FR4 PCB Plate 36*36*1mm

1x Rubycon ZLH 35V/470uF (Low ESR)
