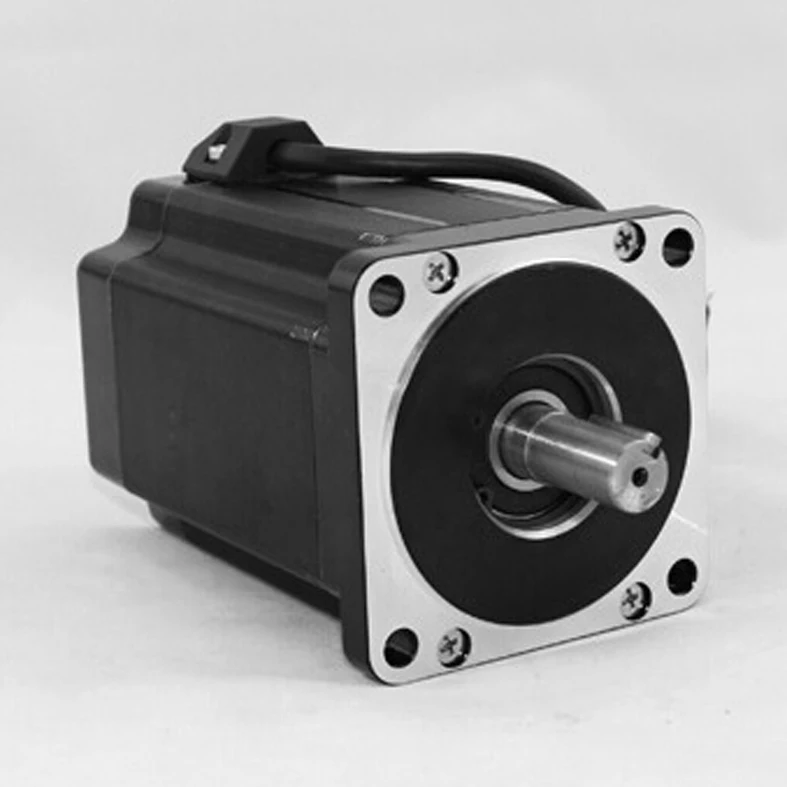

2Nm 3phase nema34 stepper motor with key way 5.8A step motor Nema34 open loop stepping motor LC397 1.2degree stepmotor
Three-phase 86 series Nema34 hybrid stepping motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise operation, stable operation and other characteristics, quality and reliable. Motor length 69mm ~ 125mm between the torque range: 2N.m ~ 6N.m, motor shaft diameter 12,14mm optional.
Product Specification:
| Motor model |
Step/angle |
Length |
Holding torque |
Current |
Resistance |
Inductance |
Rotor inertia |
Matched Driver |
Lead wire |
Weight |
| ° |
mm |
N.M |
A |
Ω |
MH |
g.cm2 |
Model | NO. |
Kg |
|
| LC397-H |
1.2 |
69 |
2.0 |
1.75 |
3.77 |
11.6 |
1320 |
LC3722A |
3 |
2.0 |
| LC397 |
1.2 |
69 |
2.0 |
5.8 |
0.5 |
0.9 |
1320 |
3MC580 |
3 |
2.0 |
| LC3910-H |
1.2 |
97 |
4.0 |
2.0 |
4.6 |
14.6 |
2400 |
LC3722A |
3 |
3.0 |
| LC3910 |
1.2 |
97 |
4.0 |
5.8 |
0.7 |
1.5 |
2400 |
3MC580 |
3 |
3.0 |
| LC3913-H |
1.2 |
125 |
6.0 |
3.0 |
2.0 |
8.0 |
3480 |
LC3722A |
3 |
4.0 |
| LC3913 |
1.2 |
125 |
6.0 |
5.8 |
0.9 |
2.17 |
3480 |
3MC580 |
3 |
4.0 |
Notes: The above is only for representative products, We can according to customer requirements to remake.
The item with H means high voltage style (AC220V), suitable for high speed. The item without H, means for low voltage style(DC20-50V), suitable for low speed.
Huge frequency characteristic curve
Product Size:
Wire Connection:
Product Photos:
Product Cetification:
