Ночное видение Full HD 1920*1080 CMOS OV2710 12 шт. ИК-светодиодов и CUT USB-камера Android Linux Windows для видеоконференций на ПК.
Характеристики
Ночное видение Full HD 1920*1080 CMOS OV2710 12 шт. ИК-светодиодов и CUT USB-камера Android Linux Windows для видеоконференций на
Описание товара
Description

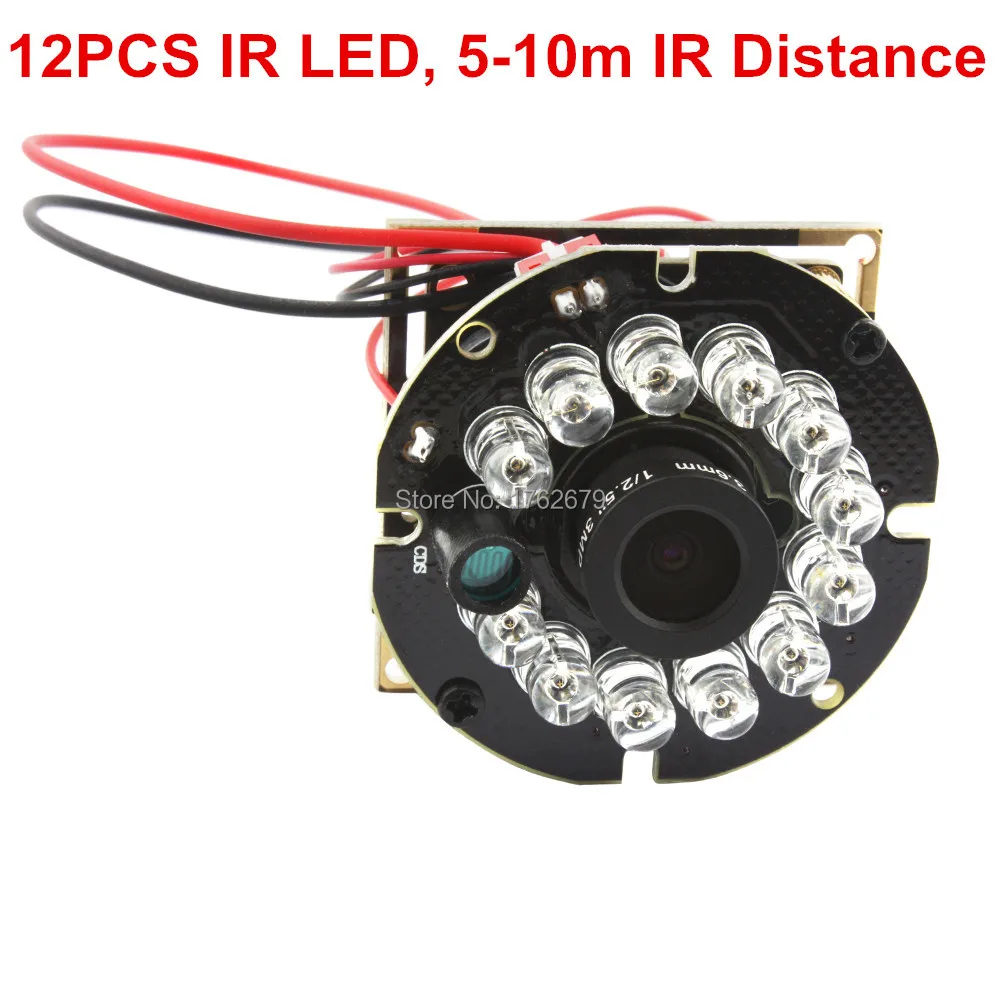

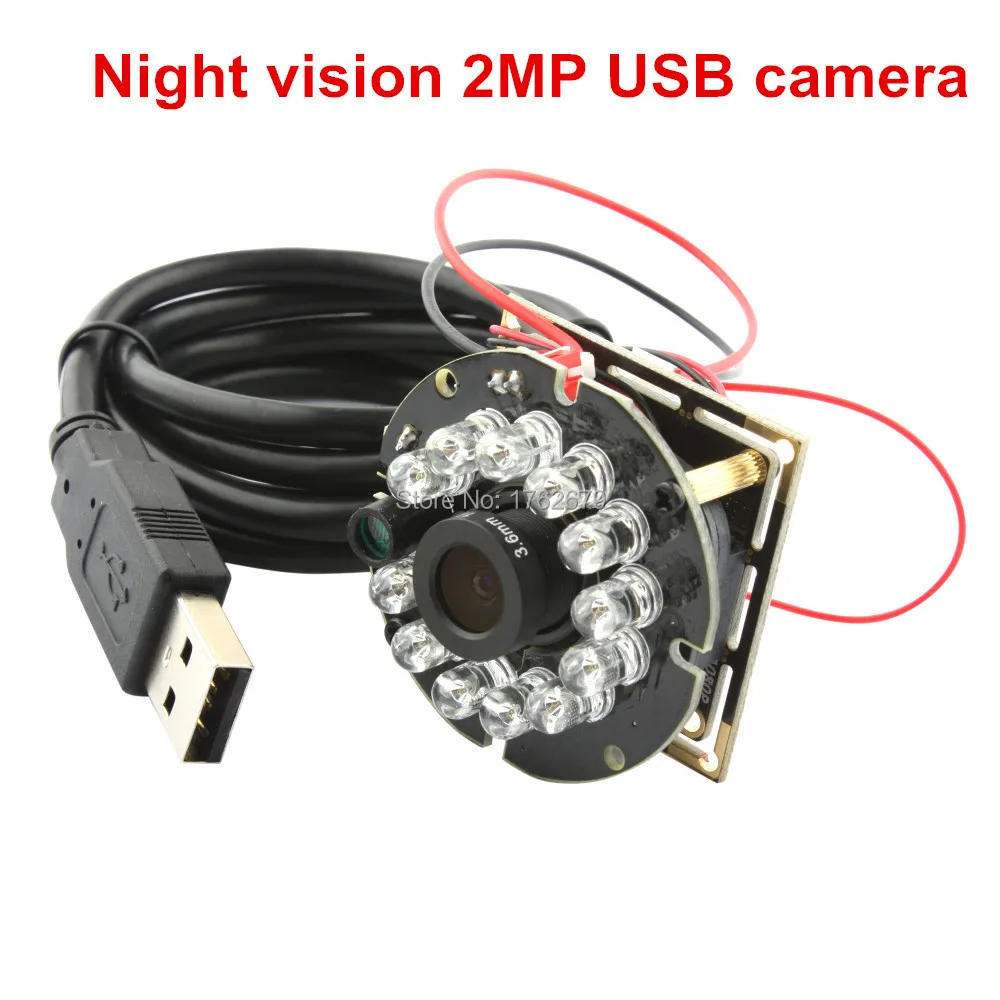

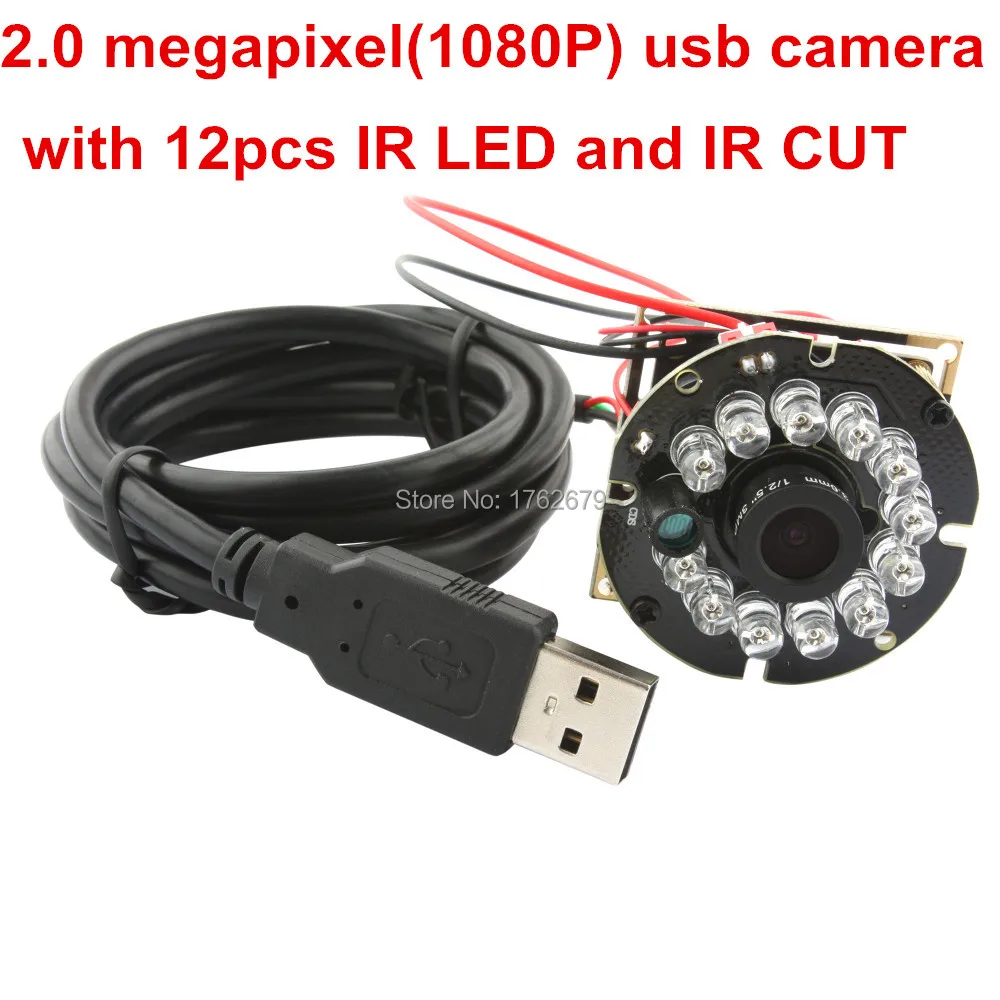

Night Vision Full HD 1920*1080 CMOS OV2710 12pcs IR LEDS and IR CUT USB Camera Android Linux Windows for PC Video Conference
The HD 1080P USB CMOS board camera module(model: ELP-USBFHD05M serials) is ideal for many applications like security systems, portable video system, video phones, industrial
machine monitoring and toys. It use high quality image sensors made by OmniVision,
one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Android, Linux, Windows , MAC, SP2 or above.
*Camera with UVC.
LENS: 3.6mm /2.1mm/2.8mm/6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
| Optional models |
ELP-USBFHD05M |

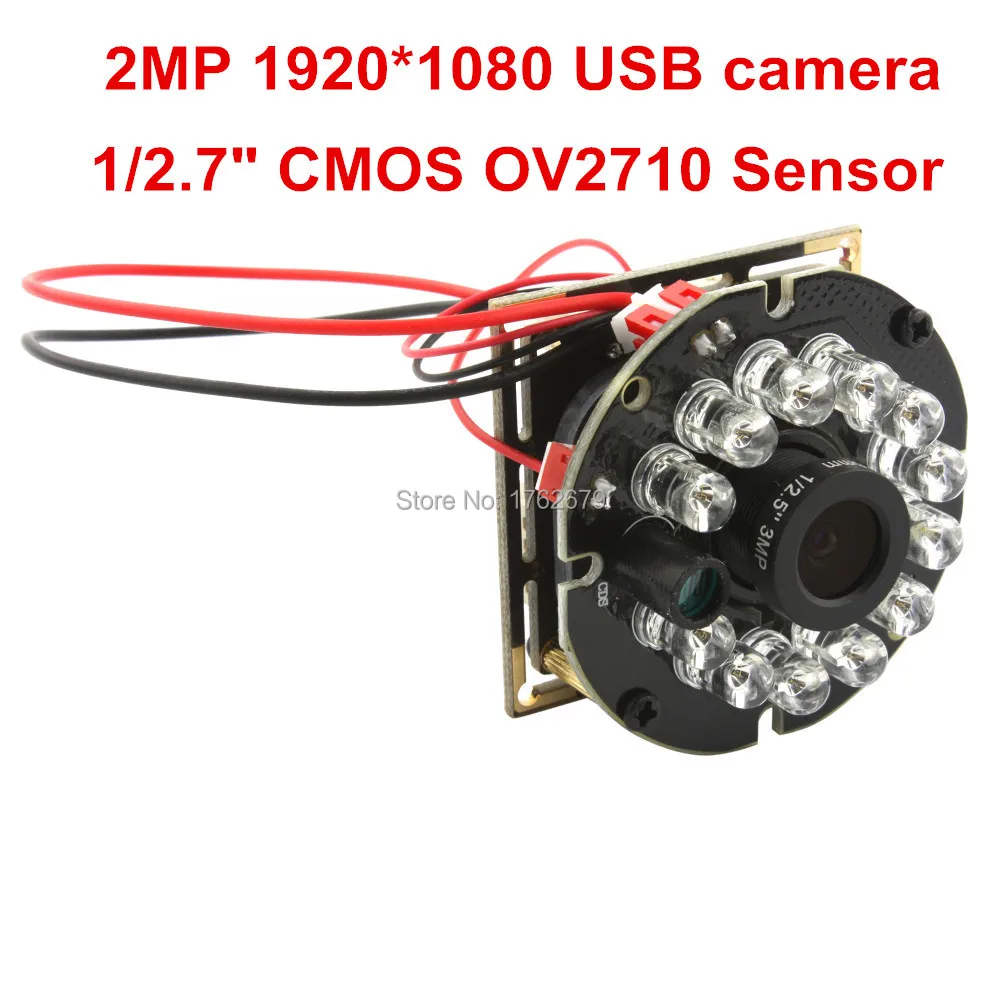

| Sensor |
1/2.7" CMOS OV2710 |
| Lens size |
200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution |
1920X1080 |
| Picture format |
MJPEG |
| USB Protocal |
USB2.0 HS/FS, USB1.1 FS |
| Support free driver |
USB Video Class(UVC)1.1 |
| Auto exposure AEC |
Support |
| Auto white blance AEB |
Support |
| Frame rate |
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps |
| Adjustable parameters |
Brightness/Contrast/Color saturation /Definition/Gamma/WB |

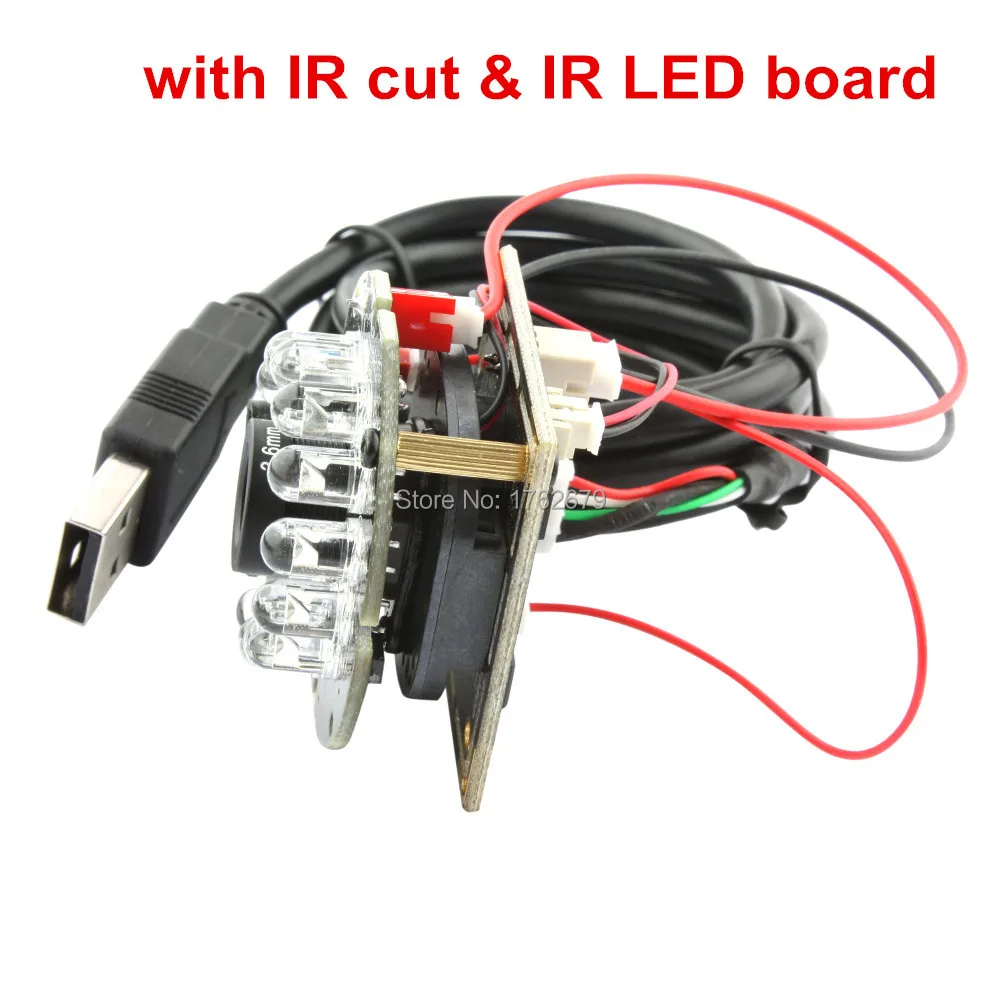

| Night vision |
with IR cut & IR LED board |
| view angle |
30-185 degree optional |
| voltage |
DC 5V |
| current |
150mA |
| work temperature |
DEGREES(-20~70) |

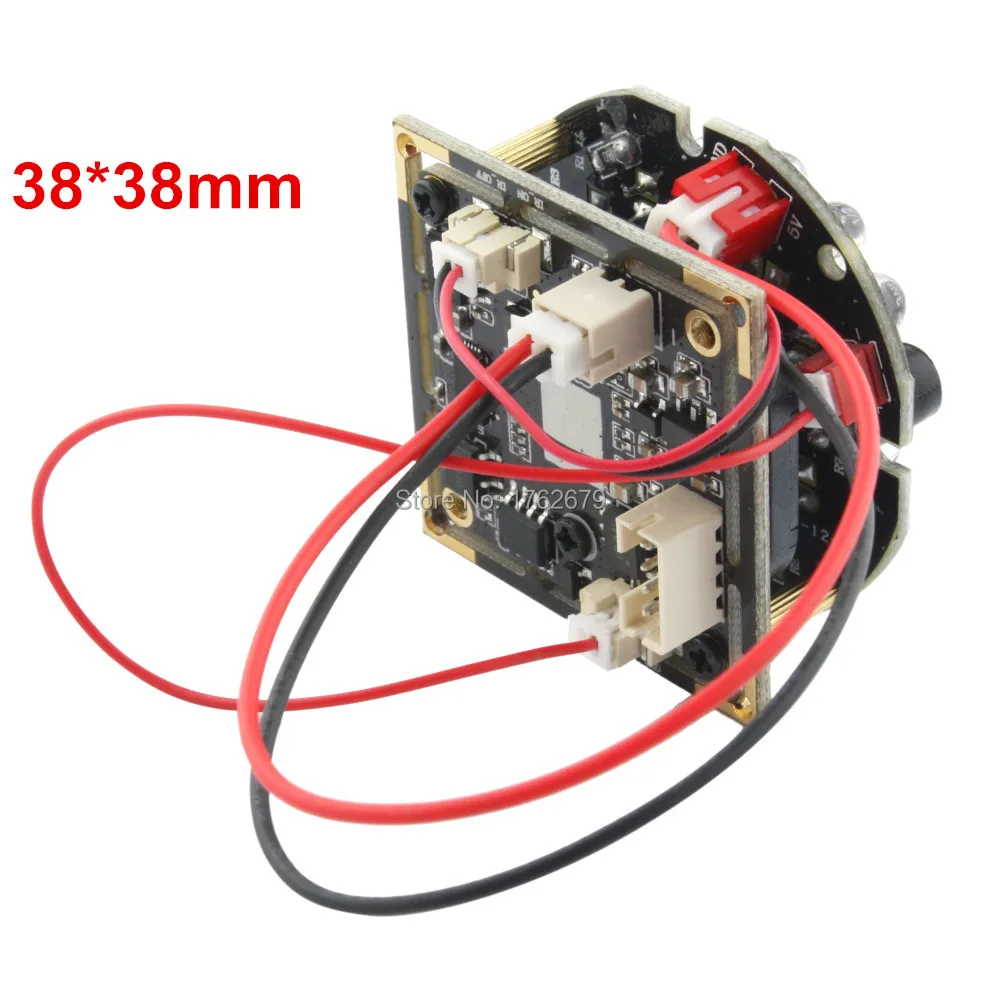

| Size |
32x32mm/38*38 |
| Support OS |
WinXP/Vista/WIN7/WIN8 /Linux with UVC |
Effective Pixels:
1920 (H) x 1080 (V) pixels
1280 (H) x 1024 (V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
352(H) x 288 (V) pixels
320 (H) x 240 (V) pixels
Daytime effect
Night vision effect
Package
We also have dome case for this camera board
ELP usb camera module
