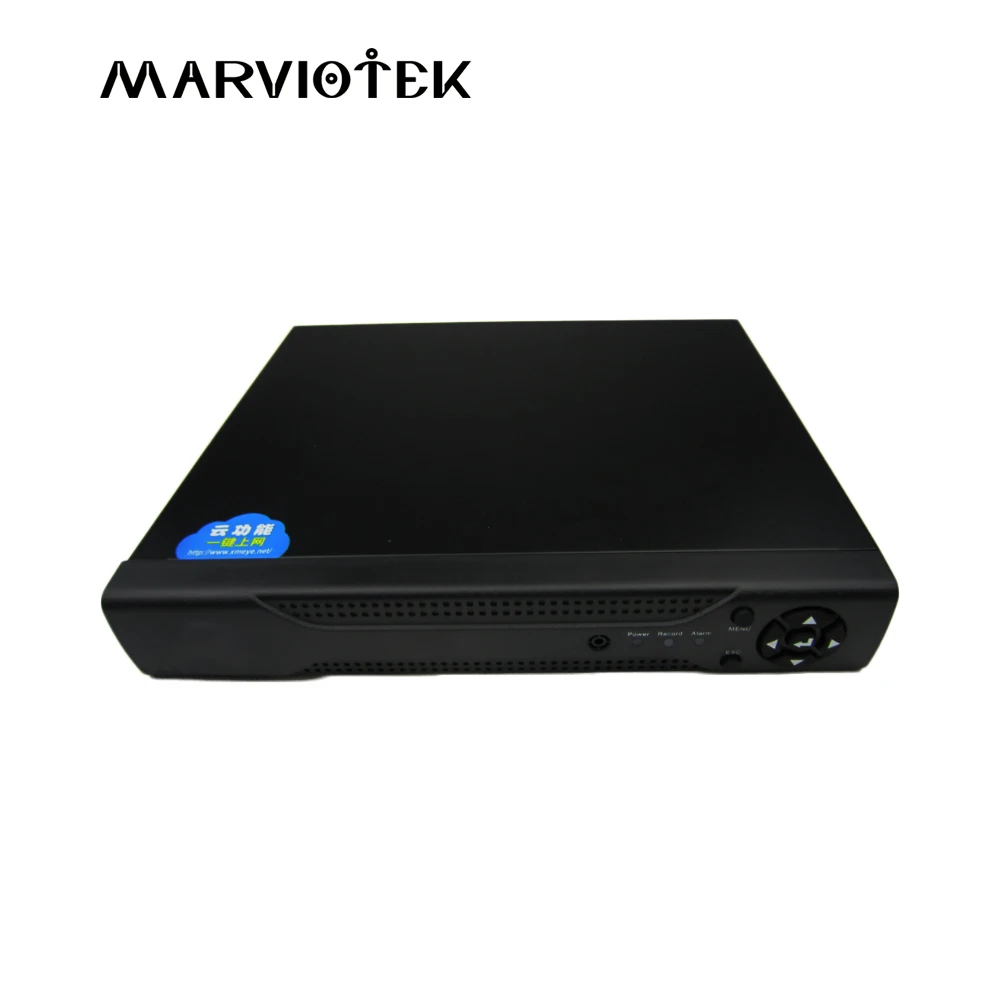

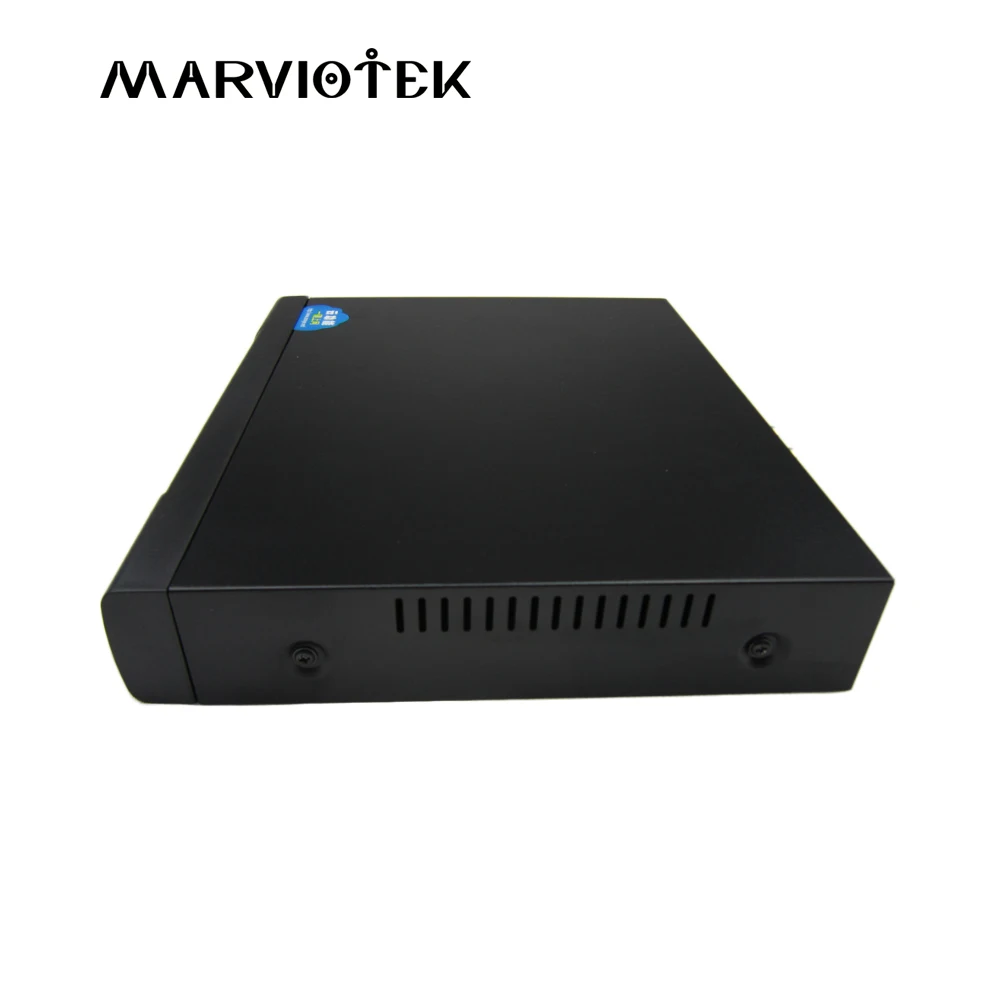

8CH AHD/TVI/CVI/CVBS/IP Digital video recorder DVR HVR NVR 1080NH AHD, support cctv analog/ahd/cvi/tvi/1080p ip Camera onvif

Ø with Onvif standard protocol:can be compatible with IP Cameras with onvif,and can be good compatible with ONVIF Client. Support AHD/TVI/CVI/CVBS/IP signal decode and encode. perfectly compatible with AHD/TVI/CVI/CVBS/IPØ One key to Network:Without any complicated setting,via www.xmeye.net cloud service,easily realise Internet penetration,one step realise remote monitoring.Ø Compression algorithm: H.264 High Profile,advanced filter technical make data rate lower 30%Ø Playback quality: realtime synchronous decode playback.Ø Video access:AHD/TVI/CVI/CVBS/IP 5 different signal inputØ  Mobite monitor: Support multiple cell phone monitor(iPhone,Android)Ø  Display: Support VGA,  HDMI output at the same time. Real HD OutputØ Operation interface: similar as CMS Client style, simple Operation style, easily learning. Ø  Network:Powerful Internet service(Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permission, IP search, Alarm centor etc), Perfect matching(WEB, Client, SDK), easily realise interconnectionØ Browsers: Support multiple Browsers(IE,CHROME,FIREFOC,SAFARI)Ø Remote Access: Own domain name services(ARSP), remote monitor one key turn on, offer 3322, dyndns, oray, myq-see etc Domain name serviceØ Device  port:Support 1pcs SATA ports ,Support 2 USB2.0 ports, USB mouse , Backup, read and write,upgrade etc Operation.Ø Differentiation:boot logo freely change, more than 20 languages, more than 10 GUIs, and remote controls,more tens of keypad to combination chosen,make your product different from Others.Ø Others:perfect protection circuit, particular triple watch dog Function, insure Device not crashed, with Special Black Box Technology, can monitor the entire process of Device, lower down maintenance cost.

Features	Specifications:
System	Processor	hisilicon
	OS	Embedded Linux System
	System resource	multiple Channels Recording, single realtime playback, multiple Channels multiple users Network access, USB Backup.
GUI	Operation GUI	16 bit True color Graphic Operation interface, Support mouse Operation.
	screen display	1/4/8/16 screens
Video	video standard	PAL(625TVL,50F/S); NTSC( 525TVL, 60F/S)
	Picture encode	H.264 (High Profile);
	monitor quality	VGA HD; HDMI HD
	Playback quality	1080P/1080N/
		720P
	video access	8*AHD ,8*TVI,8*CVI,8*960H,16*1080P (IP)
	Motion Detection	Support
Audio	standard	G.711A
	intercom	Support
Record and playback	Record mode	manual>Alarm>Motion Detection>timing
	local playback	1080P/1080N/960P
	Record retrieve	time point retrieve, calendar retrieve, event retrieve, Channels retrieve.
Storage and Backup	Each Channels taken up HDD	video:CIF 4~5G/day*channel, D1 8~10G/day*channel, 960H 12~20G/day*channel,720P 24~30 G/day*channel, 1080P 40G~/day*channel; Audio: 691.2M/day*channel
	Record save	HDD, Network
	Backup mode	Network Backup, USB mobile HDD,USB RW

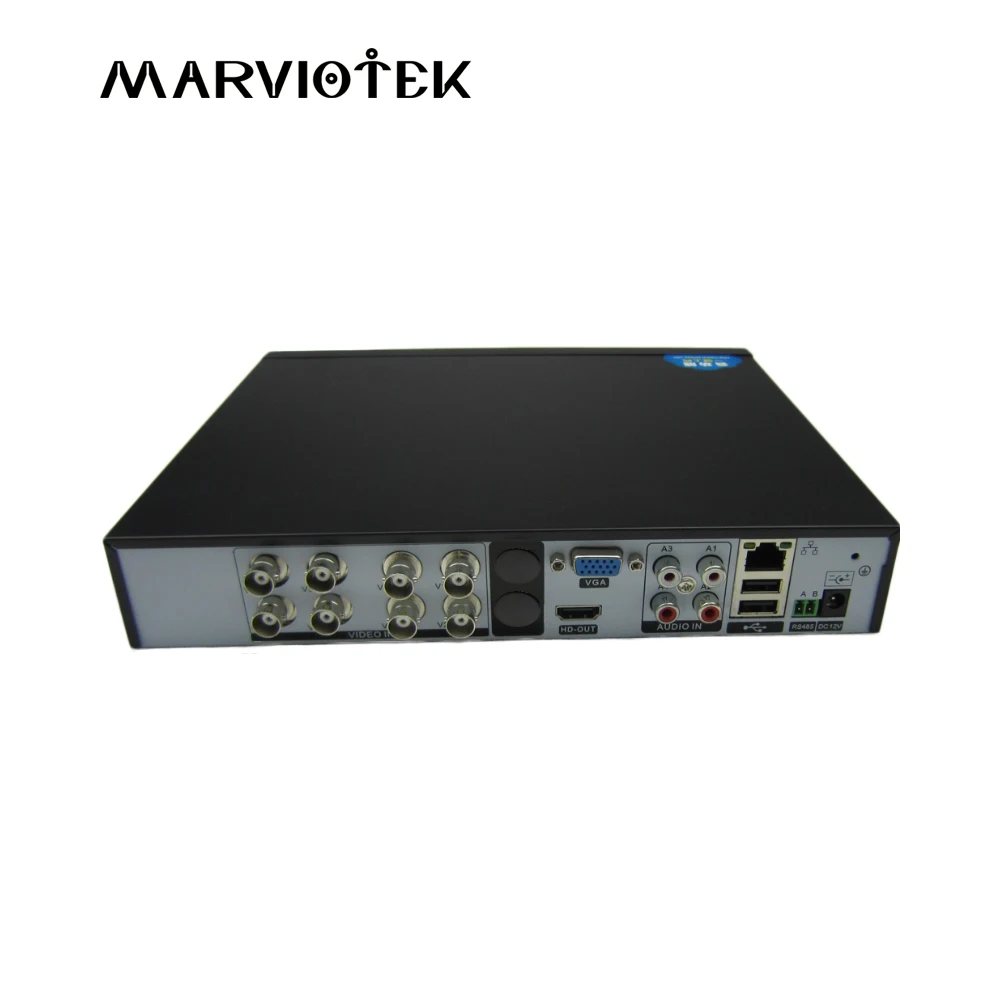

Ports	video input	RJ45
	video output	1 ch VGA,1 ch HDMI
	Loop-through output	No Support
	Audio input	4 ch RCA
	Audio output	1 ch RCA
	Alarm input	0
	Alarm Output	0
	Internet ports	RJ45 10M/100Mauto adapt Ethernet ports
	PAN/TILT control	1 RS485,  Support multiple PTZ protocol.
	USB	2 USB ports
	HDD ports	1 pcs SATA ports(each max 6 TB)
	Wireless ports	NO
Others	Onvif protocol	Support
	Power supply	12V 2A
	Dimension	340mm×332mm×70mm





How to distinguish the DVR is good or bad "color: rgb(192, 0, 0);">Faster Operation System(Embedded Linux Operation System);

Easy Friendly User Interface Software;

High Speed CPU and Other Excellent Parts(HIsilicon is sub-company from HUAWEI);

The Best Workmanship.

Why choose us "color: rgb(192, 0, 0);">Only Use Best Hardware and Adapter, Assuring Stable Quality;

Factory Directly, You Can Get the Most Professional Technical Service and Best Price;

Provide Free Tech Support (We Can Support You by Teamviewer);

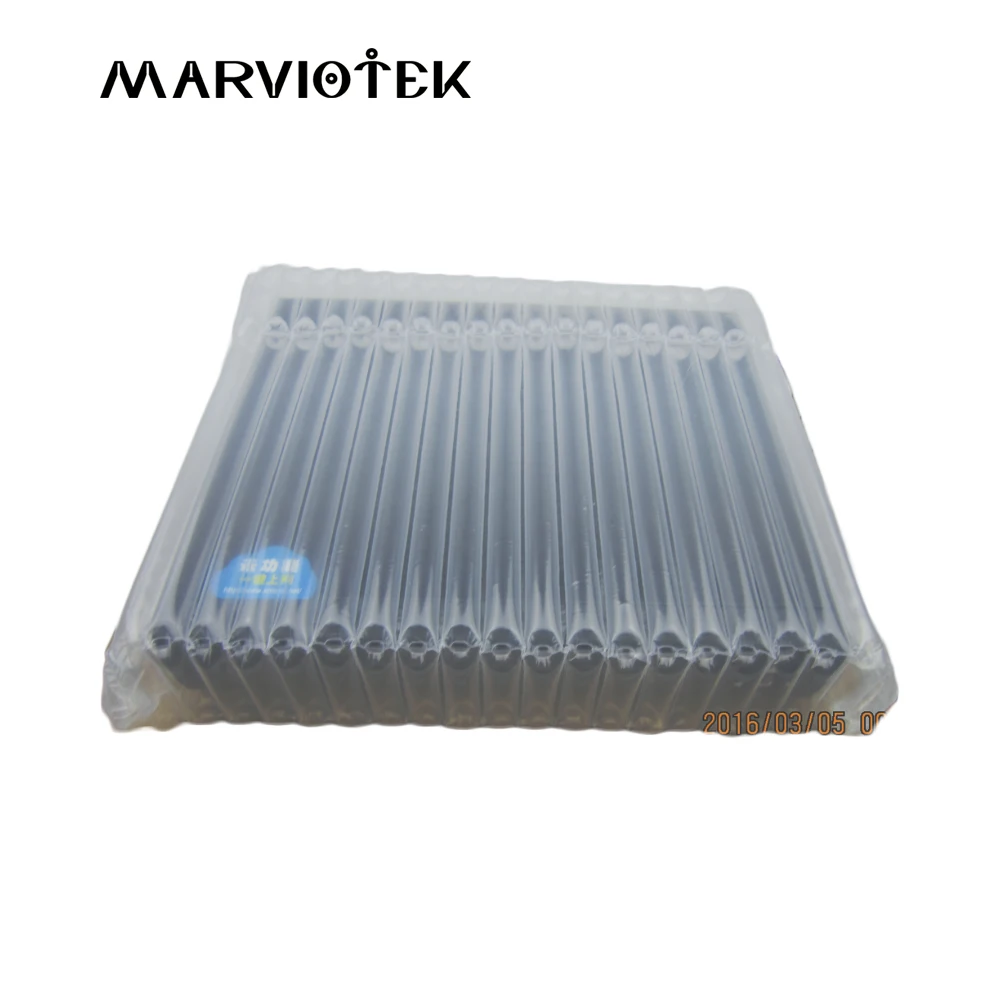

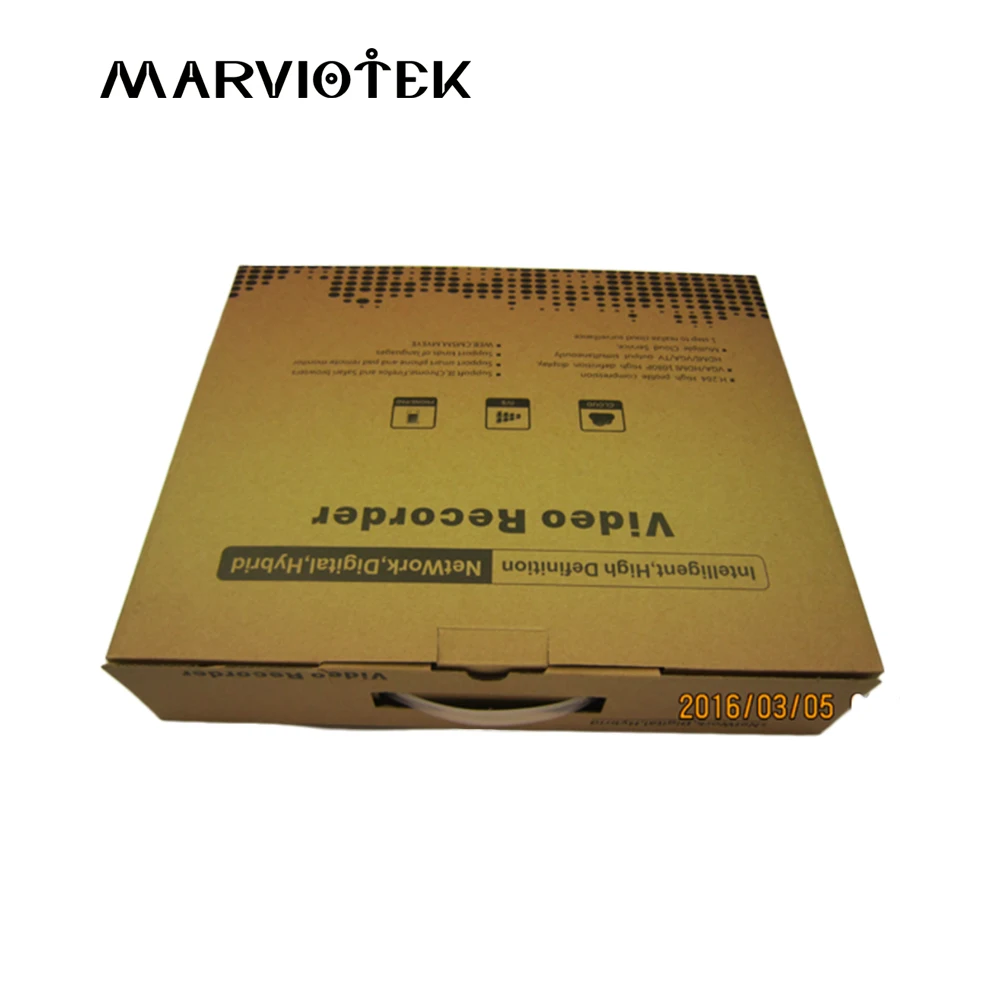

Safe Carton Packaging Guaranteeing Safe Shipping.



Features:

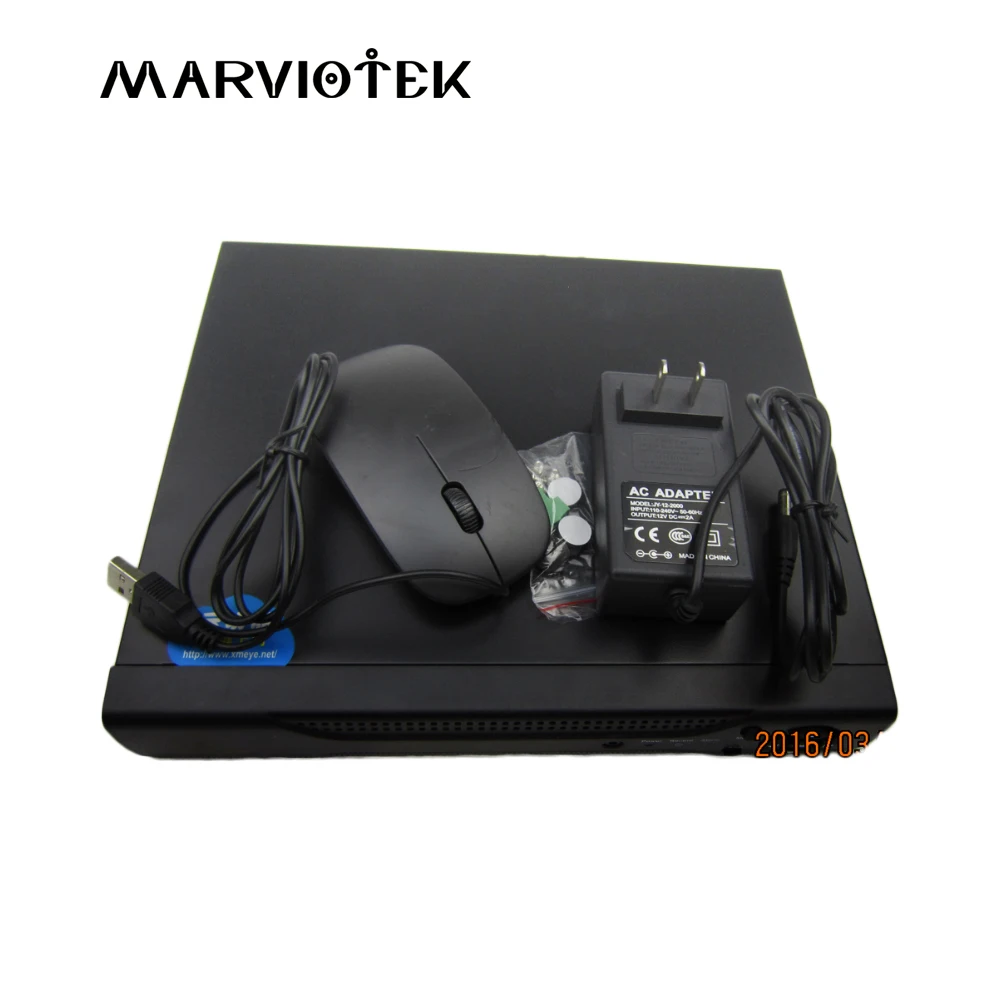

1. With H.264 High efficiency Video Compression2. 8CH support 4CH playback at same time3. 8CH with PAL:200fps support (1D1+7CIF)@25fps/ch,NTSC: 24 0fps support (1D1+7CIF)@30fps/ch4. Support Symbian, S60V3/V5, Windows mobile, Iphone, android , BlackBerry, mobile phone live view via 3G net5. Support 1PCS*3TB HDD, with 2 USB2.0 port, support USB, mouse, backup, burning, upgrade6. Strong Network server, support IE review and CMS(can manager over 500 units DVR)7. With Chinese, Russian, English, Italian, Portuguese, Spanish, ........ , Arabic 25 languages8. Build-in 3322.org,dyndns.net, oray.net, myq-see.com free DDNS.9. Build-in own free DDNS10. Support HDMI High Definition output (1280 * 1024), support widescreen LCD(1440*900)11. With P2P Cloud function  Packing List:
