CoMica CVM-WM100 PLUS UHF 48-Channels Mono/Stereo Real-Time Monitoring Wireless Microphone with Dual-Transmitter and One Receive |

CoMica CVM-WM100 PLUS UHF 48-Channels Mono/Stereo Real-Time Monitoring Wireless Microphone with Dual-Transmitter and One Receive

CVM-WM100 PLUS

COMICA CVM-WM100 PLUS UHF 48-Channels Mono/Stereo Can Real-Time Monitoring Wireless Microphone with Dual-Transmitter and One Receiver.

Description：

WM100 PLUS is a wireless microphone with dual-transmitter triggered by one receiver, with two AA batteries. It utilizes UHF wireless FM technology and LCD high-resolution lattice screen, 16-level adjustable volume, and is integrated into LCF(Low cut filter) , Auto IR Channel-match, Stereo / Mono switchable audio mode, RF signal strength adjustment, MIC/LINE IN input dual selection, Power monitoring at receiver end, Sound pickup dynamic display, Backlight adjustment and other functions, at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level;

Main features:

. 1-trigger-2,Perfectly Support Two Transmitters and One Receiver Work Simultaneously

. Working Distance Up to 100m (Open Area 100m, 60m in area with obstacle)

. 48-channels for Multiple Devices Work Together

. M/S Switch, IR Sync, LCF, 16-levels Adjusted Gain Control, Muting Functions

. Two Power Supply Modes（AA batteries and support external supplying）

. Support Real-time Monitor

. Volume Dynamic Monitor

. Adjusted RF Power

. Lattice LCD Display, High Resolution

Notice：

. Transmitter should be used more than 10cm from Receiver, when the distance is less than 10cm, Receiver’s wireless signal receiving part will take protect action to shut down wireless signal receiving, then audio may be intermittent, which is normal;

. When using auto IR sync, please stay within 30cm, otherwise the signal may be so weak that the sync will not be successful;.

. In the case of stereo/mono mode switch, please preset the mode before using to avoid the transient interference caused by switching during usage;

. The antenna will affect the working distance. Please protect the antenna and avoid any man-made damage;

. The working distance will be affected by the surrounding environment. Please try to keep the environment open without interference during usage, and close the WIFI of the device itself;

. When using this product in a short distance, it is recommended to set RF strength at ‘LOW’ to reduce the power consumption;

. For smartphone shooting, customers must separately purchase a TRS-TRRS audio converting cable,and pay attention to set the mobile phone mode to 'Flight Mode' to avoid incoming call interference(It does not support the partial original recording of android systems, the third-party APP is recommended to be used in this case);

. Please keep this product in dry environment;

. Do not expose the device in rain or humid environment, otherwise there will be a danger of short circuit;

Specification：

Lavalier Transmitter TX

Receiver RX

Multiple Selections

WM100 = Transmitter + Receiver

WM100H = Hand-held Transmitter(HTX) + Receiver

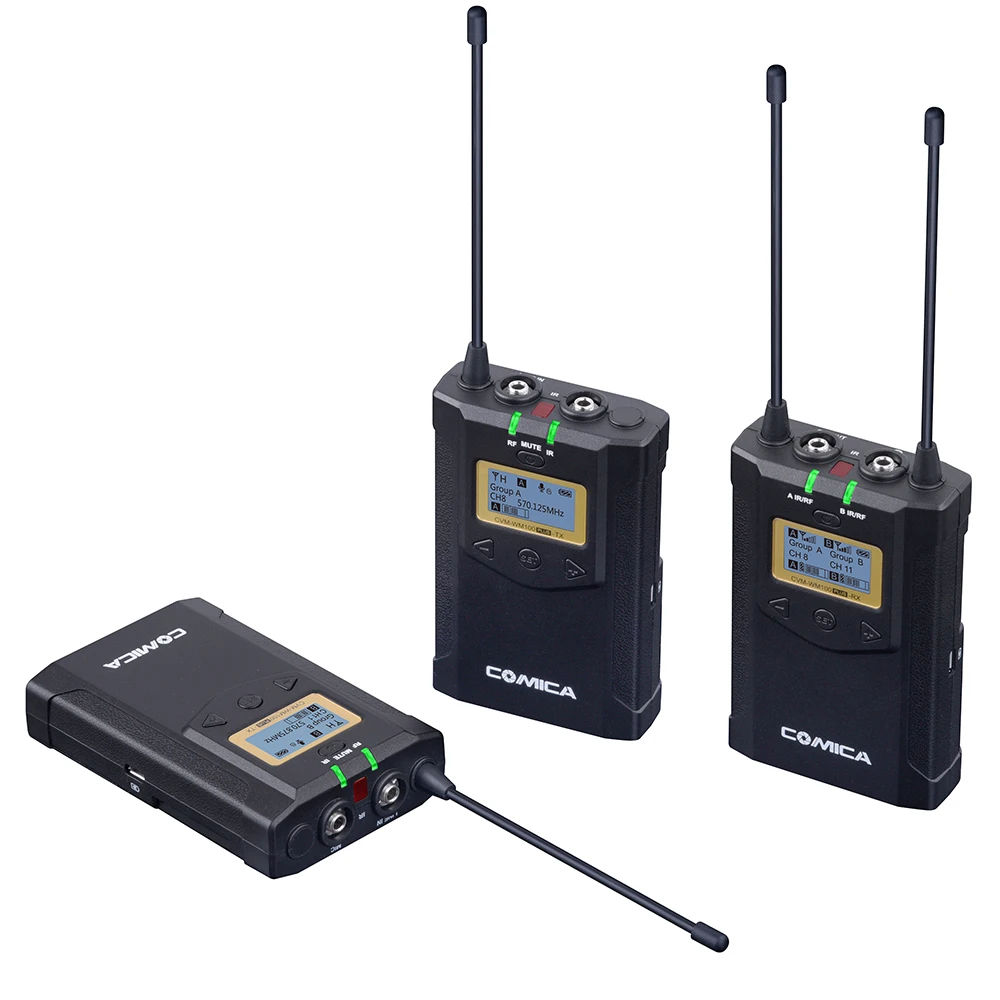

WM100PLUS = 2 Transmitters + Receiver

WM100HTX = Hand-held Transmitter(HTX)

NOTE: The camera in the image is NOT included!
