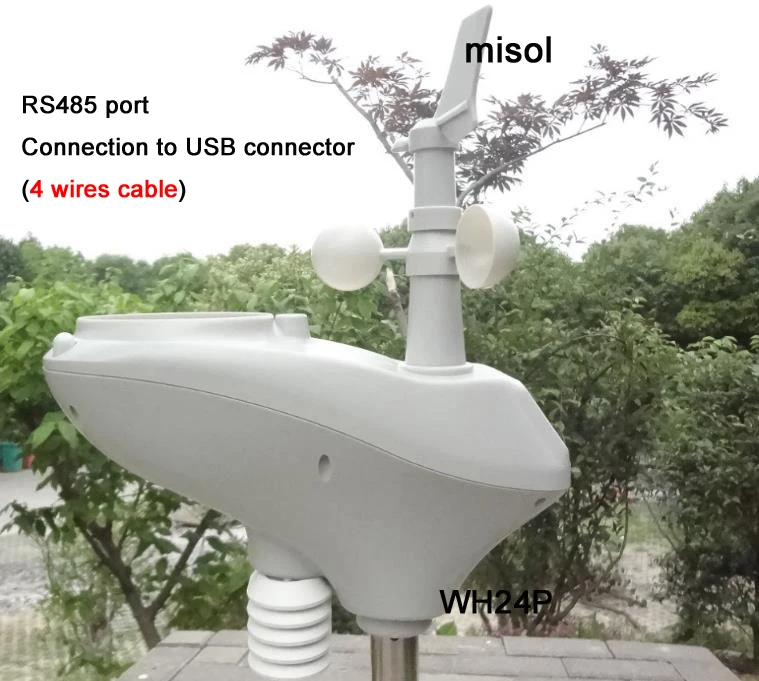

Description:

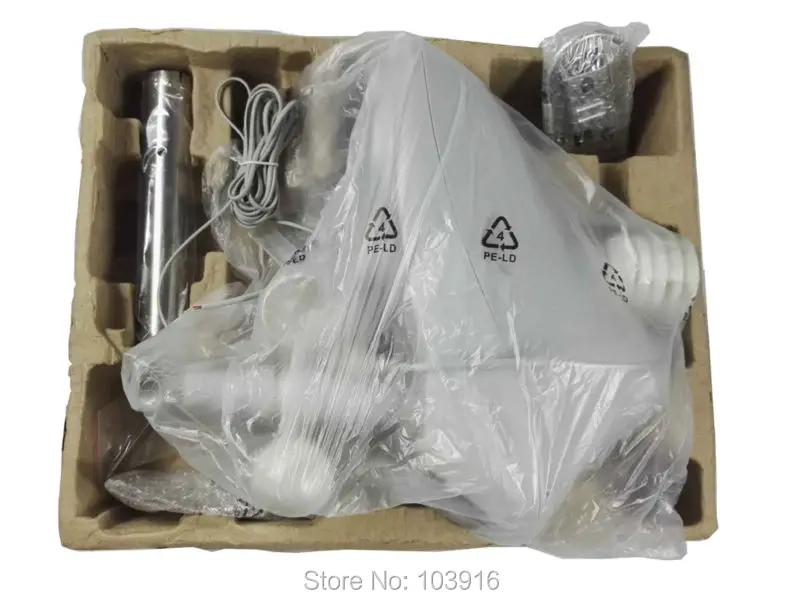

This listing includes: 1 unit of weather station.

- It will measure: temperature, humidity, rain volume, wind speed, wind direction, light, air pressure.

- With RS485 port

- With cable: 4 wires cable, length: 10 meter

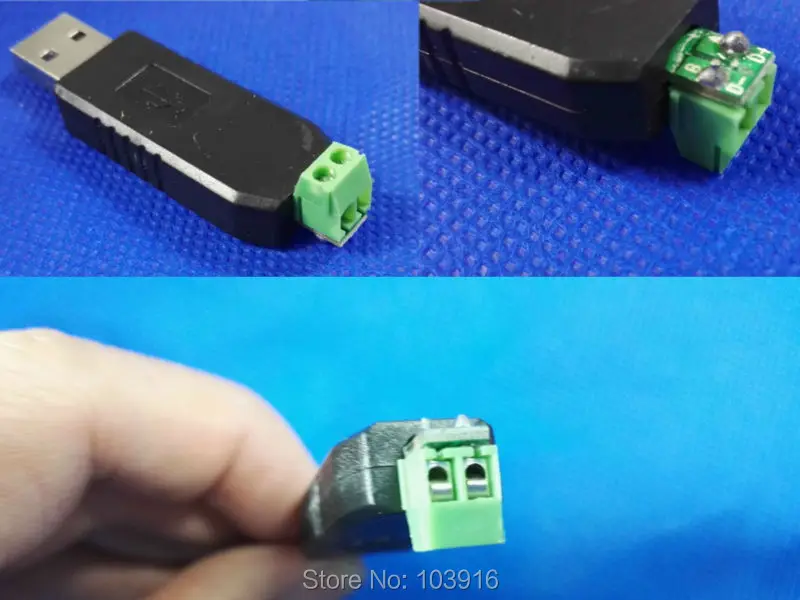

- Including 1 unit of Adaptor (RS485 to USB) (convenient to connect to computer)

- No display for it

- Communication protocol will be provided.

Application: it is suitable for the customers to collect the data from the weather station through the cable by their own designed software, to their own server(computer).

Attention: Before order, please ensure you know how to design the software to collect the data. What we can support only is to provide the communication protocol to you.

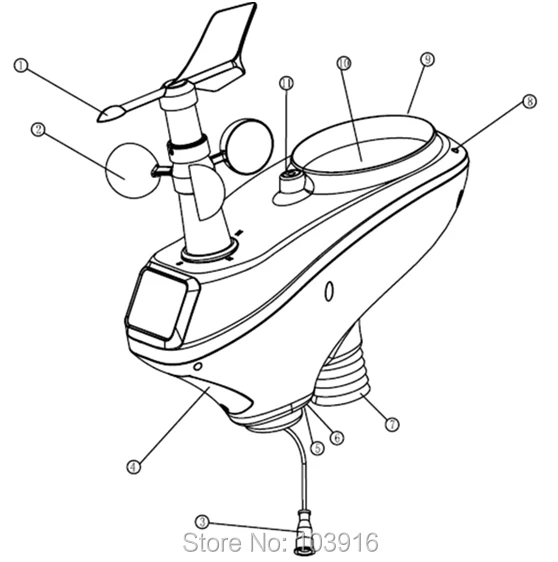

1. Wind Vane

2. Wind Speed Sensor

3. water proof connector

4. Battery compartment

5. LED Indicator

6. Reset button

7. Thermo-hygro sensor

8. UV sensor

9. Light sensor

10. Rain collector

11. Bubble level

Connection to USB connector (4 wires cable)：

Black wire： GND

Red wire： USB A  (D+)

Yellow wire： USB B (D-)

Green wire： VDD (4.5V -6V)

Specifications

Communication protocol(UART format):baud rate:9600, parity: NONE, bits:8, stop:1

Temperature range              :     -30˚C--60˚C

Accuracy                       :     + / - 1 °C

Resolution                      :     0.1˚C

rel. humidity range               :     10%～99%

Accuracy                       :      +/- 5%

Rain volume display             :     0 – 9999mm

Accuracy                       :      + / - 10%

Resolution                      :      0.3mm (if rain volume < 1000mm)

                                     1mm (if rain volume > 1000mm)

Wind speed                     :      0-50m/s (0~100mph)

Accuracy:                            +/- 1m/s (wind speed< 5m/s)

                                                       +/-10% (wind speed > 5m/s)

Light                           :      0-300k Lux

Accuracy                       :       +/-15%

Air Pressure                     :      300-1100hPa (8.85-32.5inHg)

Accuracy                        :      +/-3hpa （700-1100hPa）

Measuring interval                :      16 sec

Power supply:

connect to power(4.5v – 6v)
