Intelligent NWT 1001V10 thin film silica gel keyboard key life testing machine | Инструменты

Intelligent NWT 1001V10 thin film silica gel keyboard key life testing machine |

NWT 1001V10Specification

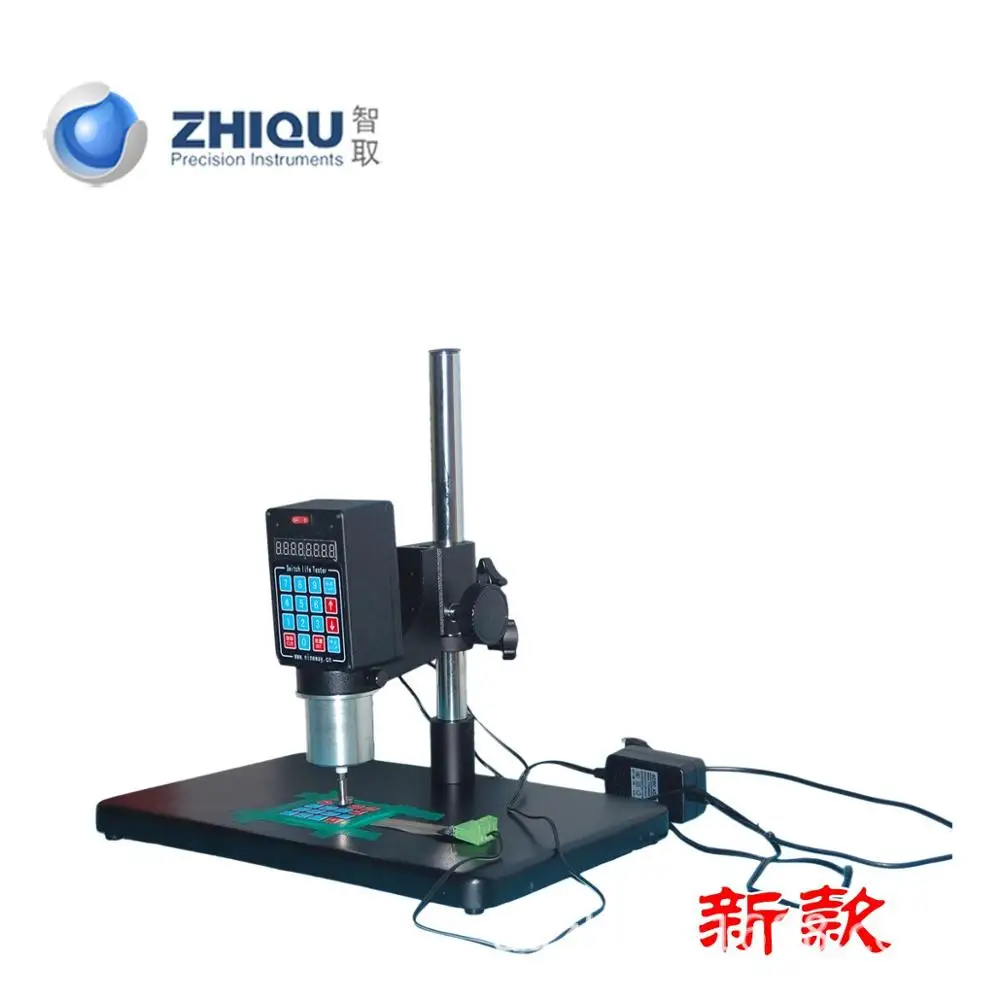

NWT 1001V10The stepper motor accurately simulates finger pressing action, real-time detection of switch state and intelligent judgment of switch key failure. After shutdown, the last test data will be automatically retained and counted from the last data after reboot. This machine is available.PDATesting the life (fatigue) of keyboards such as film keys, silica gel keys, mobile phones, calculators, notepad, walkie-talkies and various buttons and switches,It is also suitable for fatigue testing of silicone rubber keys. Low Local Power Consumption,Small noise,Fast test speed,And it's cheap.,Easy to use.

 High current test module can be installed to test30AThe following high current switch can also be installed with communication module and other equipment online testing.

Installation module is customized according to customer's needs. In addition, quotation is usually made at100-Thirty-five0elementUnequal.

Technical parameters:
1.Test head movement stroke:7mm(fixed)
2.Test speed:1Ten thousand times per hour
3.Maximum single test data: 20 million
4.The height of the test head can be adjusted:0~120mmHandwheel fine-tuning range40mm
FiveTesting power:150-800g
6.Driving mode: stepping motor
7.Equipment dimensions:380mm x 260mm x 370mm
8.Weight:6kg
9.Power Supply:12V DCThat is to say,10WThat is to say,[Matching: power adapter input220VThat is to say,50HZOutputDC12VThat is to say,2A]
10.Noise:35Decibel

Existing Special Sales Promotion3900element/platform,Welcome to inquire.
