Multimeter Ammeter Voltmeter Digital Current Voltage Power Energy Meter DC 6.5-100V 0-100A LCD Display 50A Shunt |

Multimeter Ammeter Voltmeter Digital Current Voltage Power Energy Meter DC 6.5-100V 0-100A LCD Display 50A Shunt

Features:

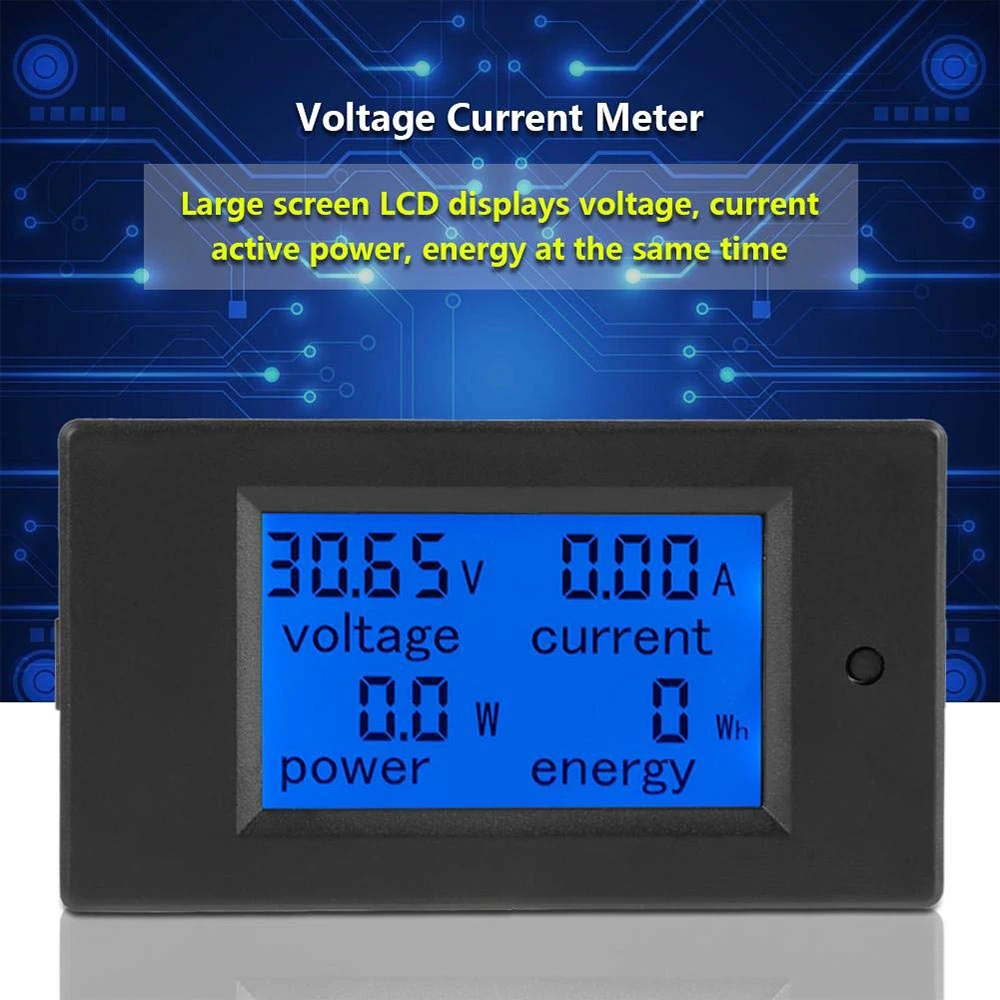

4-in-1 DC Multimeter - with 1.0 grade measuring accuracy, it combines Voltage, Current, Power and Energy measurement in one combo.

The DC voltmeter is designed with power alarm threshold, overload alarm function.If the active power is greater than the threshold, the backlight and power supply will flash.

It is designed to automatically storage the last testing data when suddenly powered off and the energy value can be reset by a short press after long pressing the function button for seconds.

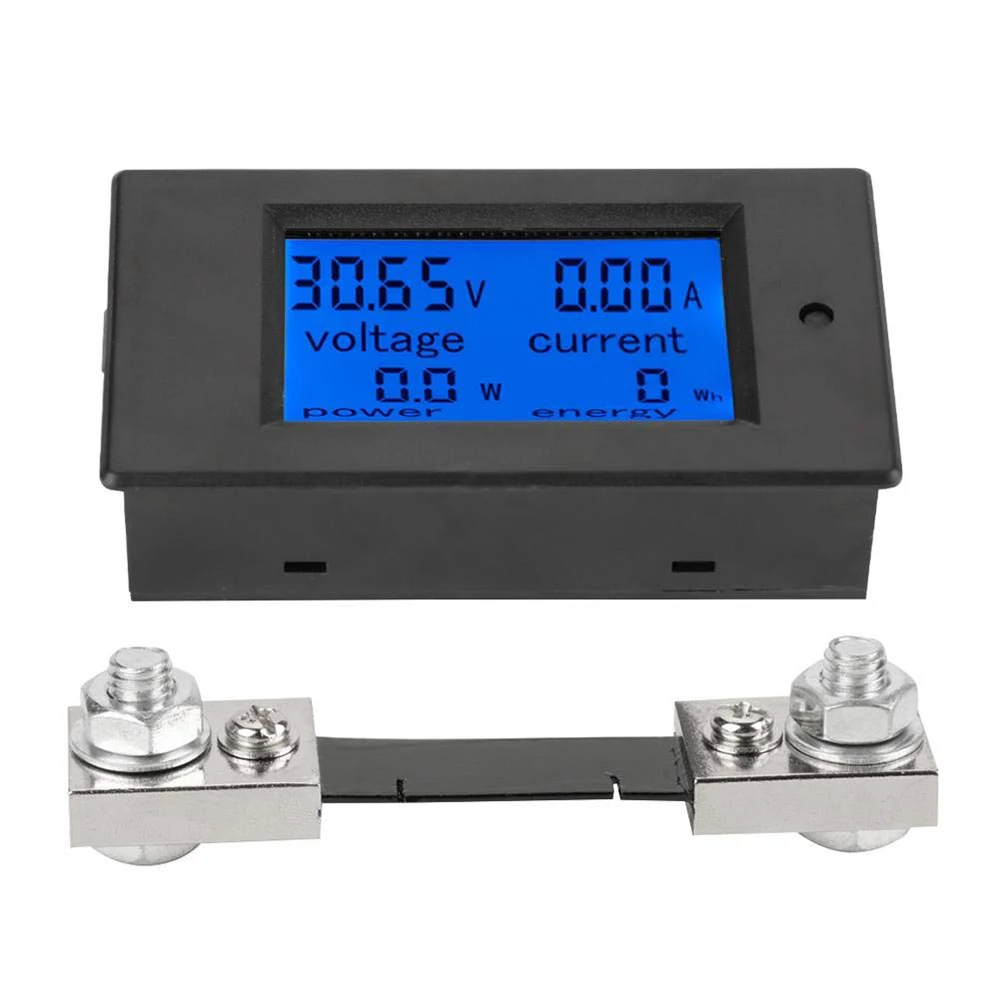

Comes with a 50A/75mV current shunt in the package, convenient for using and saving your time.

Specification:

Material: ABS

Item color: Black

Working voltage: 6.5-100V DC

Voltage test range: 6.5-100V DC

Current shunt: 50A/75mV

Rated power: 100A / 10000W

Measurement accuracy: 1.0

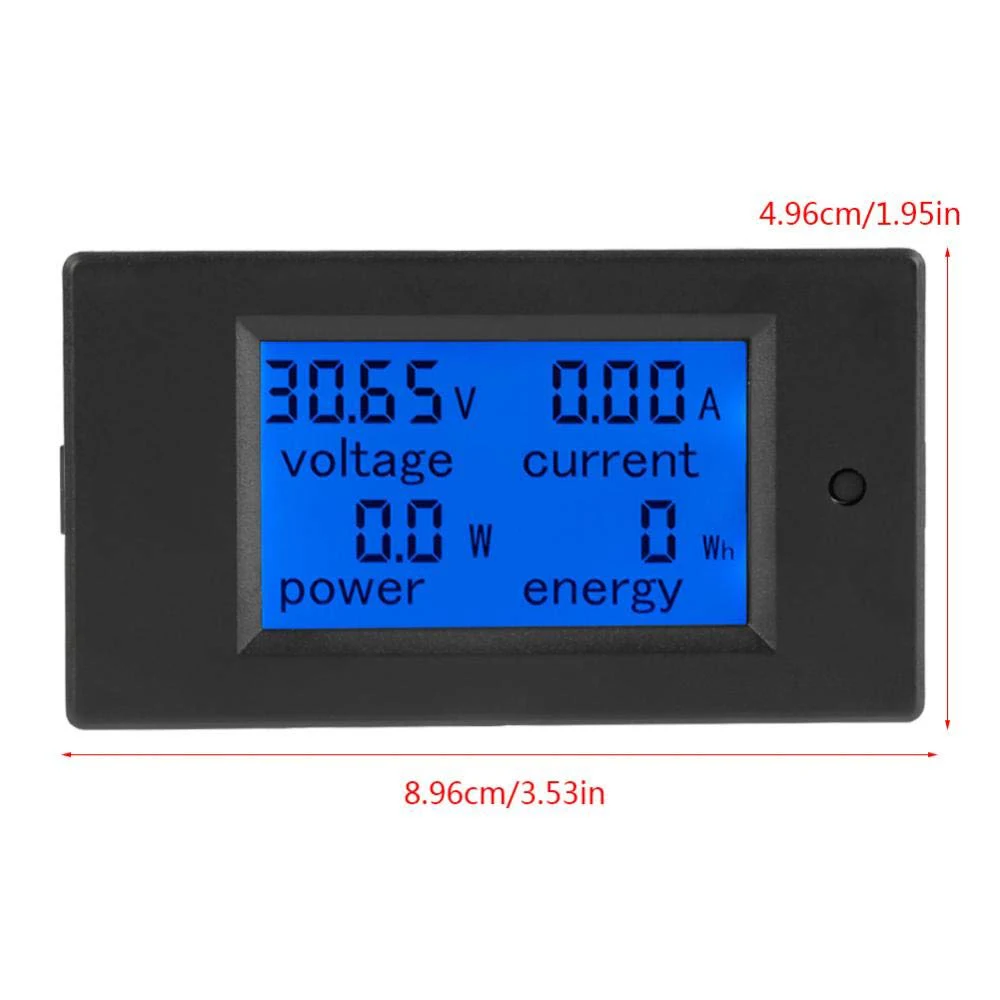

Size: 8.96cm x 4.96cm

Weight: 137g

Test Range Display Format：

Power 0-10kW， ＜1kW, 0.0-999.9W,

≥1kW, 1000-2000W； Energy 0-9999kWh， ＜10kWh, 0-9999Wh,

≥10kWh, 10-9999kWh； Voltage 6.5-100V， 6.50-99.99V； Current 0-100A， 0.00-99.99A

Package includes:

1 x DC Power Multimeter

Note:

This module is only suitable for 6.5~100V DC power.

This module is suitable for indoor, not outdoor.

Applied load cannot exceed the rated voltage and current.

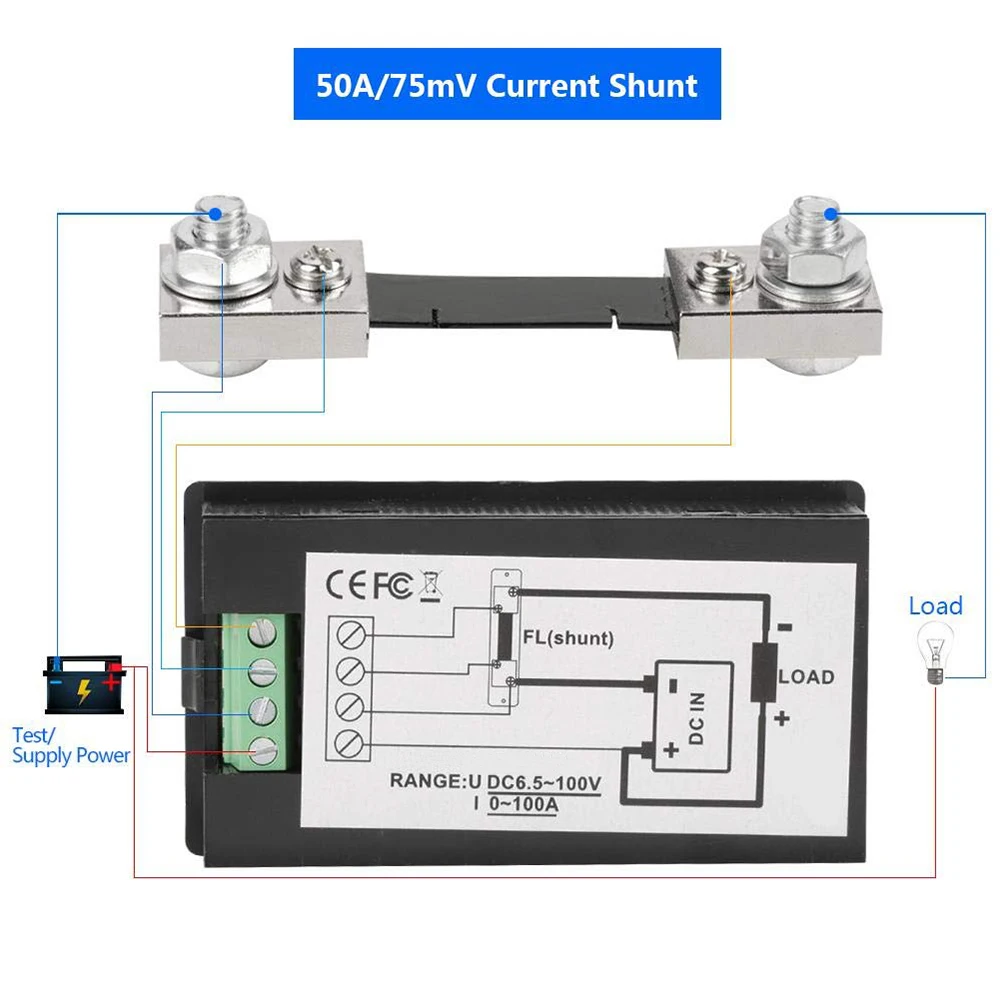

The wiring order cannot be wrong.
