SQU OF80 Universal Car Emulator Supports Immo/Seat Occupancy Sensor/Tacho Programs For Most Cars |

SQU OF80 Universal Car Emulator Supports Immo/Seat Occupancy Sensor/Tacho Programs For Most Cars

SQU OF80 Universal Car IMMO Emulator Support Seat Accupancy Sensor/ IMMO /Tacho Programs For Multi-Brands Cars

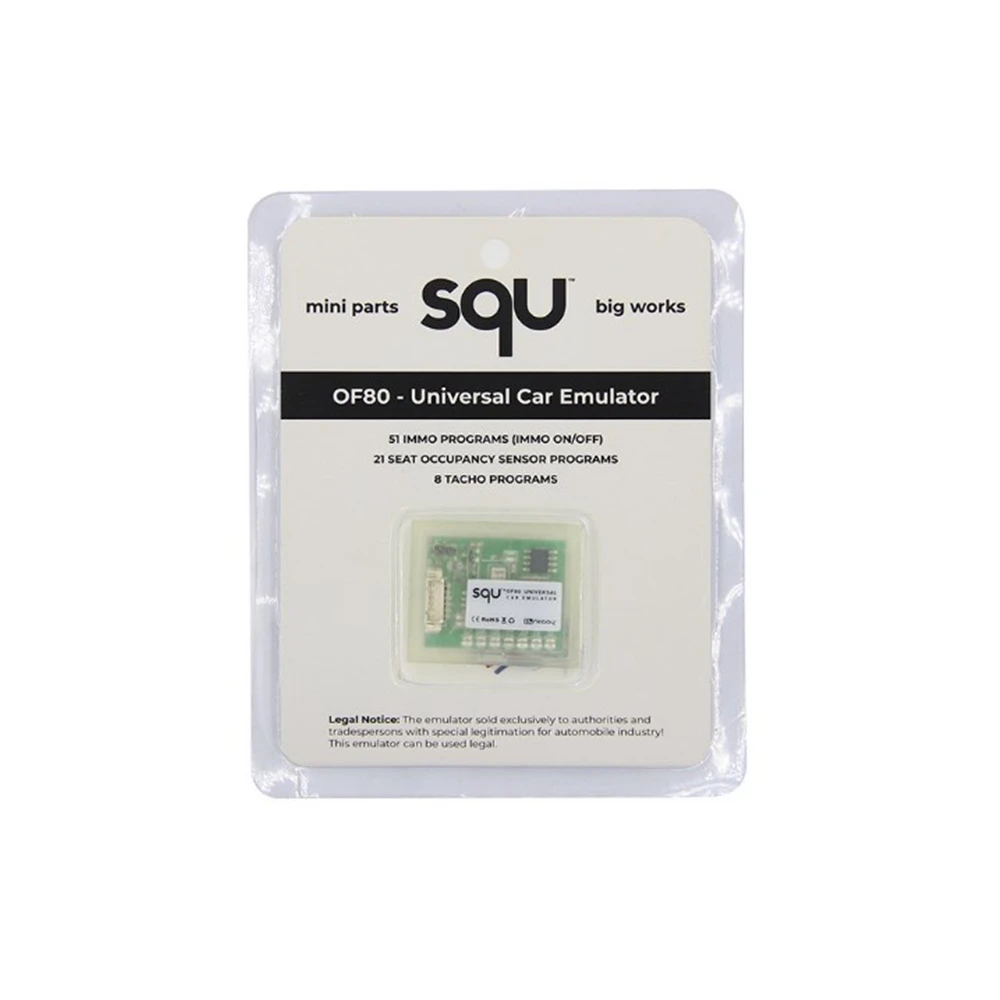

SQU OF80/68 Universal Car Emulator Mini Parts Big Works

1: 51/42 IMMO PROGRAMS(IMMO ON/OFF)

2: 21/13 SEAT OCCUPANCY SENSOR PROGRAMS

3: 8 TACHO PROGRAMS

SQU OF80 universal car emulator supports IMMO/Se-at occupancy sensor/Ta-cho Programs.

SQU OF80 Features:

1. The LED behavior

-no jumpers-diagnostic mode-it flashes every second

-adjusting to the ecu-flashing 0, 1 sec

-after adjusting it lights constantly and blinks every other second

2. Tachometer tester programs

USE

You can use it to tum on the instrument cluster on the table in order to diagnose faults. After

connecting the emulator to instrument cluster, most of instrument cluster segments are displayed

making it easier to locate damaged areas.

3. This emulator is reusable, Tested on tacho---for Audi Q7 and for A6 ,for Citroen C4 Picasso, for EMF Display, for Renault Kangoo 3 Display, for Renault Scenic II, for Espace IV Tacho, for Renault Scenic II Full, for Renault Scenic III+ Navi, for VW Passat B6

Immo Programs For OF80:

1.For VAG4V1

2.For VAG4V2

3.For VW BYPASS GOLD immo OFF

4.For VW automatic immo ON

5.For VW without CAN

6.For VW Hitachi

7.For VW valve Code

8.For VW EDC15 immo OFF

9.For VW EDC15 immo ON

10.For VW EDC16 K-line Immo OFF

11.For V-W EDC16 K-line Immo ON

12.For VW EDC16 CAN 1.9/2.0 OFF

13.For VW EDC16 CAN 1.9/2.0 ON

14.For VW EDC16 CAN 2.7/3.0 OFF

15.For V-W EDC16 CAN 2.7/3.0 ON

16.For VW ME7 immo OFF

17.For VW ME7 immo ON

18.For BMW EWS 2/3

19.For BMW EWS 2/3 (use ISN)

20.For Chrysler

21.For Citroen,For Peugeot CAN

22.For Citroen,For Peugeot CAN V1

23.For Citroen,For Peugeot CAN V2

24.For Citro-en,For Pe-uge-ot CAN (use pin)v1

25.For Citroen,For Peugeot CAN (use pin)v2

26.For Daewoo1

27.For Daewoo2

28.For Fiat without CAN

29.For Fiat with CAN-5SF/6F3 ECU

30.For FSO Polonez

31.For Honda

32.For Kia Sportage 2.OTD

33.For Mazda with 93C56

34.For Mercedes CR without CAN

35.For Mercedes CR1 with CAN WSP

36.For Mercedes CR1 with CAN EZ

37.For Meredes CRl with CAN infrared

38.For Mercedes CR2 with CAN WSP

39.For Mercedes ESL

40.For Mercedes ESL 2

41.For Nissan NATS4/5

42.For Opel immo with HCO5

43.For Renau with CANver 1

44.For Renau with CANver 2

45.For Renau without CAN

46.For Re-nau without CAN old ECU

47.For Suzuki with X24C01 memory

48.For Suzuki with OKI memory

49.For Suzuki with 93C56 memory

50.For TMS374citroen,For Peugeot,For Renault

51.For Yamaha

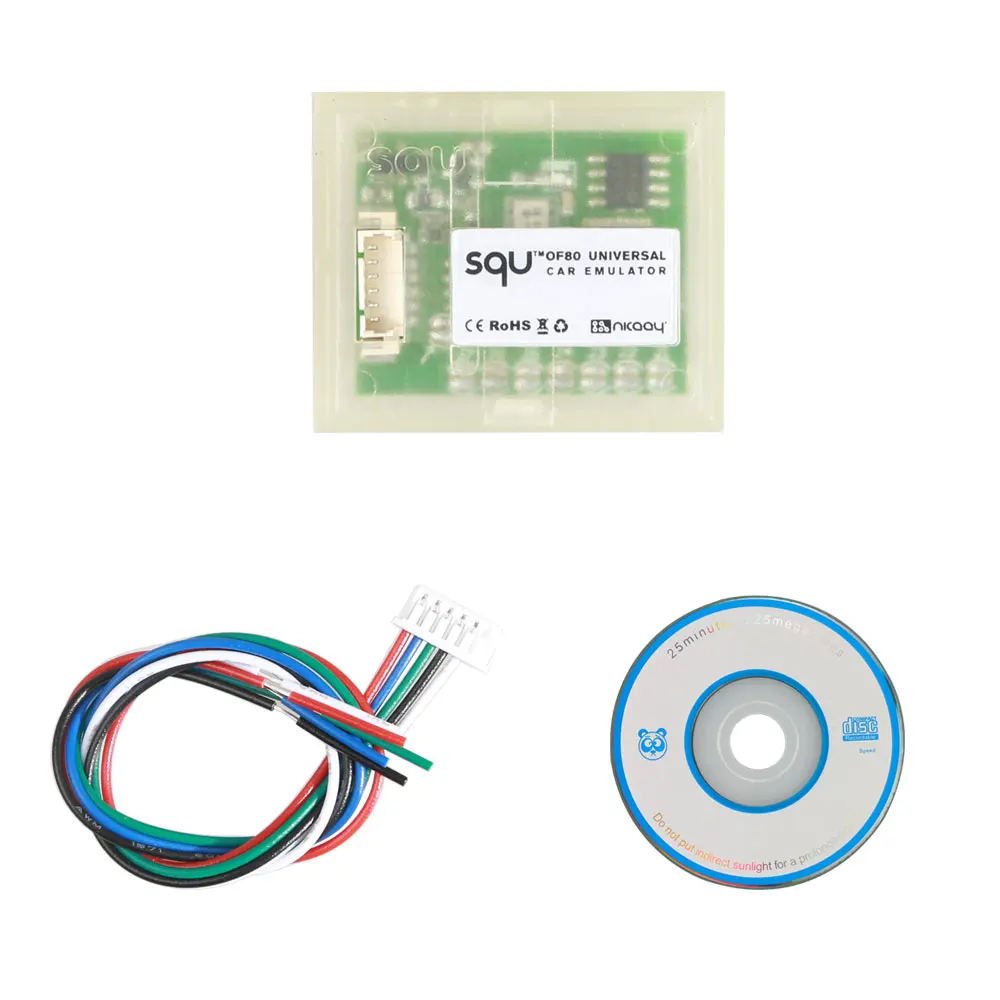

Packing:

- emulator

- CD for user manuel
