Мини ПК XCY без кулера Intel Celeron J1900 четыре ядра Windows 10 Linux DDR3L ОЗУ mSATA SSD двойной Ethernet RS232
Характеристики
Мини ПК XCY без кулера Intel Celeron J1900 четыре ядра Windows 10 Linux DDR3L ОЗУ mSATA SSD двойной Ethernet
Описание товара

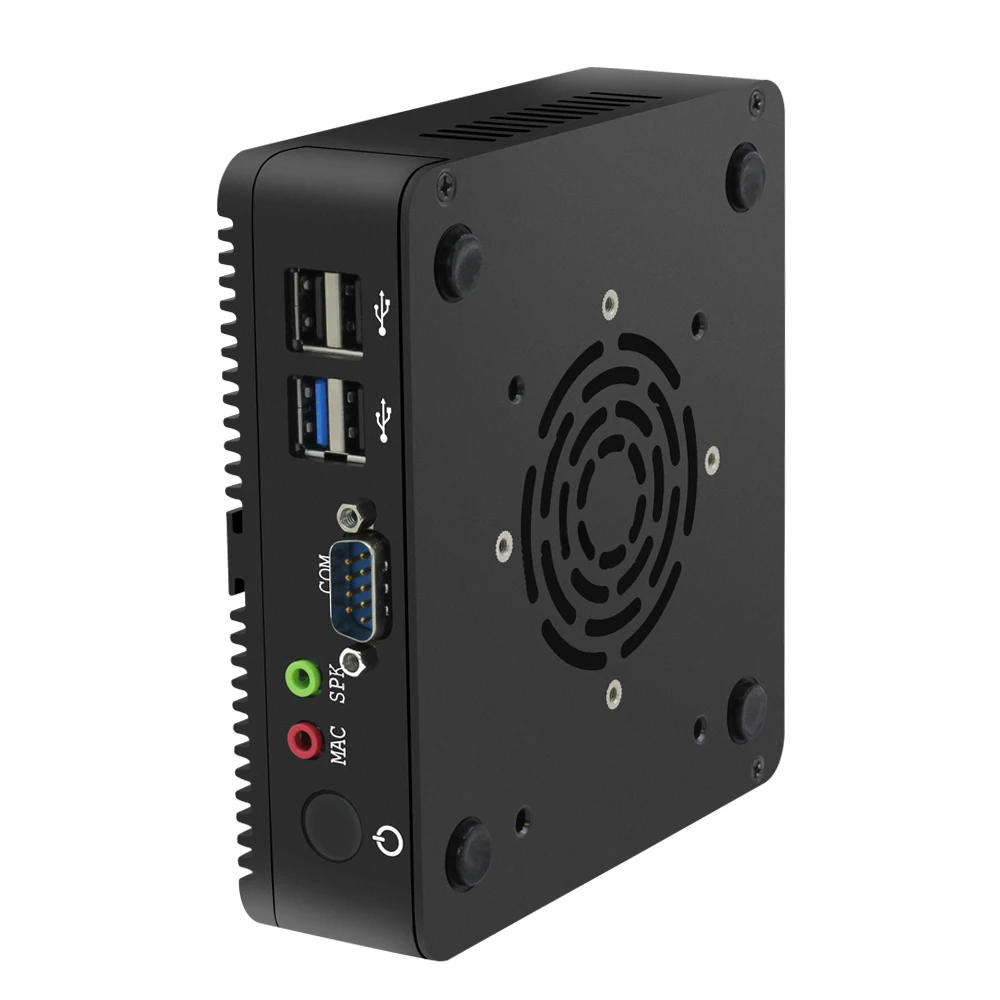

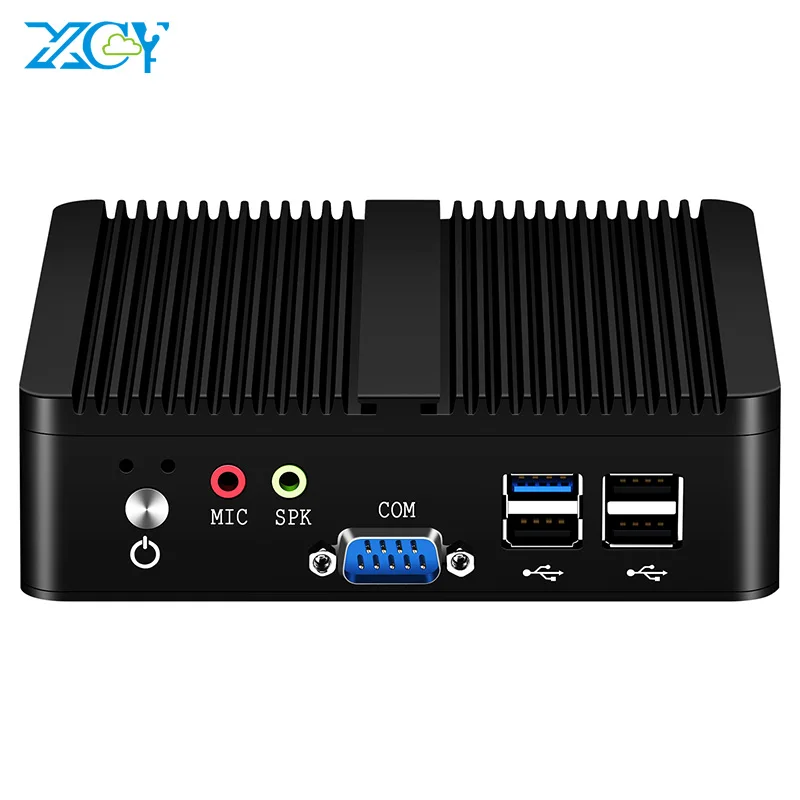

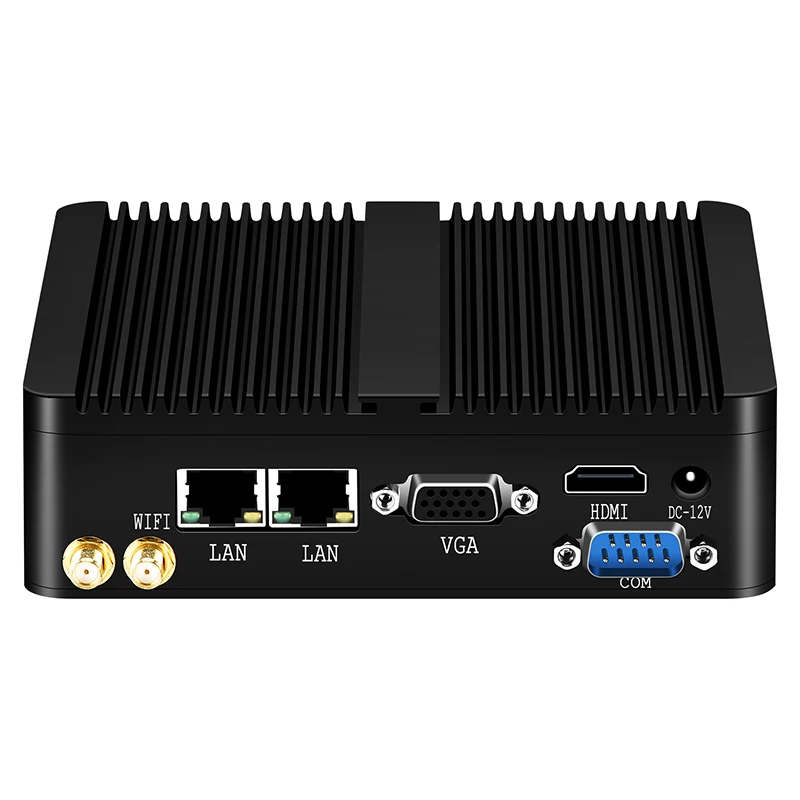

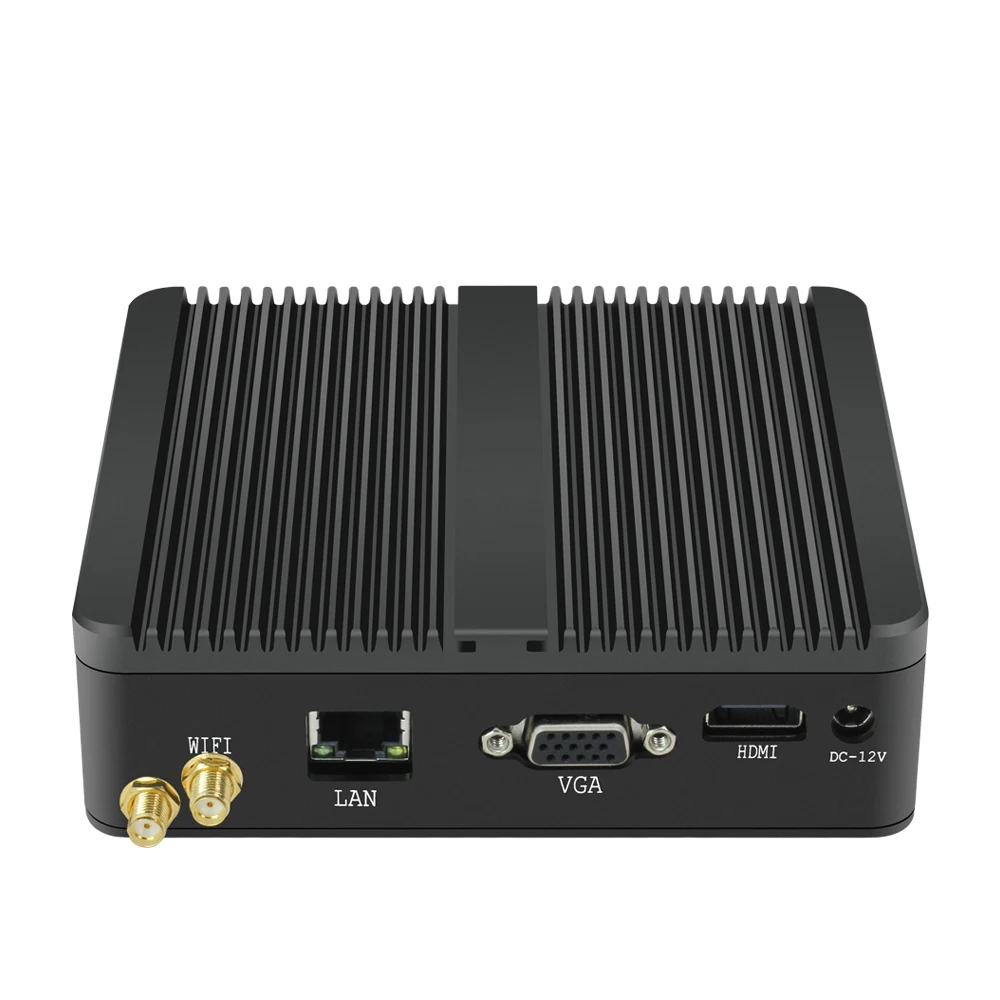

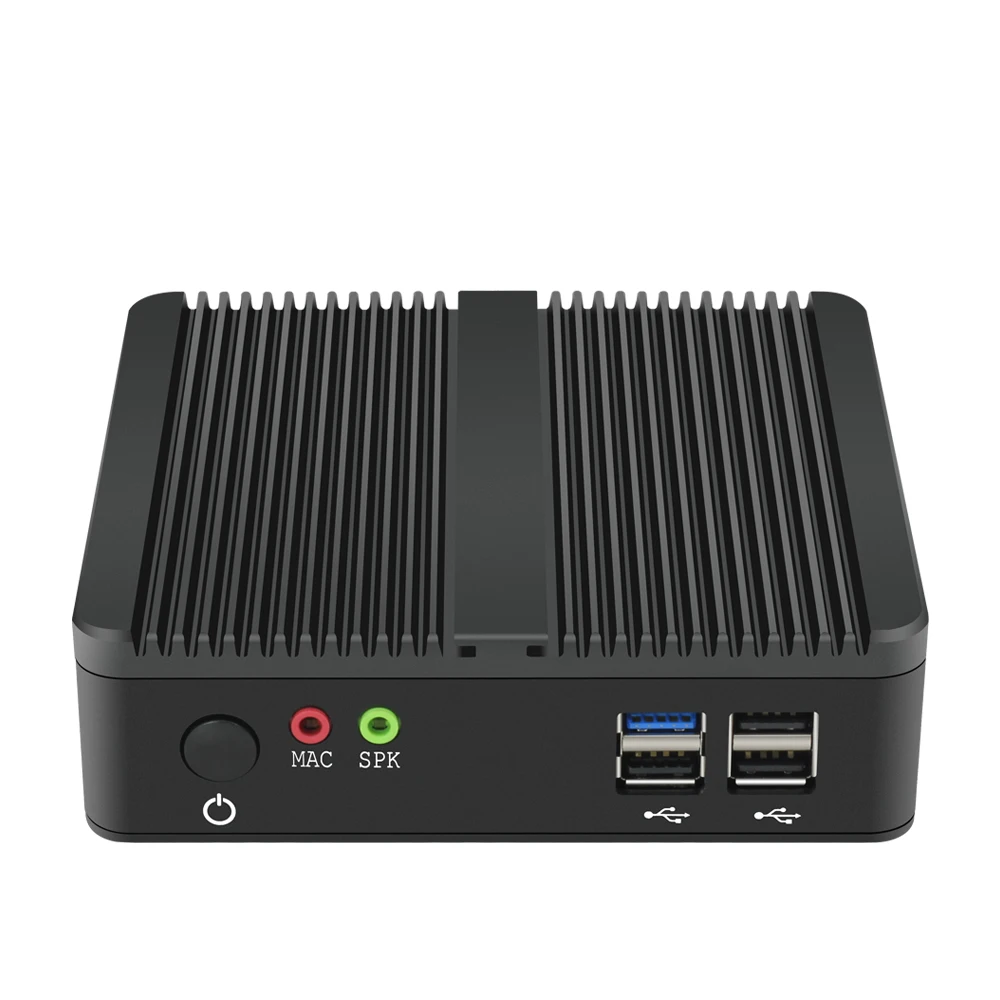

XCY X30A Series Fanless Mini PC Intel Celeron J1900 Processor, DDR3L RAM, mSATA SSD, Dual NIC Gigabit LAN Ports, 2x RS232 Serial Ports, 4x USB Ports, HDMI and VGA Video Output, 300Mbps Wi-Fi, Embedded Industrial Computers
- Support Windows 10, Windows 8 & 8.1, Windows 7, Linux, Ubuntu; - 1 solt SODIMM DDR3L 1333/1600MHz memory, max to 8GB; - Support add two hard drives, one mSATA SSD and one 2.5 inch SSD/HDD; - Fanless passive cooling, aluminum case; - Dual Realtek 8111F Gigabit Ethernet, 2x RS232, 1x USB3.0, 3x USB2.0, 1x HDMI, 1x VGA, 1x SPK, 1x MIC - Support set function automatically power on after power restore, wake up on LAN. - Energy-saving, low power consumption as low as to 10W at idle.
|
Processors |
Intel Celeron Processor N2810, 1M Cache, 2 cores, 2.00 GHz; Intel Celeron Processor J1800, 1M Cache, 2 cores, 2.41GHz, up to 2.58 GHz; Intel Celeron Processor J1900, 2M Cache, 4 cores, 2.0GHz, up to 2.42 GHz; Intel Pentium Processor J2900, 2M Cache, 4 cores, 2.41GHz, up to 2.66GHz Intel Celeron Processor N2930, 2M Cache, 4 cores, 1.83GHz, up to 2.16GHz |
|
Memory |
One memory slot SODIMM, DDR3L 1333/1600MHz 1.35V Max support 8GB |
|
Storage |
Support 1x mSATA SSD ( defaulted install this type hard drive ) Support 1x 2.5 inch SATA HDD/SSD |
|
Graphics |
Intel HD Graphics |
|
Network Interfaces |
2x Realtek 8111F GbE RJ45 |
|
Expansion |
1x Mini PCI-E for WiFi/Bluetooth module (half height size ) |
|
OS Support |
Windows 7/8/10, Linux, Ubuntu, CENTOS, Vxworks, WES7 WES8 |
|
USB Ports |
1x USB3.0, 3x USB2.0 |
|
Display Port |
1x VGA, 1x HDMI |
|
COM Ports |
2x RS232 |
|
Audio Ports |
1x SPK, 1x MIC, 3.5mm jack |
|
Construction |
Fanless passive cooling |
|
Case |
Aluminum Case |
|
Dimension |
136x128x44mm |
|
Netweight |
0.65Kg |
|
Operating Temperature |
-20℃ to +60℃ |
|
RH |
5%~95% @30℃，Non-condensing |
|
Power Adapter |
Input AC100-240V, Ouput DC12V-5A |
|
Package List |
1x Mini PC X30A 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cable 1x VESA bracket 1x User manual |
