ISEEVY 4K Video Wall Controller 2x2 1x2 2x1 1x3 3x1 1x4 4x1 support 4K30 (3840*2160) HDMI inputs for max 4 TV Splice | Электроника

ISEEVY 4K Video Wall Controller 2x2 1x2 2x1 1x3 3x1 1x4 4x1 support 4K30 (3840*2160) HDMI inputs for max 4 TV Splice |

Overview

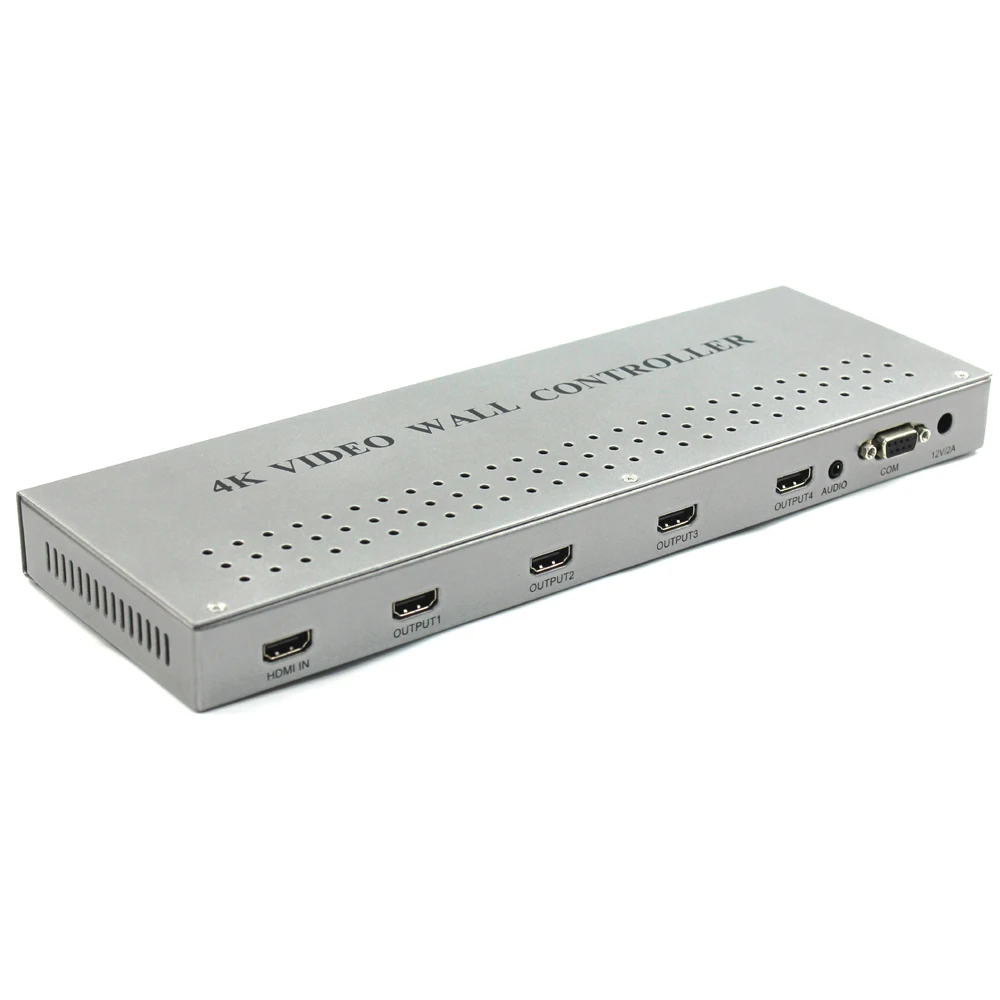

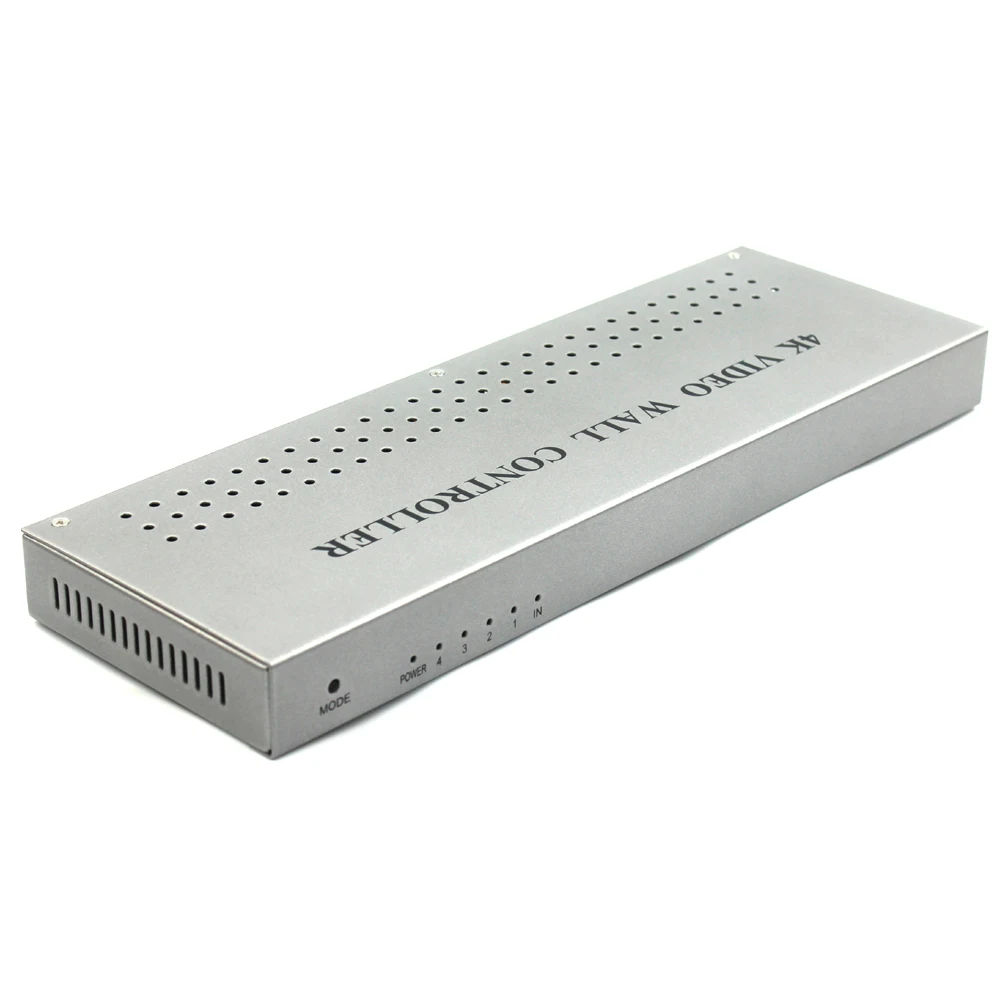

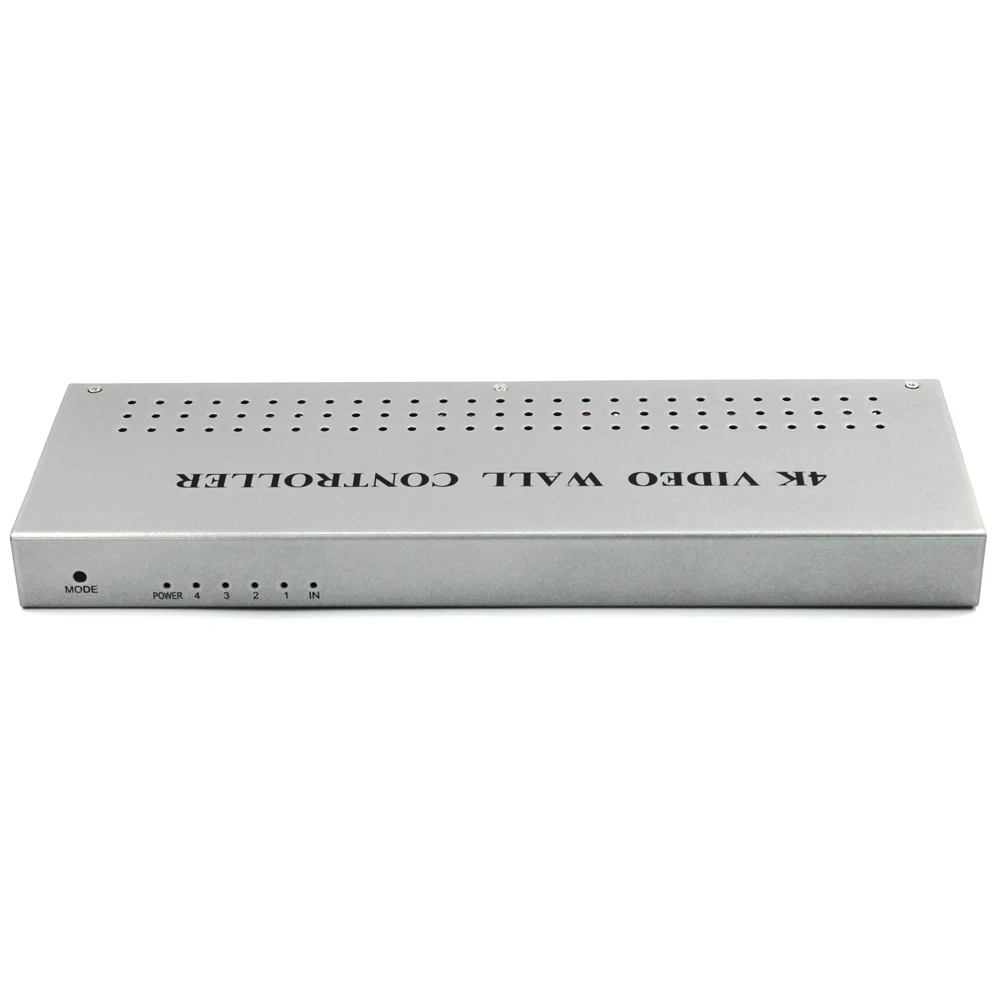

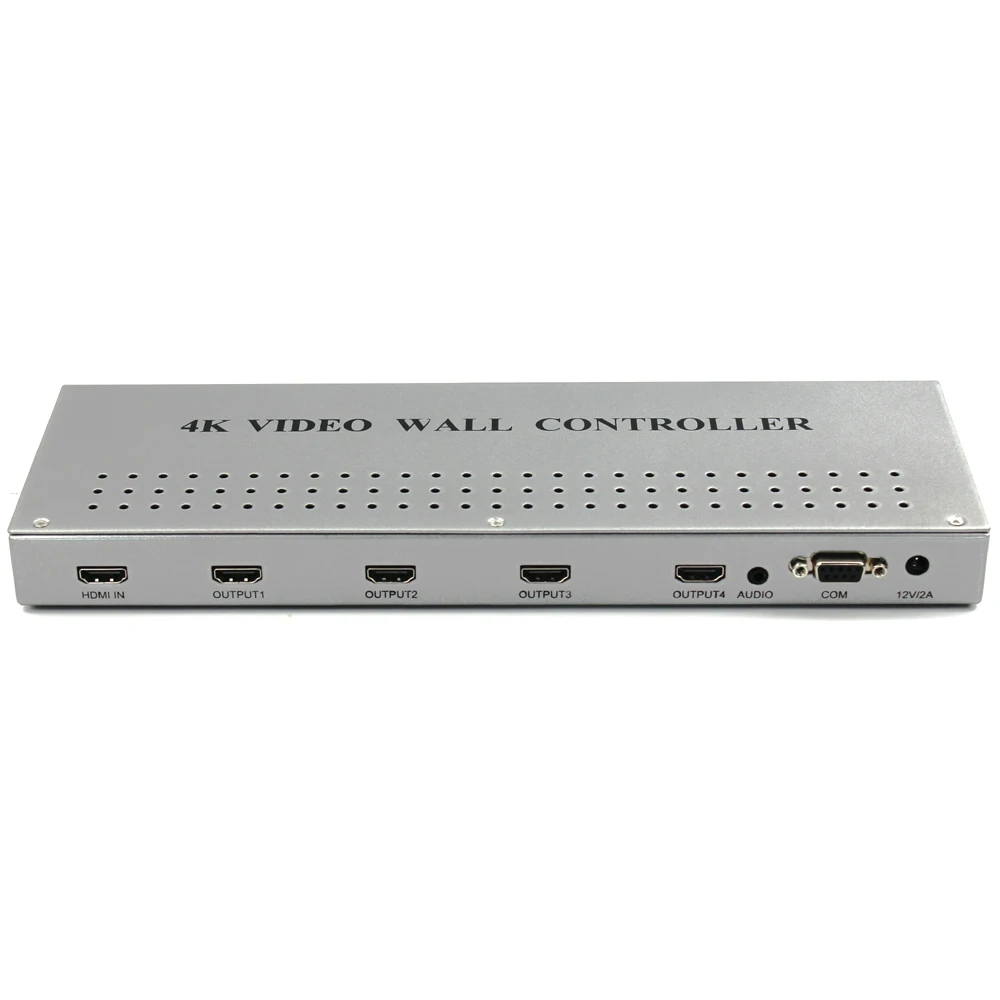

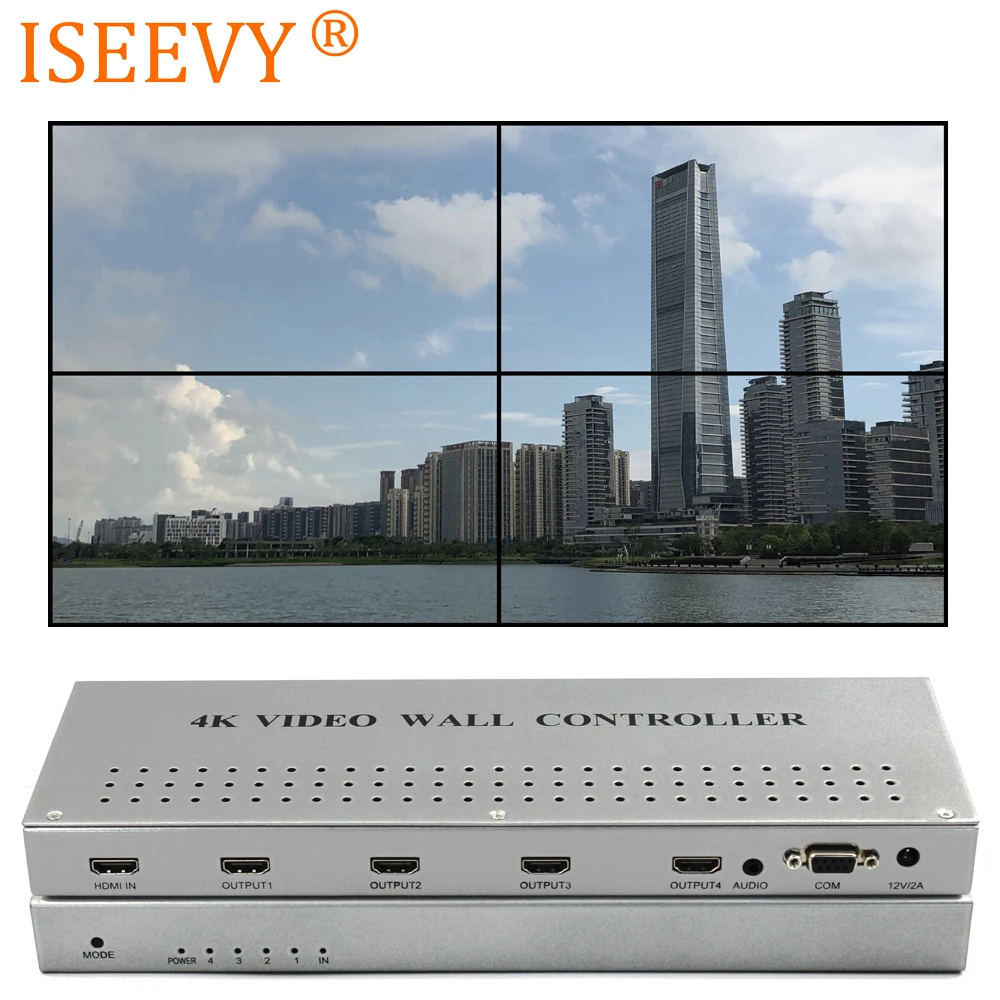

ISEEVY 4 channels 4K video wall controller 2x2 1x2 2x1 1x3 3x1 1x4 4x1  is a professional video wall processor to distribute video signal to max 4 TV monitors with multiple splicing mode display. It supports max 3840*2160@30Hz HDMI video input.
With 4 HDMI outputs, it can support max 4 TVs splicing display. each output video resolution support 1920*1080@60Hz, and the audio signal also will synchronize with output video.
You can control it easily via buttons to switch different splice mode

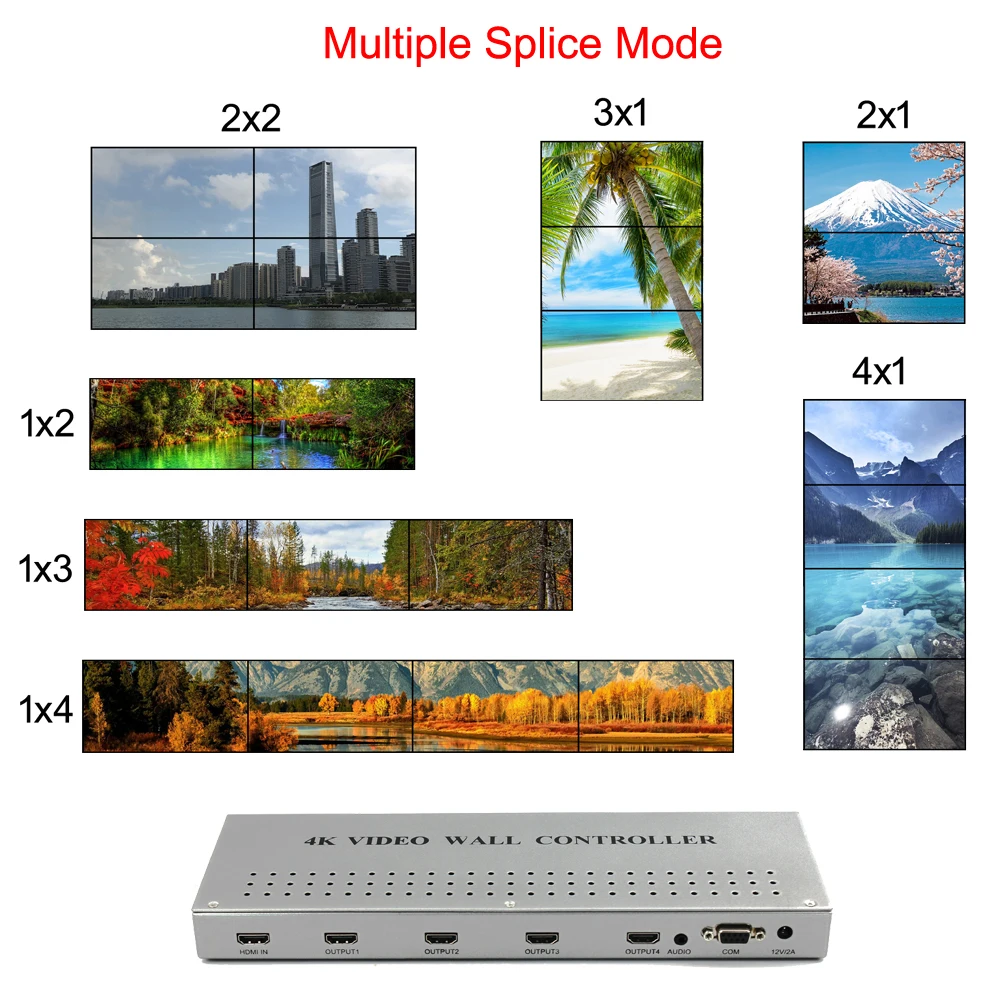

Multiple Splice Modes

Specifications

HDMI Input

HDMI 1.4, built-in audio, support 480i to 3840*2160@30Hz resolution video

HDMI Output

4 channel HDMI outputs, each port output resolution reach 1920*1080@60Hz

Audio Output

3.5mm audio interface, synchronize with video out

Control

Buttons

Power

12V

Power consumption

15W

Dimension

303mm*104mm*30mm

Weight

1.3kg
