21MP USB3.0 E3ISPM21000KPA Sony IMX269 4/3inch CMOS Mircoscope C-mount eyepiece color camera 17fps Imageview software with SDK |

21MP USB3.0 E3ISPM21000KPA Sony IMX269 4/3inch CMOS Mircoscope C-mount eyepiece color camera 17fps Imageview software with SDK

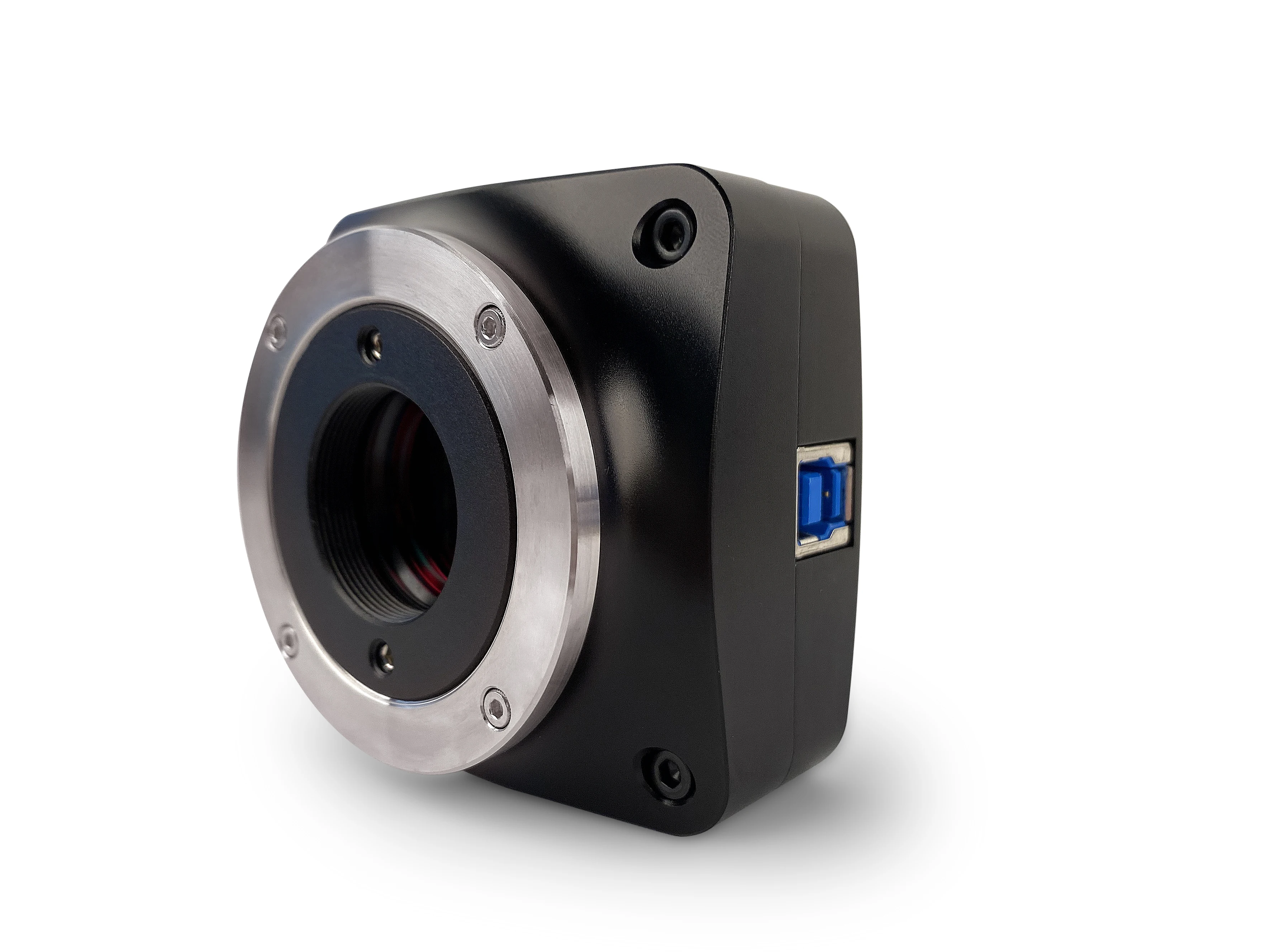

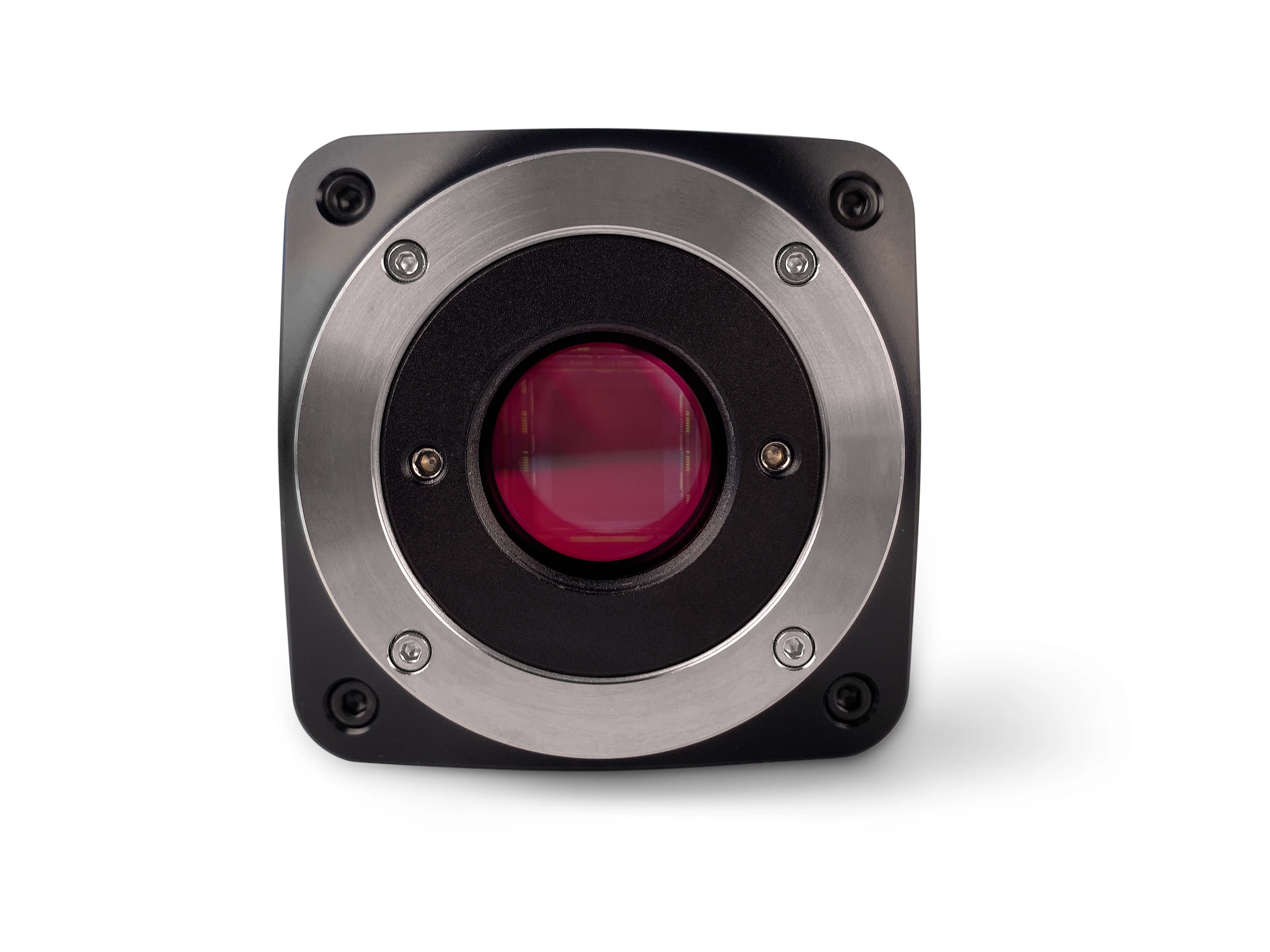

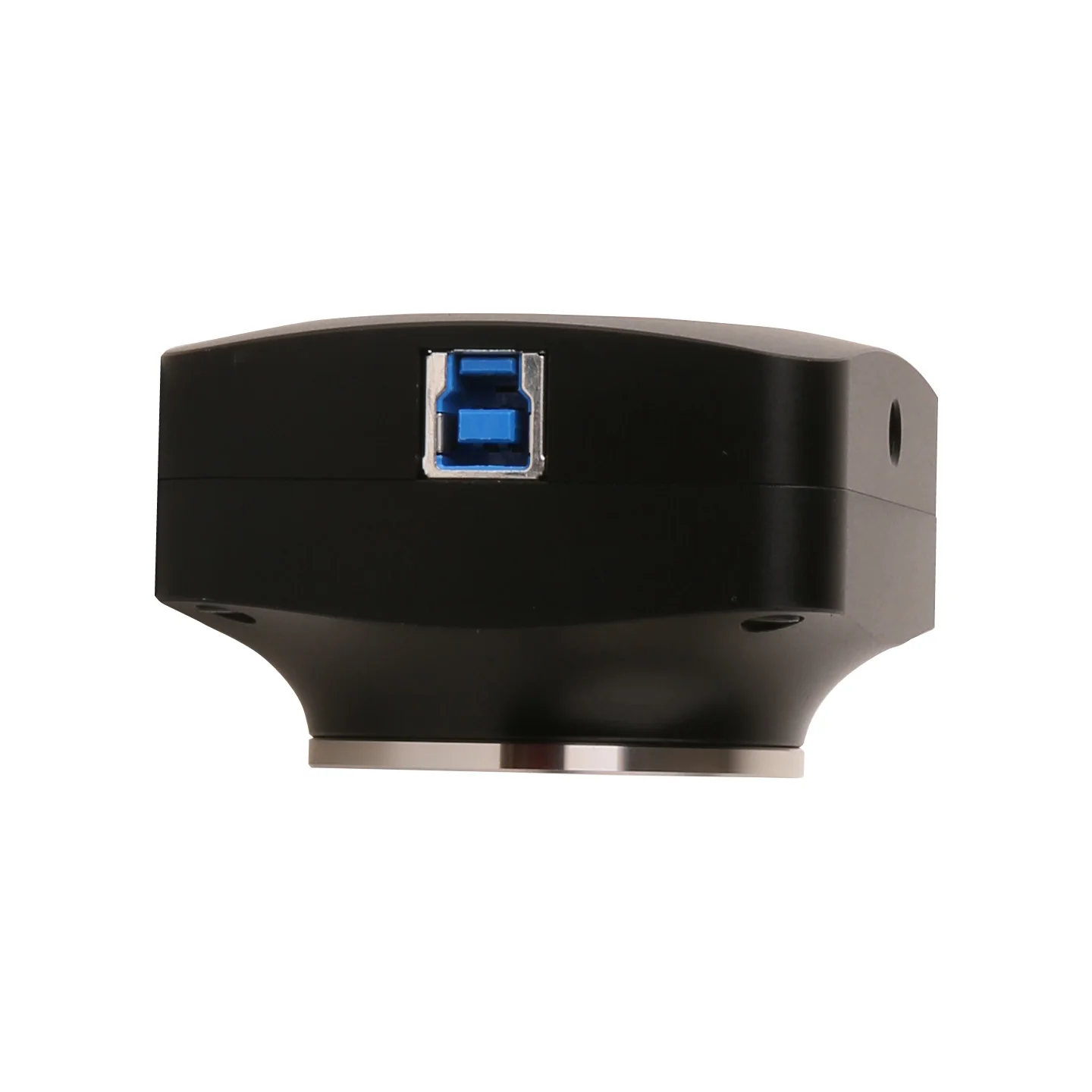

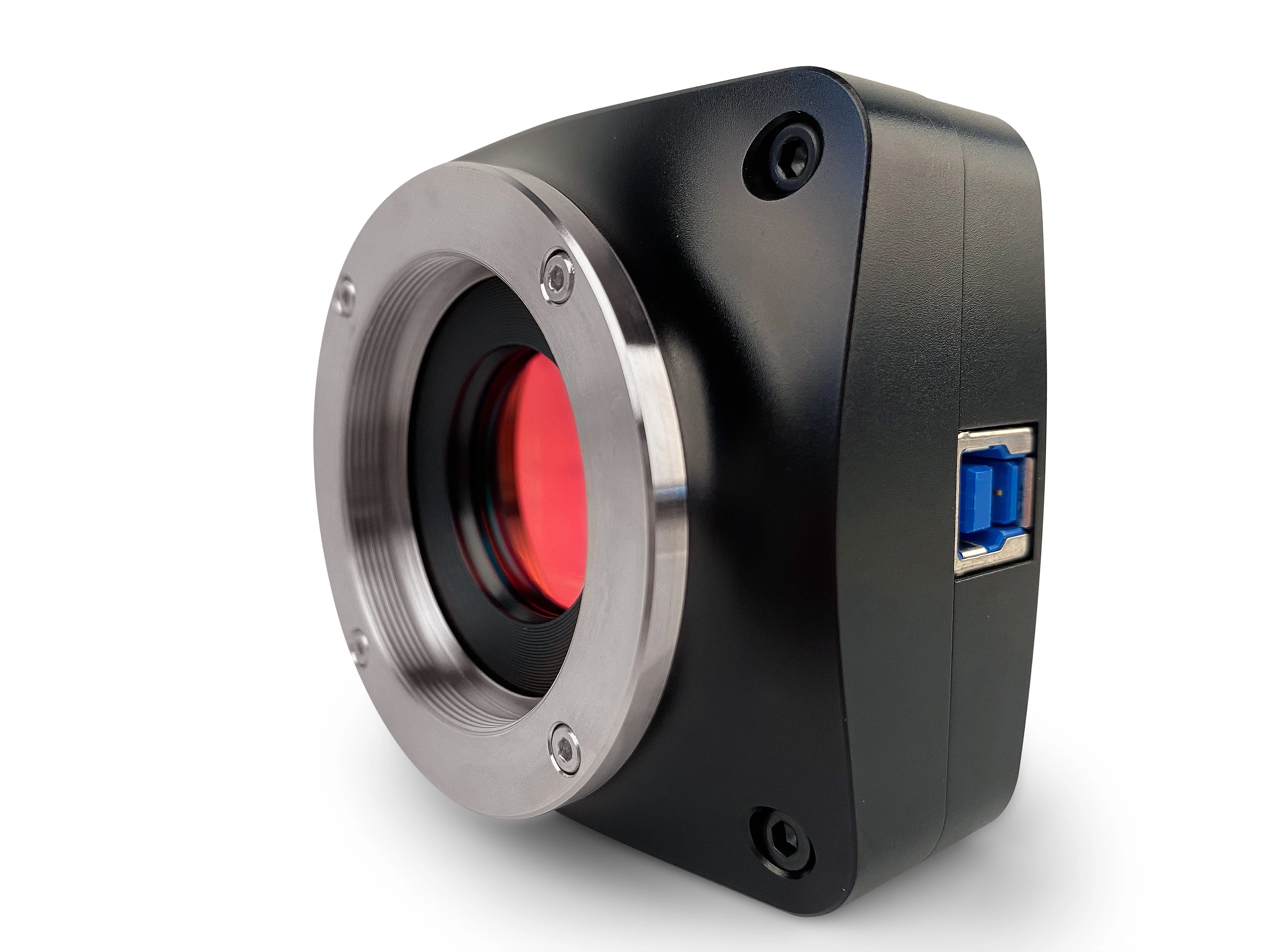

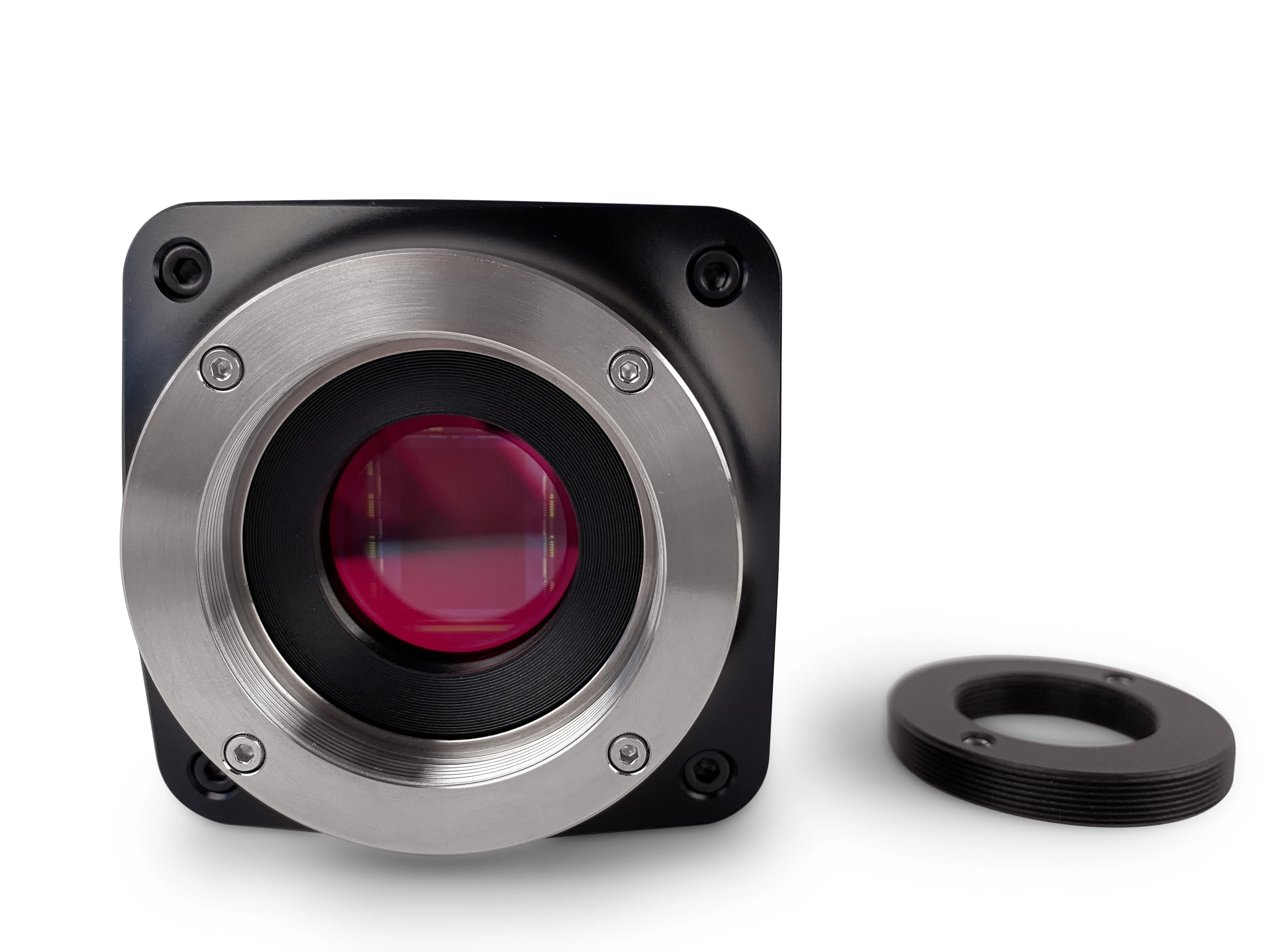

Product Description

• The modern CMOS digital camera designed with highly-sensitive, high-framerate and shows true natural color and low noise for microscope.
• The brilliant software provides many professional functions such as measurement, live stacking, live EDF , color balance and allows numerous adjustment options while capturing single images and videos.
• The CNC housing has a C-mount thread for easy adaptability.
• The camera supports Software Development including Native C/C++, C#/VB.Net, DirectShow, Twain, LabView in SDK which in the CD.

Camera Specifications:

• Sensor: 21MP Sony CMOS IMX269 (color)
• Sensor Size(mm): 4/3 "(17.40x13.00)
• Pixel(μm): 3.3x3.3
• Shutter: Rolling Shutter
• Frame Rate(max): 17@5280x3954 17@3952x3952 56 @2640x1976 67@1760x1316 192@584x438
• G Sensitivity: 399mv with 1/30s
• Dark Signal: 0.1mv with 1/30s
• Out Put: USB3.0
• Support System: Windows XP/Vista/7/8/10, Mac, Linux
• Mounting Sizes: C-mount or M42-mount without the black ring
• Compatible Adapter: 1X C-Mount or AMA0100, FMA100(23.2 to C-Mount) Eyepiece Lens or T2-Mount(without the black ring)
If you want to get fast frame rate pls reduce the exposure time.

Software Features:

• The brilliant software provides many professional functions such as fluorescence application, quick record, measurement, manual grids, Microsoft Word Report, live stacking, live EDF , color balance, dark field correction, flat field correction and allows numerous adjustment options while capturing single images and videos.
• The software supports the following languages: English, Catalan, French, German, Indonesian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Thai, Traditional Chinese, Turkish.
• The User's Instructions can be found in the Help meau in the software ImageView.

Example images

Contents:

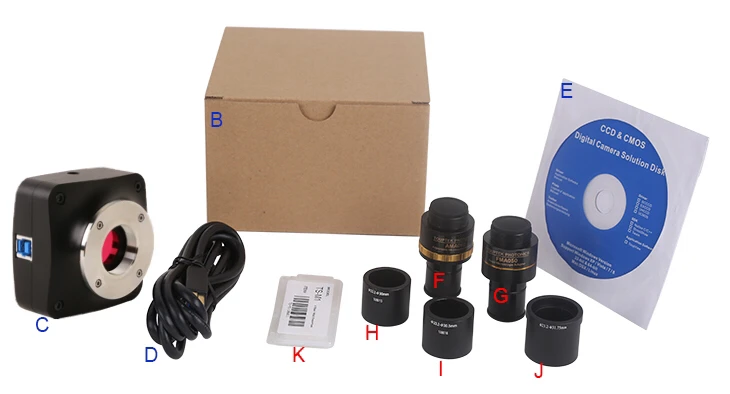

Standard Packing List:
B: One Box
C: One USB3.0 C-mount Digital Camera
D: One USB3.0 High-Speed Cable
E: One CD with Software and User's Instructions

Optional Accessory:
F: One Adjustable 1x lens AMA100
G: One Fixed 1x lens FMA100
H: One Ring 23.2 to 30mm
I: One Ring 23.2 to 30.5mm
J: One Ring 23.2 to 31.75mm
K: One Calibration Slide TS-M1

Customer Service:

• One year Warranty.
• Before and after the purchase - we from Imageview Store will find the right solution for you!
• We do not leave you alone after the purchase and value customer-oriented service.
• If you have any questions or problems with one of our products, pls feel free to contact us and we will be pleased to help you.
