Плата питания ATX модуль 24/20Pin блок Питания настольная Верхняя плата адаптер для

Плата питания ATX модуль 24/20Pin блок Питания настольная Верхняя плата адаптер

24/20Pin ATX Power Supply Bench Top Board Module Adapter For Computer PC

Features:

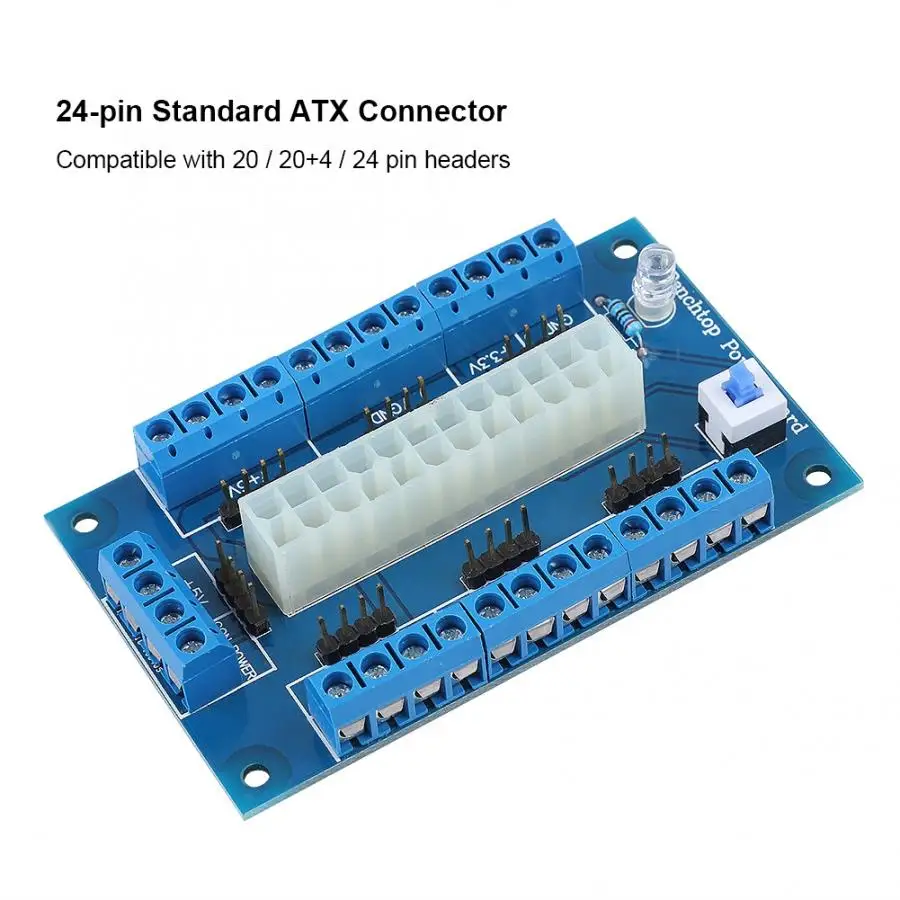

24-pin standard ATX connector - Compatible with 20 / 20 + 4 / 24 pin headers.
With the lock button switch to easily control power ON / OFF.
High quality - 24Amp (per position) screw terminal block.
Easy and convenient to use.
Indicator to clearly show the status of the module.

Specification:
Type: ATX Power Supply Module
Material: Circuit Board
Weight: Approx. 50g
Size: Approx. 52 * 87mm / 2 * 3.4in
On/Off Button:
6 * +5V / 16A connectors, 10 * GND / 16A connectors, 1 * -5V / 16A connector (-5V voltage does not exist on each PC power supply, it will often disappear, if you do not provide this output, this output will not provide anything), 1 * -12V / 16A connector, 4 * +12V / 16A connectors, 3 * +3.3V / 16A connectors

Package list:
1 * 24/20Pin ATX Power Supply Module

Note:
1. 2 connector, in the case of the "power connector", want to turn on/off the button remotely (then just connect the two external buttons). This allows you to access the power button even if the adapter is in the arcade panel.
2. Please allow slight error due to manual measurement. Thanks for your kind understanding.
