45 / 30 A Power Solar Panel Connector 10Pairs 30A PP30 PP45 Plug Red Black with 10PCS FR PVC Cover Flame Retardant Sleeve | Обустройство

45 / 30 A Power Solar Panel Connector 10Pairs 30A PP30 PP45 Plug Red Black with 10PCS FR PVC Cover Flame Retardant Sleeve |

PP30 30A type

Specification:

• Brand new

• Contact material: Copper/ plating silver

• Size: approx. 25*7*7mm

• Rated current: 15-45A

• Rated voltage: 600V

• Contact barrel wire size (AWG): 2/4/6AWG (13.3mm⊃2; - 21.1/33.6mm⊃2;)

• Average contact resistance: 0.05MΩ

• Voltage proof: 2200V (DC)

• Insulation resistance: 500MΩ

• Avg. unmating force: 5N

• Flammability rating of housing material: UL94 V- 0

• Operating temperature range: -20° to 125°

Feature:

• Provide simplified assembly and minimize the number of components.

• Silver or plated copper contacts inside housings that strongly force the contacts together.

• Contacts feature a sacrificial tip that allows high current circuit interrupt.

• Prevents accidental cross mating of circuits.

• Stainless steel springs create a rebuts force between the contacts that holds the connector in the mated position.

• For signal transmission or the added safety of a premate ground position.

• Easy to use.

• Durable in use.

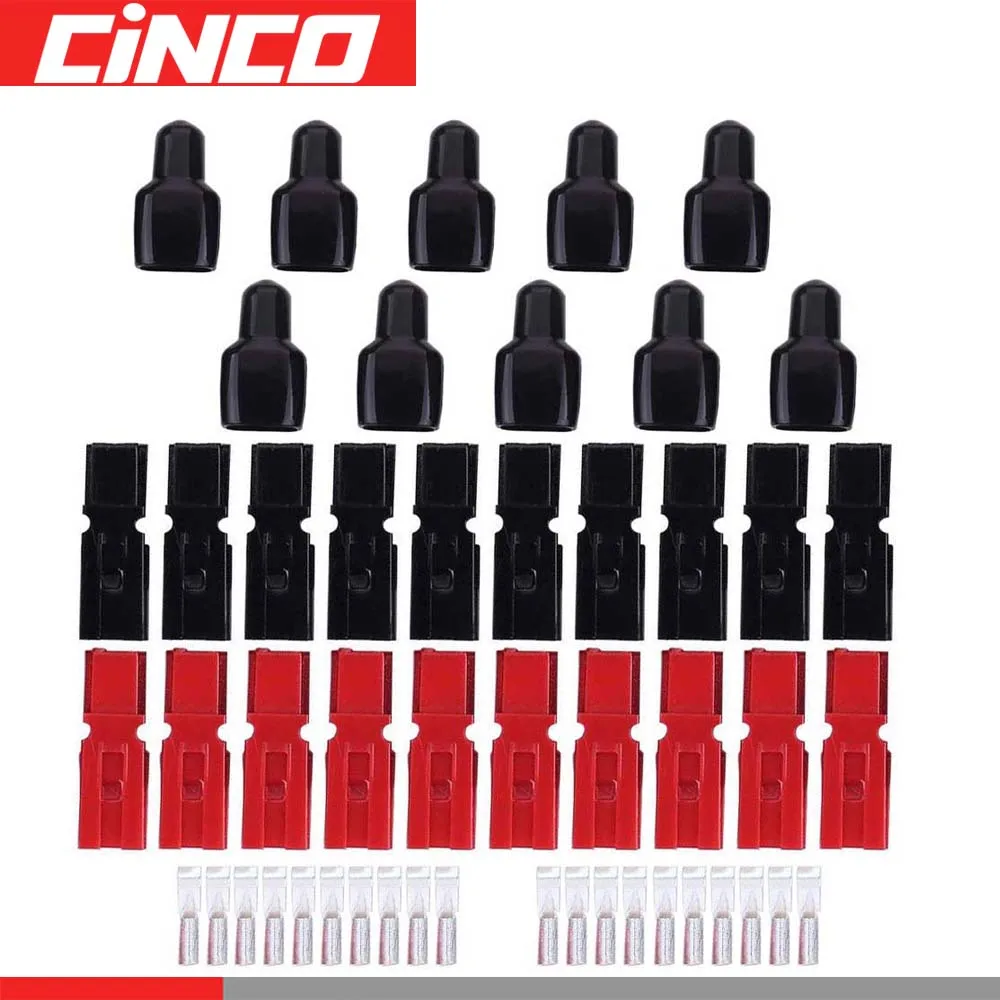

Package included:

• 10pcs x Red Plug 30A

• 10pcs x Black Plug 30A

• 20pcs x Contact

• 10pcs x Black PVC Cover

•

• ---------------------------------------------------------------------------------------------------------------------

• PP45 45A type

•

• Specification:



  Feature:





  • Brand new

  • Contact material: Copper/ plating silver

  • Size: approx. 25*7*7mm

  • Rated current: 15-45A

  • Rated voltage: 600V

  • Contact barrel wire size (AWG): 2/4/6AWG (13.3mm⊃2; - 21.1/33.6mm⊃2;)

  • Average contact resistance: 0.05MΩ

  • Voltage proof: 2200V (DC)

  • Insulation resistance: 500MΩ

  • Avg. unmating force: 5N

  • Flammability rating of housing material: UL94 V- 0

  • Operating temperature range: -20° to 125°

  • Provide simplified assembly and minimize the number of components.

  • Silver or plated copper contacts inside housings that strongly force the contacts together.

  • Contacts feature a sacrificial tip that allows high current circuit interrupt.

  • Prevents accidental cross mating of circuits.

  • Stainless steel springs create a rebuts force between the contacts that holds the connector in the mated position.

  • For signal transmission or the added safety of a premate ground position.

  • Easy to use.

  • Durable in use.

  •

Package included:

10pcs x Red Plug 45A

10pcs x Black Plug 45A

20pcs x Contact

10pcs x Black PVC Cover
