PTZ IP Camera 5MP 8MP 18X ZOOM Mini Speed Dome Security Outdoor IR 50M CCTV Compatible Plug&Play with Hikvision NVR |

5090

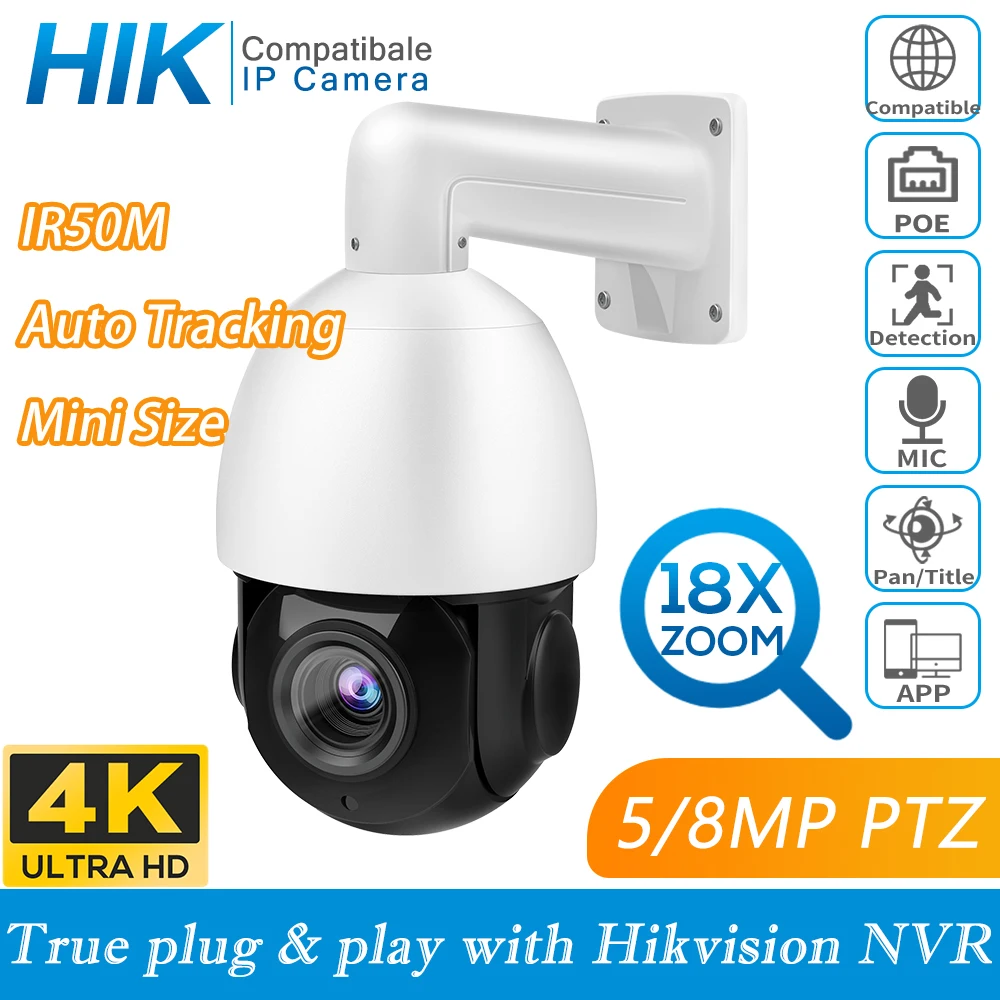

PTZ IP Camera 5MP 8MP 18X ZOOM Mini Speed Dome Security Camera Outdoor IR 50M CCTV Compatible Plug&Play with Hikvision NVR

>APP   ：Danale（IOS,Android）, support download by QR code（   If the camera needs to be added to the NVR   , use the NVR APP management） >Search Tool   ：SADP / AjDevTools（modify the default ip address and password） >Retset Tool：   AjDevTools / Internet Explorer >Default IP   ：192.168.1.110 >Username   ：admin >Password   ：123456 >>> Notice  ：   This camera is   NOT HIKVISION ORIGINAL , is Hikvision Compatible , can plug & play with Hikvision NVR, support most of the other brands NVR that support On-Vif protocol，and the camera can be worked with most of security monitor software, like   Blue Iris, iSpy, VLC   , and so on

 PTZ-45(8)18X-IZ > 1/2.8 8Megapixel CMOS > Powerful 18X optical zoom , Digital Zoom 30X > WDR, Day/Night(ICR), DNR > 5MP:Max.20fps@5MP/30fps@4MP  8MP:Max.20fps@8MP/30fps@6MP > Pan Range:0° to 360°,Tilt Range:-15° to 90° > Support PoE > Compatibility: HIKVISION,ON-VIF > IP66  Upgrade Version:PTZ-45(8)18X-IS

> 1/2.8 Progressive Scan CMOS

> 5MP:2592 x 1944@30fps

   8MP:3840 x 2160@20fps

> HD 4.7-84.6 mm Motorized lens

> Color: 0.01 Lux @(F2.0, AGC ON)

> B/W:0.004 Lux @(F2.0, AGC ON),0 Lux with IR

> H.265+,H.265,H.264

> Support PoE

> BLC/3D DNR/HLC/WDR

> IP66 > human auto tracking > Human Detection / Vehicle Detection > 1 built-in speaker, 1 built-in microphone

1.Camera：

Image Sensor:1/2.8 Progressive Scan CMOS

Min. Illumination: -IZ:Color: 0.1 Lux(F1.6, AGC ON) B/W:0.01 Lux(F1.6, AGC ON) 0 Lux with IR -IS:Color: 0.01 Lux @(F2.0, AGC ON) B/W:0.004 Lux @(F2.0, AGC ON) 0 Lux with IR White Balance:Auto/Manual Shutter Speed: -IZ:50Hz: 1/25 s to 1/30,000 s -IS:1/10 s to 1/10,000 s Day & Night:IR Cut Filter Digital Noise Reduction:2D/3D DNR WDR:Support Privacy Mask: -IZ:3 programmable privacy masks -IS:4 programmable privacy masks 2.Lens： Focal Length:4.7-84.6mm  lens,18 × optical zoom Field of View: -IZ: Horizontal field of view: 96.7° to 31.6° (Wide-Tele) Vertical field of view: 51.1° to 17.7° (Wide-Tele) Diagonal field of view: 115.1° to 36.3° (Wide-Tele) -IS: Horizontal field of view: 51.8° to 5.86° (Wide-Tele) Vertical field of view: 39.1° to 4.4° (Wide-Tele) 3.PTZ： Movement Range (Pan):0° to 360° Movement Range (Tilt):0° to 90° Pan Speed:Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s Tilt Speed:Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s Preset Points: -IZ:255 -IS:220 Guard Tours:3 groups （Preset 98、97、96） Guard Points:Max. 16 points Proportional Zoom:Yes Power-off Memory:Yes Tracking： -IZ:NO -IS:human auto tracking 4.Compression Standard Video Compression: Main stream: H.265+,H.265,H.264 Sub-stream: H.265+,H.265,H.264 H.265 Type:Baseline profile/Main profile/High profile H.265+:Yes 5.Event: Basic Event:Motion Detection Intelligent detection: PTZ-45(8)18X-IZ:NO PTZ-45(8)18X-IS:Human Detection / Vehicle Detection 6.IR: IR Distance:50 m IR LED: -IZ:4PCS -IS:6PCS 7.Image: Max. Resolution:5MP：2592 x 1944 8MP：3840 x 2160 Main Stream： PTZ-4518X-IZ：20fps 5MP(2592x1944),30fps 4MP(2592x1520),25fps 3MP/1080P/720P PTZ-4818X-IZ：20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP/4MP/3MP/1080P/720P PTZ-4518X-IS：30fps @2592 × 1944,20fps@2560 × 1440,25fps@2048 x1520,30fps@/1080P/720P PTZ-4818X-IS：20fps @ 8MP(3840 x 2160)  30fps@ (3072 x2048,2592 x1944,2560 x 1440,2304x1296,1920 x 1080) Sub-Stream： PTZ-45(8)18X-IZ:VGA/640x360/480X360P/CIF 25fps, etc PTZ-4518X-IS：25fps @D1/VGA/640x360/480 x360 /CIF PTZ-4818X-IS：30fps@720 x480 /VGA/640x360/480 x360 /CIF Image Enhancement： -IZ:3D DNR, EIS, Regional Exposure, Regional Focus -IS:BLC/3D DNR/HLC/WDR 8.Network： Network Storage：Support Local storage and NFS,NVR,APP Cloud Storage Protocols：TCP/IP/IPv4/IPv6/HTTP/RTSP/NFS/DHCP/NTP/SMTP/FTP/SSL General Fuction：Privacy Masks,  Horizon/Vertical Flip,Password Reset,Upgrade API：ONVIF (Profile S, Profile G, Profile T) Simultaneous Live View：Up to 20 channels User/Host：3 levels: Administrators, Operators and Users Client：AjDevTool,SADP, Danale App,LMS,iVMS-4200 Web Browser：IE 8+ ,Chrome 57.0+, Firefox 52.0+ 9.Interface： Network Interface：1 RJ45 10 M/100 M Ethernet, PoE Power：12V DCAudio： -IZ:NO-IS:1 built-in speaker, 1 built-in microphoneRS485：N/ASD Card slot：N/A10.General： Web Client Language：7 languages:Chinese, English, Russian, German, Italian,Turkish, 한국어Power：12V DC ≤ 3A , 20W MAX/POE(802.3at)Working Environment：Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%Protection Level：IP66Material：MetalDimension：Package: 185 x 190 x 285 mm (7.3'' x 7.5'' x 11'')Weight：With Package : Approx. 1.96 kg (2.7 lb.)

Plug & Play With Hikvision Private Protocol,Compatible With Third Part NVR

Our camera with Hikvision protocol,support plug & play with original Hikvision NVR,other protocols inside makes it compatible perfectly with most third part NVR,connection without any problem

18x Optical Zoom The camera supports 18X Optical Zoom, Press and hold the screen with both hands to Zoom in/Out

Pan / Tilt
Remote control the camera / Slip from Mobile to see around More

Built-in Microphone and speaker

Human Detection / Vehicle Detection

Human Auto Tracking

H.265+,H.265,H.264,MJPEG

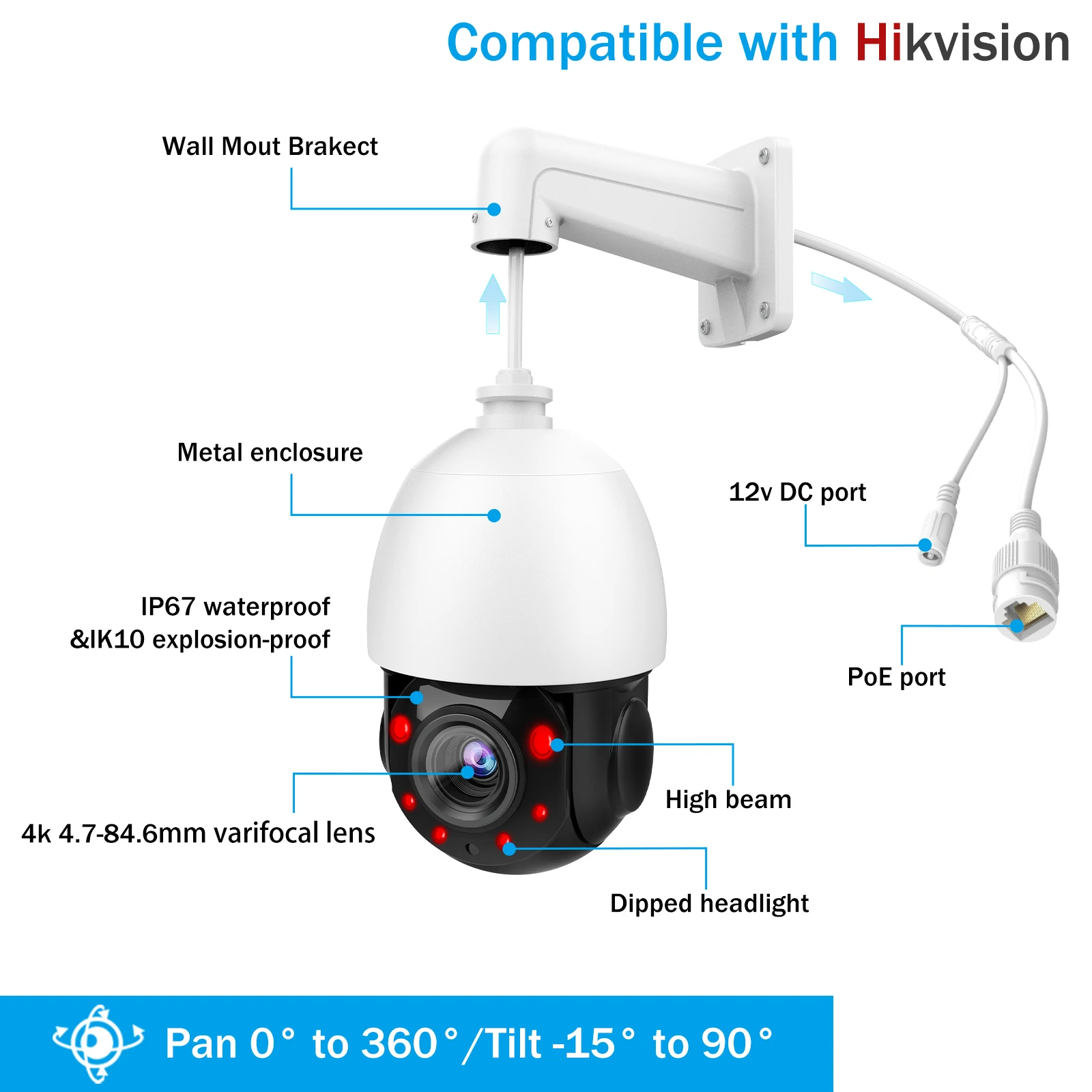

IP66 Waterproof Metal Case

Real images feedback from our valued buyers

1. 5/8MP 18× optical zoom PTZ IPC*1

2. Waterproof accessories *1

3. Screw*1 lot

4. User guide *1

5. power adapter *1

6. bracket *1

Hikvision Tool - SADP

Hikvision Tool - IVMS-4200

Email Alert

P2P

7 Language

Human Detection / Vehicle Detection

---
